POSITAL KCD-BCX3B 17 Series Installation Leaflet

KIT ENCODERS WITH BISS C / SSI INTERFACE - BROADCOM COMPATIBLE
General Information
This leaflet is provided for SSI Kit Encoders with type key KCD-BCX3B-XX17-XXXX-XXX / KCD-
S1X3B-XX17-XXXX-XXX, with X as placeholder. The use of these kit encoders for the production
of industrial rotary encoders is prohibited. Applications in rotary encoders are protected by several
worldwide patents (such as WO 2004/046735 A1) and require licensing.
Safety
- The encoder must be installed by qualified personnel only, exhibiting knowledge in
electronics and mechanics.
- Consider all safety and accident regulations valid for your country.
- Switch off the supply voltage of all devices connected to the encoder before installation.
- Avoid an electrical supply voltage while connecting the encoder.
- Avoid exerting shocks on motor shaft and mounting flange to prevent the encoder from
being mechanically damaged.
- Rotary machine shafts may catch hair and cloths and cause injury.
- Mount the encoder in an ESD-conform fashion, avoid high voltages, e.g. static electricity
discharged from a human body.
- Consider the specifications of the encoder. The device must be operated in the specified
range.

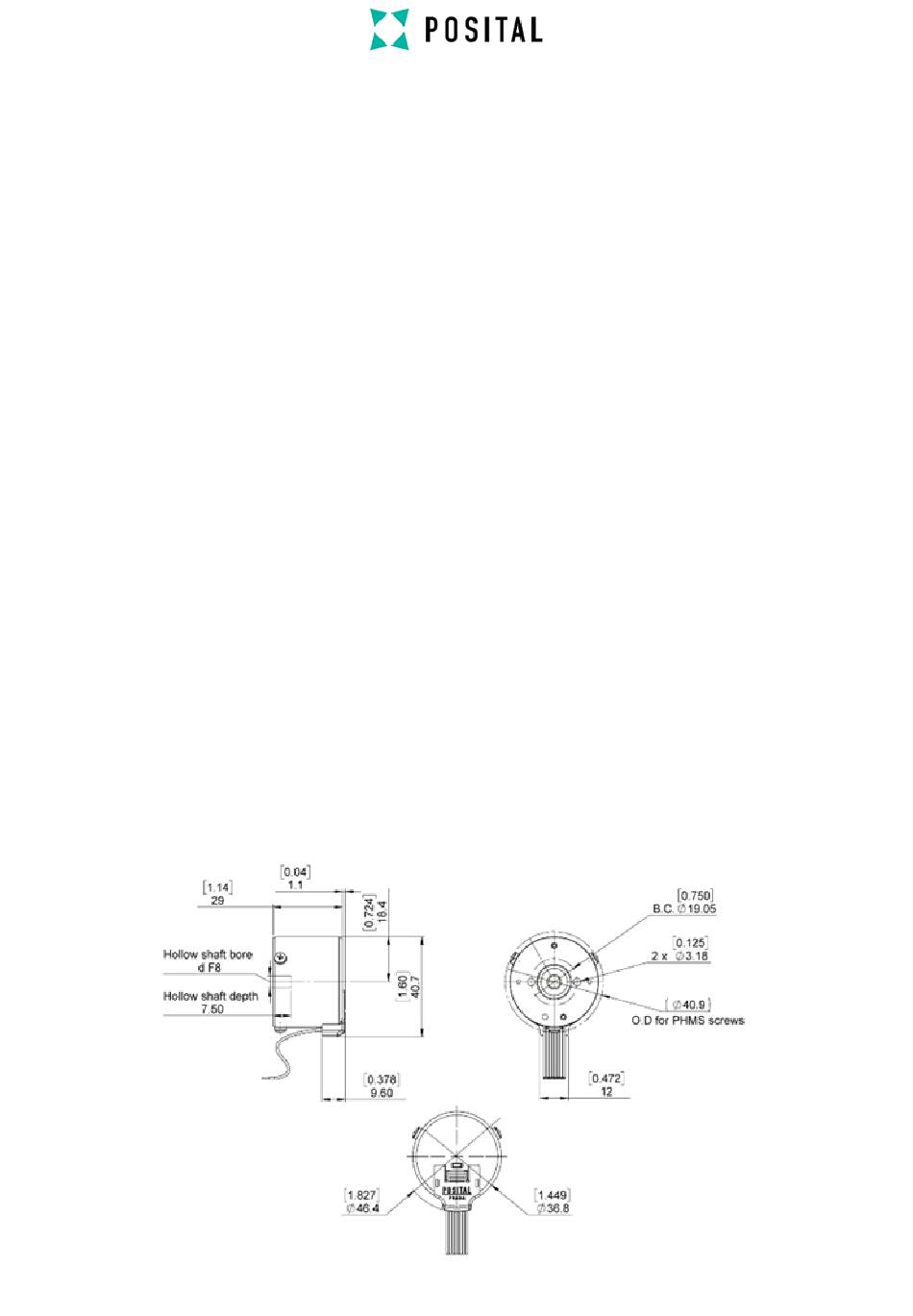

Dimensional Drawings
E5xW-JAQ: d = Ø4mm, Ø5mm, Ø6mm or Ø1/4"
