- Page 1 A Beginner's Guide to DJI Mini 2 SE...
-
Page 2: Table Of Contents
Content About DJI Mini 2 SE ........................4 Product Comparisons ......................4 Tutorials ............................ 8 User Manual ..........................8 Unboxing and Getting Started ....................9 Unboxing and Storage ......................9 Removing and Attaching Gimbal Protector ..............11 Powering on/off the Device ....................13 Replacing the Propellers ....................14 Activating Your Device ....................... - Page 3 Preparing the Aircraft ......................21 Gimbal Calibration .......................22 Preparing the Remote Controller ..................22 DJI Fly App ..........................23 Getting Ready for First Flight ................... 23 Intermediate Operations ......................23 QuickShots ..........................23 Panorama ..........................23 Zooming ..........................24 Live Streaming ........................24 Smart RTH ..........................24...
-

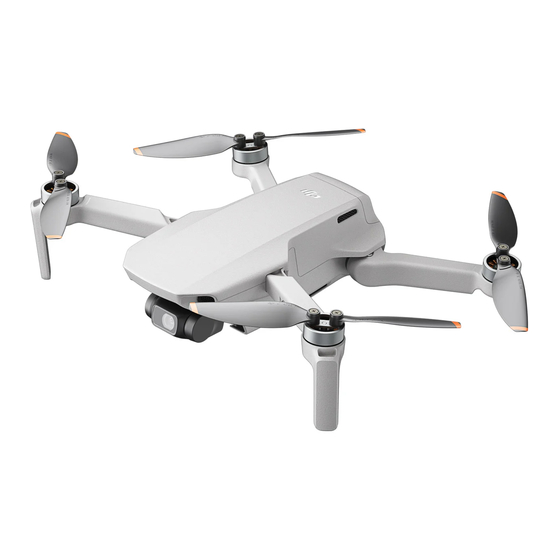

Page 4: About Dji Mini 2 Se
With a max battery life of 31 minutes, DJI Mini 2 SE is level 5 wind resistant and grants more than enough time to compose the perfect shot with Intelligent Flight modes such as QuickShots and Panoramas. - Page 5 N mode: 10 m/s P mode: 8 m/s C mode: 6 m/s C mode: 4 m/s 10 km (FCC) Max Transmission 4 km (FCC) Distance Camera Sensor 1/2.3''CMOS 1/2.3'' CMOS Effective Pixels 12 MP 12 MP 100 Mbps Max Video Bitrate 40 Mbps Video Resolution 2.7K/30p...
- Page 6 Obstacle Avoidance QuickTransfer Not supported Not supported Operating 0°C to 40°C 0°C to 40°C Temperature DJI Mini 2 VS DJI Mini 2 SE: Specifications DJI Mini 2 DJI Mini 2 SE Max Flight Time 31 min (International 31 min Version)
- Page 7 Max Transmission 10 km (FCC) 10 km (FCC) Distance Camera Sensor 1/2.3'' CMOS 1/2.3'' CMOS Effective Pixels 12 MP 12 MP Max Video Bitrate 100 Mbps 100 Mbps 4K/30p Video Resolution 2.7K/30p Video Transmission OcuSync 2.0 OcuSync 2.0 System Max Video Bitrate 8 Mbps 8 Mbps Photo Format...
-
Page 8: Tutorials
* The below videos are applicable to DJI Mini 2 SE and DJI Mini 2, and the user interface may be shown differently due to aircraft firmware or app update. Note that the latest version of the user interface shall prevail. -
Page 9: Unboxing And Getting Started
Consult the content below for a guide to powering on and activating your device. Unboxing and Storage In the Box for Different Combos: · DJI Mini 2 SE... - Page 10 · DJI Mini 2 SE Fly More Combo To better walk you through DJI Mini 2 SE Fly More Combo, we have prepared unboxing and storage videos for you. · Unboxing Watch this video for the more details. 1. RC Cable (Lightning Connector)
-
Page 11: Removing And Attaching Gimbal Protector
· Storage 1. DJI Mini 2 SE 2. DJI RC-N1 Remote Controller 3. Two-Way Charging Hub and Intelligent Flight Battery 4. Propellers, RC Cables, etc. Removing and Attaching Gimbal Protector [Important] Remove the gimbal protector before powering on the drone. - Page 12 · Protect your DJI Mini 2 SE gimbal and camera with this protector, and it is recommended to attach the gimbal protector during daily storage or carrying outdoors.
-
Page 13: Powering On/Off The Device
Powering on/off the Device Press and hold the Power button on the aircraft or remote controller to power on or off the device. · Aircraft · Remote Controller... -
Page 14: Replacing The Propellers
Before mounting the propeller, better confirm the mark on each first. DJI Mini 2 SE has been installed with propellers before leaving the factory. In case of a propeller replacement, please refer to the steps below. - Page 15 · Attaching or Replacing the Propellers Step 1: Place the drone horizontally and make sure that the drone's camera faces forwards; Step 2: Tighten the propellers with a mark onto the motors using the provided screwdriver. Step 3: Tighten the propellers without a mark onto the remaining motors. To learn more about how to replace the propellers, watch the video: Mounting and Removing the Battery...
-
Page 16: Activating Your Device
· Installing the Battery · Removing the Battery Activating Your Device DJI Mini 2 SE requires activation before first use. Follow the on-screen prompts to activate the device using DJI Fly. Step 1: Download the app DJI Fly is required for product activation and connection. -
Page 17: Step 3: Activate For The First Time
Step 4: Updating the Firmware The DJI Mini 2 SE firmware needs to be updated with DJI Fly. Power on the aircraft and remote controller, and make sure that the remote controller is linked to the aircraft. Follow the on-screen instructions to update the firmware and note that Internet is required. -
Page 18: Charging The Device
Choosing a Charger As DJI Mini 2 SE does not come with a charger, you can refer to the following content to select an appropriate charger. · DJI Mini 2 SE supports QC and USB PD fast-charging protocols, and supports up to 29 W of input power. -
Page 19: Charging Method
· If a PD fast charger is currently not available, you can also use a charger with a Type-C port for charging, but the charging speed may be relatively slower. Charging Method · Connecting the aircraft with the battery mounted for charging... -
Page 20: Charging Duration
· Using the Battery Charging Hub · Charging the DJI RC-N1 Remote Controller Charging Duration · Charging the aircraft The battery can be fully charged in about 1 hour and 22 minutes by a charger with a maximum charging power of 18 W. -
Page 21: Battery Maintenance
The battery can be fully charged in about 3 hours and 30 minutes by a charger with a maximum charging power of 10 W. Battery Maintenance 1. If a battery will not be used for 10 days or longer, discharge it to 40%-65% state of charge (until LED 3 lights up or blinks) for storage. -
Page 22: Gimbal Calibration
Gimbal Calibration If the gimbal is skewed or DJI Fly App prompts for gimbal calibration, you can refer to the following pictures. Path: ... ＞ Control ＞ Gimbal Calibration ＞ Auto/Manual Preparing the Remote Controller Step 1: Remove the control sticks from the storage slots at the bottom of the remote controller and screw them into place. -
Page 23: Dji Fly App
DJI Mini 2 SE: Intermediate Operations QuickShots DJI Mini 2 SE supports shooting in Dronie, Rocket, Circle, Helix, and Boomerang modes. The drone records according to the selected shooting mode and automatically generates a short video without pushing control sticks. -
Page 24: Zooming
When using DJI RC-N1 remote controller with your mobile device, you can live stream with your Mini 2 SE via DJI Fly. Enter the camera view and go to 「"..." > Transmission > Enable Livestreaming」 to broadcast the camera view in real time. DJI Mini 2 SE supports livestream platforms and multiple resolutions for you to choose from and connect with your world face-to-face at any time. -
Page 25: Exporting Footage
Store. Storage The DJI Mini 2 SE package does not come with a microSD card. DJI Mini 2 SE supports microSD cards with capabilities of up to 256GB, and we recommend you choose a microSD card that is strictly tested: 16G：... - Page 26 64G： Samsung Pro Endurance Samsung Evo Plus SanDisk Extreme V30 A1 SanDisk Extreme V30 A2 Lexar 633x Lexar 667x Lexar 1000x Lexar High Endurance Toshiba EXCERIA M303 V30 A1 128G： Samsung Pro Plus Samsung Evo Plus SanDisk Extreme V30 A2 SanDisk Extreme Plus V30 A1 SanDisk Extreme Plus V30 A2 Lexar 633x...
-
Page 27: Installing And Removing A Memory Card
SanDisk Extreme V30 A2 Installing and Removing a Memory Card If you have purchased a memory card, you can insert it into the black memory card adapter, which can be attached to the TF slot on PC for further file transfer. Please note that the memory card is inserted into the drone without the card adapter. -
Page 28: Exporting The Photos/Videos
· Removing a Memory Card Exporting the Photos/Videos The raw footage captured by DJI Mini 2 SE is stored in the microSD card. You can connect the drone to the remote controller and mobile device, and download the photos or videos through the app. -
Page 29: Environmental Consideration
The maximum flight height of the aircraft is 500 m. For the maximum flight distance, please refer to the Specifications in the DJI’s official website. Beginner pilots should not be able to fly very far, and please always fly in open areas and keep your drone within line of sight. -
Page 30: Accessories Compatibility
Flying over obstacles with small surface areas (e.g., tree branches). Accessories Compatibility To know more about the compatibility of DJI Mini 2 SE, DJI Mini 2 and DJI Mini SE, please refer to the following table: Accessory... - Page 31 Propeller Holder √ √ √ Shoulder Bag √ √ √ DJI Mini 2 Two-Way Charging Hub √ √ √ DJI Mini 2 360° Propeller Guard √ √ √ DJI 18W USB Charger √ √ √ DJI RC-N1 Control Sticks (Pair) √...
-
Page 32: Dji Care Service Plans
Add DJI Care Refresh 1-Year Plan (DJI Mini 2 SE) Add DJI Care Refresh 2-Year Plan (DJI Mini 2 SE) · [DJI Care Express] A DJI service center will ship you a replacement as soon as they receive your product. DJI will cover shipping costs both ways anytime a product is sent back for replacement service. - Page 33 · [Flyaway Coverage] If a flyaway incident occurs, synchronize flight records and complete DJI Care Flyaway Aircraft Report on the remote controller, and simply pay the corresponding service fee to obtain a replacement product. · [Rewards for Safe Use] If your product has not used replacement service during the term of validity, an additional 1-year extended warranty service will be provided for your product.
