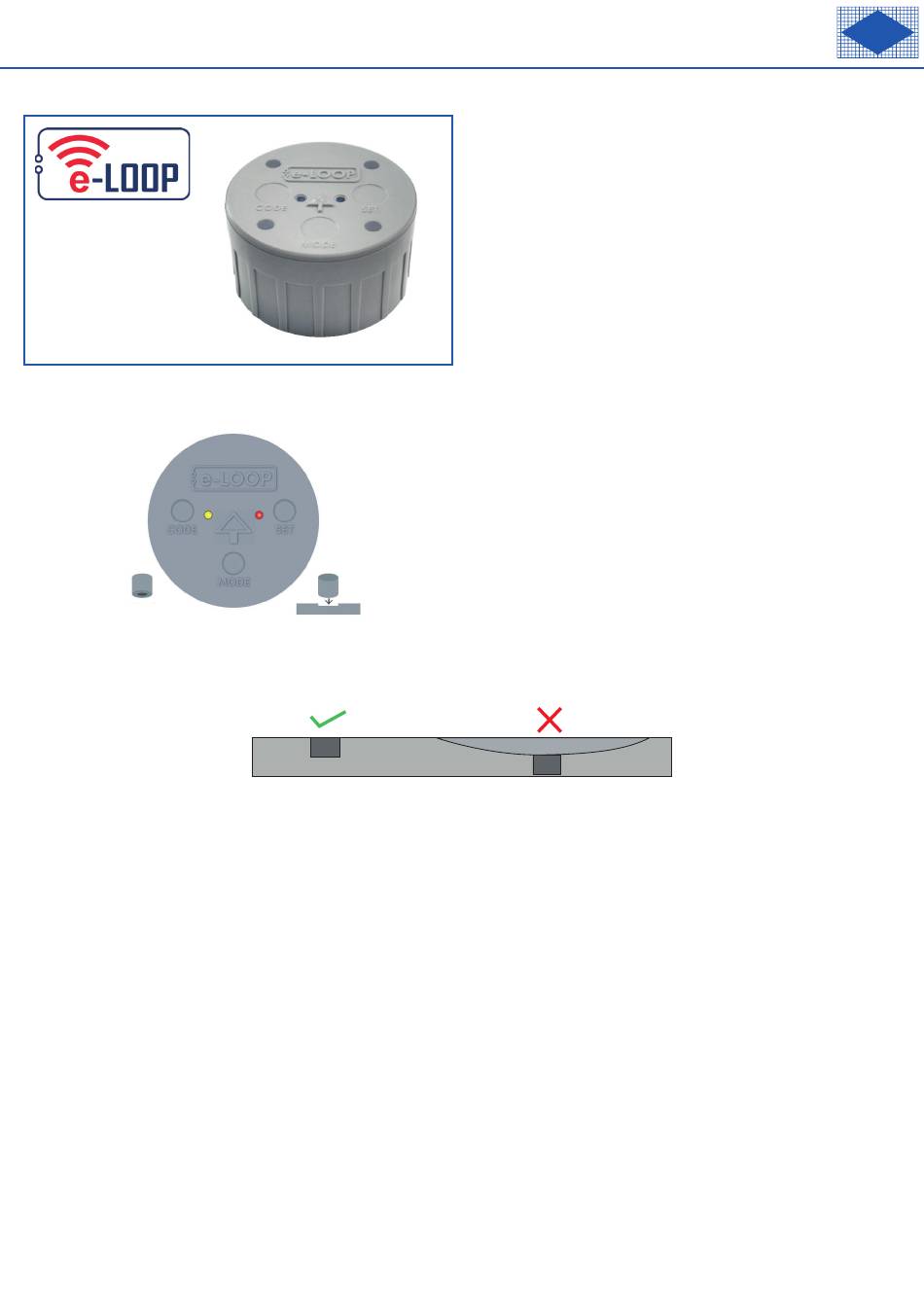

BRUNDLE e-LOOP EL00IG Installation Manual

e-LOOP INGROUND EL00IG-RAD
INSTALLATION GUIDE
SAFETY INSTRUCTIONS
Magnet
INSTALLATION WARNINGS
The e-LOOP should be installed in a location that is always visible. Do not place the e-LOOP in a dip or area where snow or
water can sit. Keep e-LOOP central in the driveway so as it passes directly underneath the vehicles.
DISCLAIMER: Units with the presence feature are NOT to be used as a sole safety device and should be used in conjunction
with standard safety gate practices.
CODING THE e-LOOP WITHOUT MAGNET
1. Power up the e-TRANS-50 and hold the e-Loop within 10cm of the transceiver's antenna
2. Now press and release the CODE button on the e-Trans 50. The yellow and red LEDs will fl ash on the e-Loop, and the blue
LED on the e-TRANS-50 will fl ash 3 times. The systems are now paired
CODING THE e-LOOP WITH MAGNET
1. Power up the e-TRANS-50, then press and release the CODE button. The blue LED on the e-TRANS-50 will light up
2. Now place the magnet on the CODE recess on the e-Loop – the yellow LED will fl ash 3 times, and the blue LED on the
e-Trans 50 will fl ash 3 times. The systems are now paired and you can remove the magnet.
Placing magnet into
button recess
SPECIFICATION
Models: EL00IG & EL00IG-RAD Frequency: 433.39 MHz
Security: 128-bit AES encryption
Range: up to 50 metres
Battery life: 6 - 10 years
Battery type: 14500 mA battery
Transmitting power: <10mW
Before proceeding with the product's installation, check that
all the materials are in good working order and suited to the
intended applications.
Warning! – Exhausted batteries contain polluting substances;
therefore they may not be disposed of together with unsorted
household waste. They must be disposed of separately
according to the regulations locally in force.
