MARANO
®
SYSTEM TOP FIXED WITH HANDRAIL INSTALLATION INSTRUCTIONS

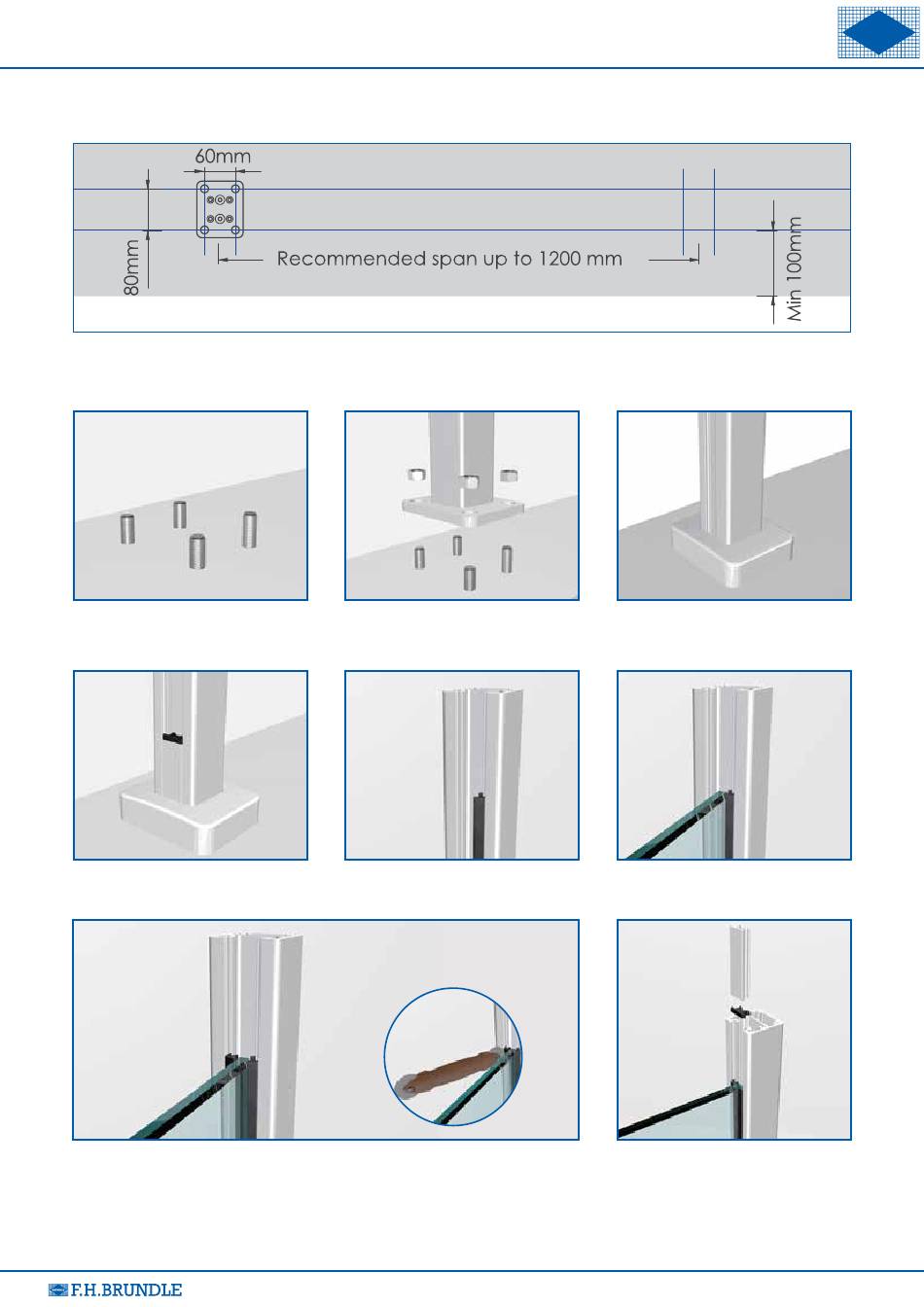

INSTALL POSTS
Posts should be a minimum of 100mm from the edge of the concrete with a recommended span up to 1200mm.
When using standard glass H 930 x 1174mm code: 1855109301174 you will have approximately 13mm between
post centre and glass for ease of installation.
Drill holes & fit the rods.
FITTING GLASS
Fit the bottom infill & plastic
packing block.
Fit glass retaining rubber
(Roller assisted, spray soapy water as lubricant).
EDGE SYSTEM
Tighten nuts to fit the posts.
Fit back rubber in from the side.
Fit the covers.
Slide glass in from the top
between posts.
Fit the plastic packing block &
infill on the top of glass.
BRUNDLE
Page 1
Advertisement
Table of Contents
Summary of Contents for BRUNDLE MARANO EDGE SYSTEM
- Page 1 MARANO EDGE SYSTEM ® BRUNDLE SYSTEM TOP FIXED WITH HANDRAIL INSTALLATION INSTRUCTIONS INSTALL POSTS Posts should be a minimum of 100mm from the edge of the concrete with a recommended span up to 1200mm. When using standard glass H 930 x 1174mm code: 1855109301174 you will have approximately 13mm between post centre and glass for ease of installation.
- Page 2 Whilst every effort has been made to ensure the accuracy of the information supplied. F.H. Brundle cannot be held responsible for any errors or omissions. This product must only be employed for its original intended use. Any other use is wrong and potentially dangerous. Installation must be carried out in full compliance with current regulations.
