Lubeworks 18341002 User Manual

UREA/DEF DC TRANSFER PUMP
USER'S MANUAL
WARNING:
Read carefully and understand all INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result in serious
personal injury. Save these instructions in a safe place and on hand so that they can be
read when required.

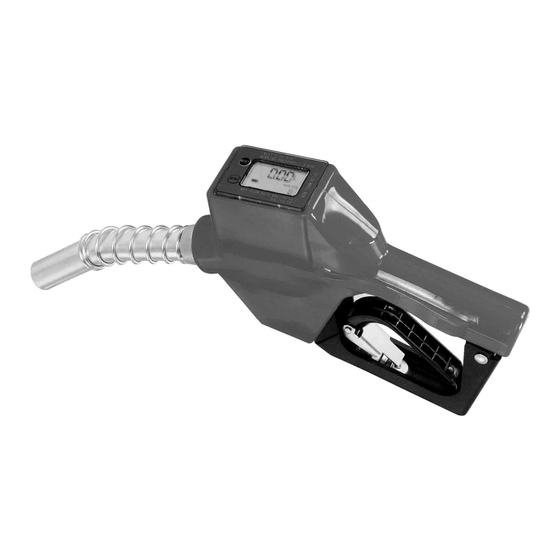

MODEL NUMBER: 18341002
UREA/DEF DC TRANSFER PUMP
USER'S MANUAL
A. INTRODUCTION
A1: Technical Data
The liquids compatible with Auto shut off digital nozzle must be at low viscosity, namely as below:
Model no. 18341002
Flow rate Up to 60LPM/16GPM
Operating 50psi/3.5bar
Pressure (max) -10˚C～ +50˚C/14˚F ～ 122˚F
operating ±1%
Temperature Diesel & kerosene
Use of other fluids may be inaccurate and can damage the nozzle
Not suitable when used in a retail sale of diesel, oil or kerosene!

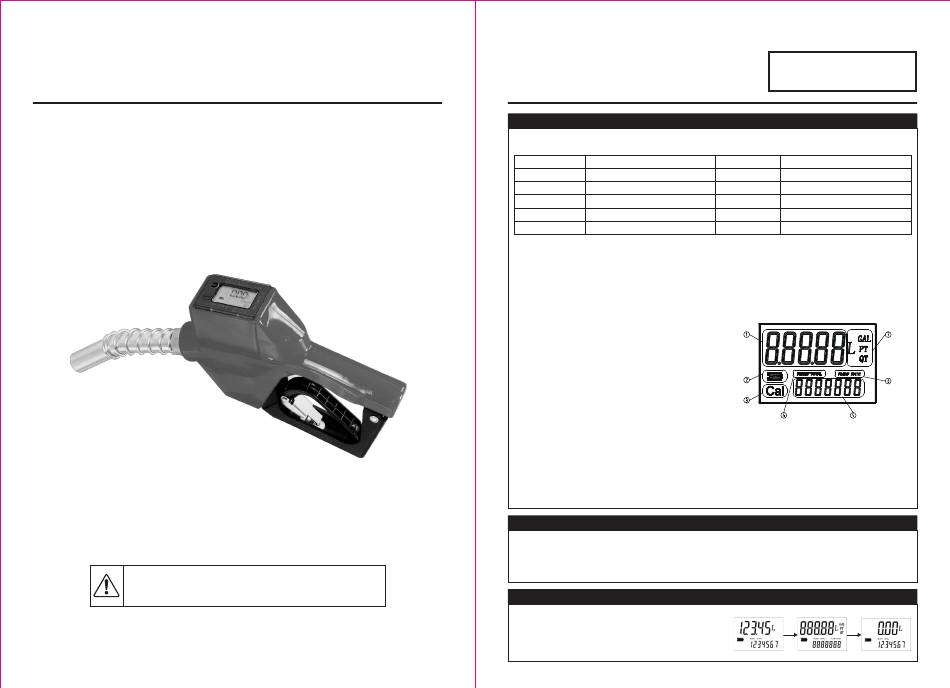

A2: LCD DISPLAY
The "LCD" of the meter features two numerical Registers and various indications displayed to the user only when the applicable function
so requires
KEY
① Partial register (5 figures with moving comma from 0.1 to 99999) Indicating the volume dispensed since the reset button was last
pressed.
② Indication of battery charge
③ Indication of calibration mode
④ Indication of resetting present total to Zero
⑤ Total register
⑥ Indication of flow rate mode
⑦ Indication of unit of measurement of partial:
L= Litres
GAL = Gallons
PT = Pints
QT = Quarts
A3: USER BUTTONS
The turbine digital meter features two buttons (MENU and RESET) which individually perform two main functions and together, other
secondary functions.
The main functions performed are:
For the reset key, resetting the partial Register and reset table total (reset total)
For the menu key, entering instrument calibration mode.
Used together, the two keys permit entering configuration mode
A4: BATTERY REPLACEMENT
When replacing the battery, please open the cover, remove the plug and replace the battery.
B. INSTALLATION
This nozzle is designed to dispensing diesel fuel under 0.5~3.5bar/7~50psi pressure system.
B1: Connect the nozzle directly with the delivery hose. Please be ensured the thread is sealed.
B2: Turn on the dispenser, open the trigger of nozzle to start dispensing. For first time using, it is necessary to turn the trigger on and off
2-3 times to discharge the air inside.
B3: After dispensing, turn off the nozzle and take back to nozzle holder.
C. METER SETTING
C1: BUTTON USAGE, CALIBRATION AND MEASUREMENT UNIT CHANGE
• Reset the present total (See Fig. 2)
1) When the meter is on standby, press the RESET key.
2) The display shows all the segments.
3) The meter resets the present total already.
MODEL NUMBER
18341002
Accuracy 5-Digit present total (0.01～999.99)
Fluid type 7-Digit non-resettable total (1～9999999)
Screen Unit (Liter, Gallon, Pint, Quart)
Inlet and outlet 3/4"
Weight 1.3Kgs/2.7 lbs
Power supply 2×AAA
1 of 5
