Lubeworks 171303 Manual

Heavy duty oil pump
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

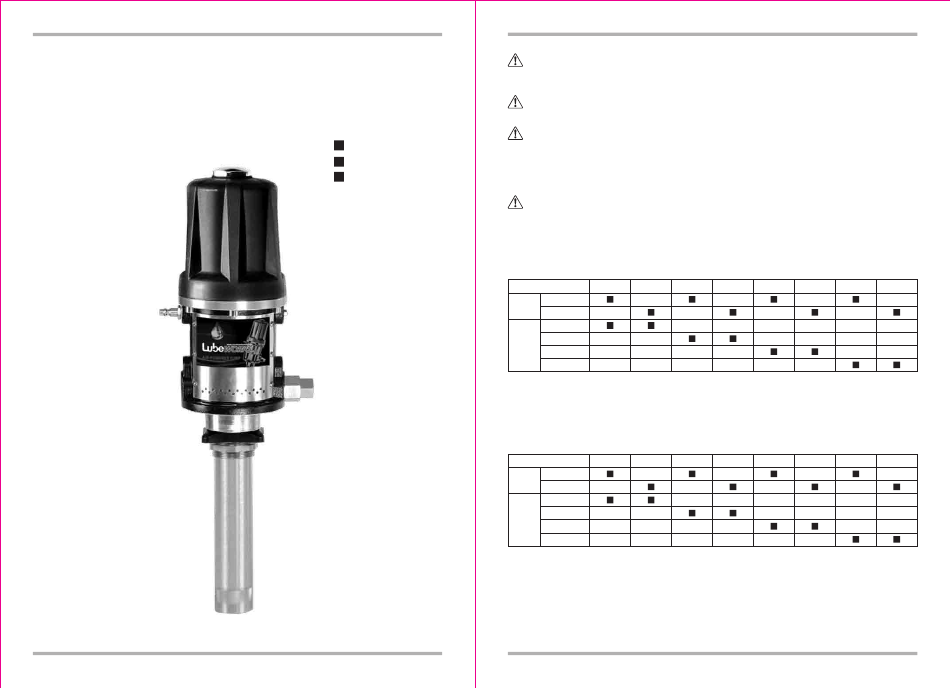

HEAVY DUTY OIL PUMP
MANUAL
WARNING SYMBOL
• This manual contains important warnings and information.
• Read and keep for reference.
CAUTION SYMBOL
This symbol alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION
171303
This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow
the instructions.
171305
171309
1 Summarize
1.1 Mainly propose
These pumps mainly provide power during oil transportation. Any other use maybe cause
un-safety problems and parts damage, fire explosion, and oil spark even serious fluid injection.
1.2 Description
1.2.1 Model: 3:1 Pneumatic Oil Pump
1.2.1.1 Specification: 36bar（Max. fluid working pressure）
1.2.1.2 Configuration:
Sheet 1: 3:1 Pneumatic Oil Pump
Air inlet
Length
of
suction
tube
Remark: with 3/4"M to 1/2"F reducer.
1.2.1.3 Max. free flow rate: 45L/min.
1.2.2 Model: 5:1 Pneumatic oil pump
1.2.2.1 Specification: 60bar（Max. fluid working pressure）
1.2.2.2 Configuration:
Sheet 2: 5:1 Pneumatic oil pump
Air inlet
Length
of
suction
tube
Remark: with 3/4"M to 1/2"F reducer.
1.2.2.3 Max. free flow rate: 40L/min.
REV 01/12/15
Model
17130301 17130303 17130331 17130333 17130361 17130363 17130371 17130373
1/4"quick plug
1/4"NPT
270mm
730mm
940mm
1190mm
17130501 17130503 17130531 17130533 17130561 17130563 17130571 17130573
Model
1/4"quick plug
1/4"NPT
270mm
730mm
940mm
1190mm
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 171303 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lubeworks 171303

Summary of Contents for Lubeworks 171303

  • Page 1 This symbol alerts you to the possibility of serious injury or death if you do not follow the instructions. CAUTION 171303 This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow the instructions.

  • Page 2: Safety Instructions

    1.3.2 Oil pump misuse hazard: Oil pump misuse can cause the to rupture, malfunction • Read all instruction manuals, tags, and labels before operating the equipment. Model Series 171303 Series 171305 Series 171309 Series • Use the equipment only for its intended purpose. If you are not sure, call your distributor.

  • Page 3: Troubleshooting

    3.2 Installation 3.3.2.3 Remind: Pump can not operate with empty load. Or the speed will be very fast which will 3.2.1 Standard installation self-damage. 1: cut-off valve If acceleration is too fast or running very slow, Should stop operation and check that if there is 2: Filter enough oil in the barrel.
  • Page 4 Exploded and Parts List for 171303 Series Part No. Description Part No. Description Air motor cover O-ring Piston Spring piece Bracket Rope rocker O-ring Shaft Rope shaft O-ring Spring Base O-ring O-ring Jar body 44 37 Washer Right silencer 4 33 32...
  • Page 5 Exploded and Parts List for 171305 & 171309 Series Part No. Description Part No. Description Air motor cover Piston Spring piece O-ring Bracket Rope rocker Rope shaft Shaft Spring Steel ball O-ring Base Jar body O-ring Washer Steel wire Right silencer U-seal 2 : 5 Sponge...

  • Page 6: Proceed As Follows

    Wall Installed Part List Part No. Description Q'ty Oil Pump Bolt Wall bracket Pump adapter Flexible suction hose Bung adapter Rigid suction tube Spring circlip Ball Valve seat Filter Washer Washer Suction hose adapter Proceed As Follows 1. Secure the bracket to the wall using the dowels at about 1200mm height appropriate for the tank’s dimensions.
