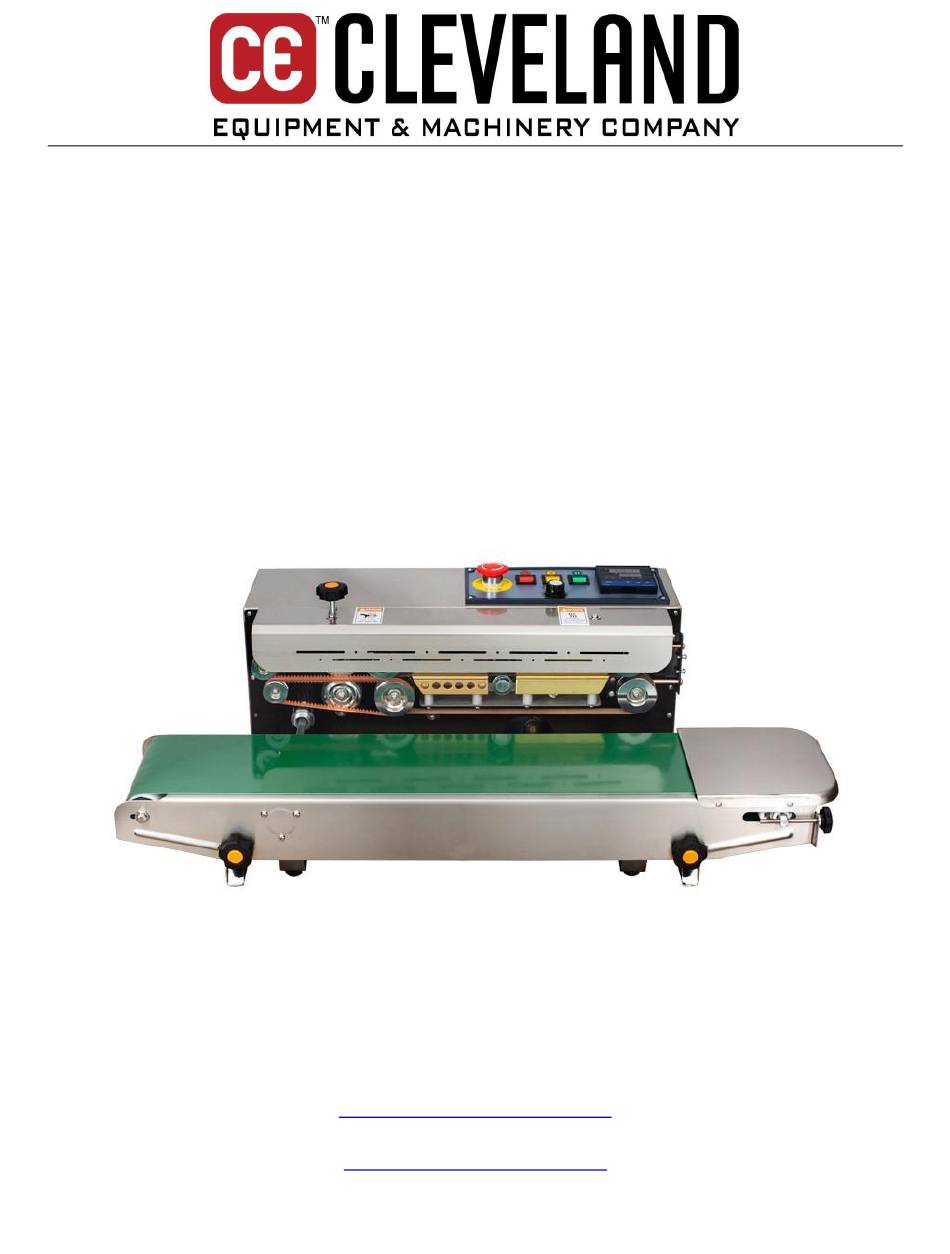

- Page 1 CE-900-VS Continuous Band Sealer Operation Manual 866-888-6327 sales@clevelandequipment.com 4403 Delp Street • Memphis, TN 38118 www.clevelandequipment.com...
-
Page 2: Table Of Contents
CE-900-VS Continuous Band Sealer Contents I. Preface ..................... 2 II. Function Summary ................... 3 III. Main Technical Parameters ..............4 IV. Main Structure and Working Principle & Adjustment ......5 1. Main Structure outside drawing (Figure 1) ..........5 2. Working Principle ..................6 A. -
Page 3: Preface
CE-900-VS Continuous Band Sealer I. Preface Thanks for choosing CE-900-VS Continuous Band Sealer which research and development, manufactured by our company. CE-900-VS Continuous Band Sealer is our new type sealing machine, which is newly designed based on many years experience of manufacturing sealing machine and the newest market demand. -
Page 4: Function Summary
CE-900-VS Continuous Band Sealer II. Function Summary This Sealer is suitable for sealing and making various plastic film bags, it widely used in the fields of food, medicine, chemical industry, daily expenses and so on. Because of this sealer adopts electronic constant temperature control and infinite adjustable-speed drive mechanism, it can seal all kinds of different materials of plastic bags. -
Page 5: Main Technical Parameters
CE-900-VS Continuous Band Sealer III. Main Technical Parameters Power supply 110/220V/50～60Hz Driving Power: (50W) Power 500W Heat seal power: 220Wx2 Sealing speed（m/min） 0～12 Sealing Width（mm） 6～12 Temperature Range 0～300 ℃ Single layer film Max thickness (mm) ≤0.08 ≤3 Conveyor max loading weight（Kg）... -
Page 6: Main Structure And Working Principle & Adjustment
CE-900-VS Continuous Band Sealer Main Structure and Working Principle & Adjustment 1. Main Structure outside drawing（Figure 1） 1. Conveyor part 2. Machine frame and sealing parts 3. Control parts Page 5... -
Page 7: Working Principle
CE-900-VS Continuous Band Sealer 2. Working Principle After being connected to the power supply, each device begins to work, the electro-thermal parts generate heat to heat up bottom and up heating block rapidly. When the temperature reaches at the setting temperature of temperature controller,... -
Page 8: Adjustment Method Of Conveyor Part (Figure 2)
CE-900-VS Continuous Band Sealer 3. Adjustment Methods of Each Component A. Adjustment method of Conveyor part （Figure 2） ①. Adjusting fasten knob ②. foot stool ③. Fasten knob ④. Conveyor belt tension wheel adjustment screw Page 7... - Page 9 CE-900-VS Continuous Band Sealer Conveyor belt tension adjustment: when the conveyor belt is too loose or too tight, adjusting conveyor belt tension wheel adjustment screw ④ of two sides (right rotation is to be tight, left rotation is to be loose), until the tightness of conveyor belt is appropriate.
-
Page 10: Adjustment Method Of Sealing Parts (Figure 3)
CE-900-VS Continuous Band Sealer B. Adjustment method of sealing parts（Figure 3） ①. Adjustment screw ②. Cooling block ③. Lifting piece ④. Heating block Page 9... - Page 11 CE-900-VS Continuous Band Sealer Distance adjustment of Up and down heating block & cooling block: because of different sealing material and thickness, each kind of product needs to adjust the distance between heating block and cooling bock. The method is described as follows: right-handed rotation adjustment screw ①...
-
Page 12: Driven Belt Roller Adjusting Blocks (Figure 4)
CE-900-VS Continuous Band Sealer C. Driven belt roller adjusting blocks (Figure 4) ①. Spring ②. driven belt wheel seat ③. driven wheel seat ④. Adjusting screw ⑤. Adjusting screw If the sealing belts have phenomenon of off tracking, it can be adjusted using the adjusting screw of driven belt wheel seat ②. -
Page 13: Panel Function Declaration
CE-900-VS Continuous Band Sealer V. Panel Function Declaration 1. Urgent stop switch: under emergency status, disconnect the power supply. 2. Power switch: Control the whole machine on or off 3. Heating switch: control heating tube of heating block on or off 4. - Page 14 CE-900-VS Continuous Band Sealer If you order our band sealer with intelligent temperature controller, intelligent temperature controller setting methods: A．Upper number display (red) is real temperature; bottom number display (green) is setting temperature B． Press the button SET in lower left, at this moment the bottom number (green) turns into flashing.
-
Page 15: Direction For Using
CE-900-VS Continuous Band Sealer VI. Direction for Using 1. This machine has finished debugging before leave the factory, to make the machine working under the best condition, giving full play to the efficiency and service life; it must be operated and maintained by specialist worker. The operator must be... - Page 16 CE-900-VS Continuous Band Sealer 5. Connecting with power supply and turn on the power switch, after power indicator light on, adjusting Speed adjustment knob to make all transmission parts synchronous running. 6. Fine tuning the embossing wheel screw to make the embossing wheel running, until adjust into suitable pressure, fixing the limit screw.
- Page 17 CE-900-VS Continuous Band Sealer To enhance the useful life of sealing belts, first to adjust the temperature into zero before turning off the machine. Then turn on the cooling fan, the sealing belts should be normal running at the same time, cannot stop. After a period, to ensure the temperature of the heating block is under 80 ℃, then can turn off the cooling fan and...
-
Page 18: Electrical Schematic Diagram
CE-900-VS Continuous Band Sealer VII. Electrical Schematic Diagram Page 17... -
Page 19: Parts Exploded Views & Names
CE-900-VS Continuous Band Sealer VIII. Parts Exploded Views & Names Page 18... - Page 20 CE-900-VS Continuous Band Sealer Page 19...
- Page 21 CE-900-VS Continuous Band Sealer Parts Name Specification Remark rubber foot panel switch（yellow） switch（red） speed adjusting knob small switch（green） temperature controller installation hole：67x67 Protective cover back cover plate machine body Fuse seat 15A125VAC power socket (round type) driving roller head cover...
- Page 22 CE-900-VS Continuous Band Sealer Parts Name Specification Remark bearing block (big) conveyor belt perimeter=1510mm conveyor stand conveyor platen driven roller roller adjusting screw fasten knob conveyor stand adjustment seat support horizontal rail support horizontal bar driven roller spindle conveyor stand adjustment...
- Page 23 CE-900-VS Continuous Band Sealer Parts Name Specification Remark Driven wheel driven wheel seat spring block spring for hole use φ32 deep groove ball bearing 6201ZZ down driven wheel seat(up) heating head adjustment spring down driven wheel seat(down) lifting piece Heating block(up)
- Page 24 CE-900-VS Continuous Band Sealer Parts Name Specification Remark embossing wheel rubber wheel transmission bearing seat deep groove ball spring 6201ZZ bearing seat space bush driving wheel spindle Heating head holder(up) block spring for hole use φ19 deep groove ball spring...
- Page 25 CE-900-VS Continuous Band Sealer Parts Name Specification Remark embossing wheel seat spring snap spring for hole φ42 deep groove ball bearing 6004ZZ carrier gear convert gear snap spring for hole φ32 plastic junction plate plastic junction plate(up) rubber wheel holder...
- Page 26 CE-900-VS Continuous Band Sealer Parts Name Specification Remark deep groove ball bearing 6201ZZ worm gear machine body motor seat bearing middle cover driving gear worm deep groove ball bearing worm gear box small cover Page 25...
-
Page 27: Trouble Shooting Of Common Fault
CE-900-VS Continuous Band Sealer IX. Trouble Shooting of Common Fault Faults Causes Troubleshooting Driving wheel and driven wheel adjust the two screw of driven wheel, until off tracking of sealing are unparallel they are not off tracking 1. Sealing belts is too tight 1. - Page 28 CE-900-VS Continuous Band Sealer Faults Causes Troubleshooting sealing parts extend too long. 2. After adjust the gap, adjust limit screw Off tracking of conveyor Driving roller shaft and driven Adjust the driven roller shaft two conveyor belts roller shaft are not parallel...
-
Page 29: Maintenance
CE-900-VS Continuous Band Sealer X. Maintenance Keep the machine body clean and tidy, electrical parts should keep dry, ventilation Before repairing the machine, must turn off the power. When start to repair, it should be repaired by professional or informed our factory for help. -
Page 30: Standard Accessories
CE-900-VS Continuous Band Sealer XI. Standard Accessories Coding Model Parts name Specification Unit feed port feed port Sealing belt 750*15 leading belt perimeter 420 Fuse φ5*20/3A Manual book 05980004 FR900 Test pen 3inch screw driver cross (4inch)(6*100)(big) Letter 2*4*15(box) Power cable 3*0.3*1.5 meter...
