Lem Elettronica MSP3-5G Installation And Startup

MSP3-5G
Programmable TV terrestrial mast multiband amplifier
with Apple or Android smartphones
Installation and start-up

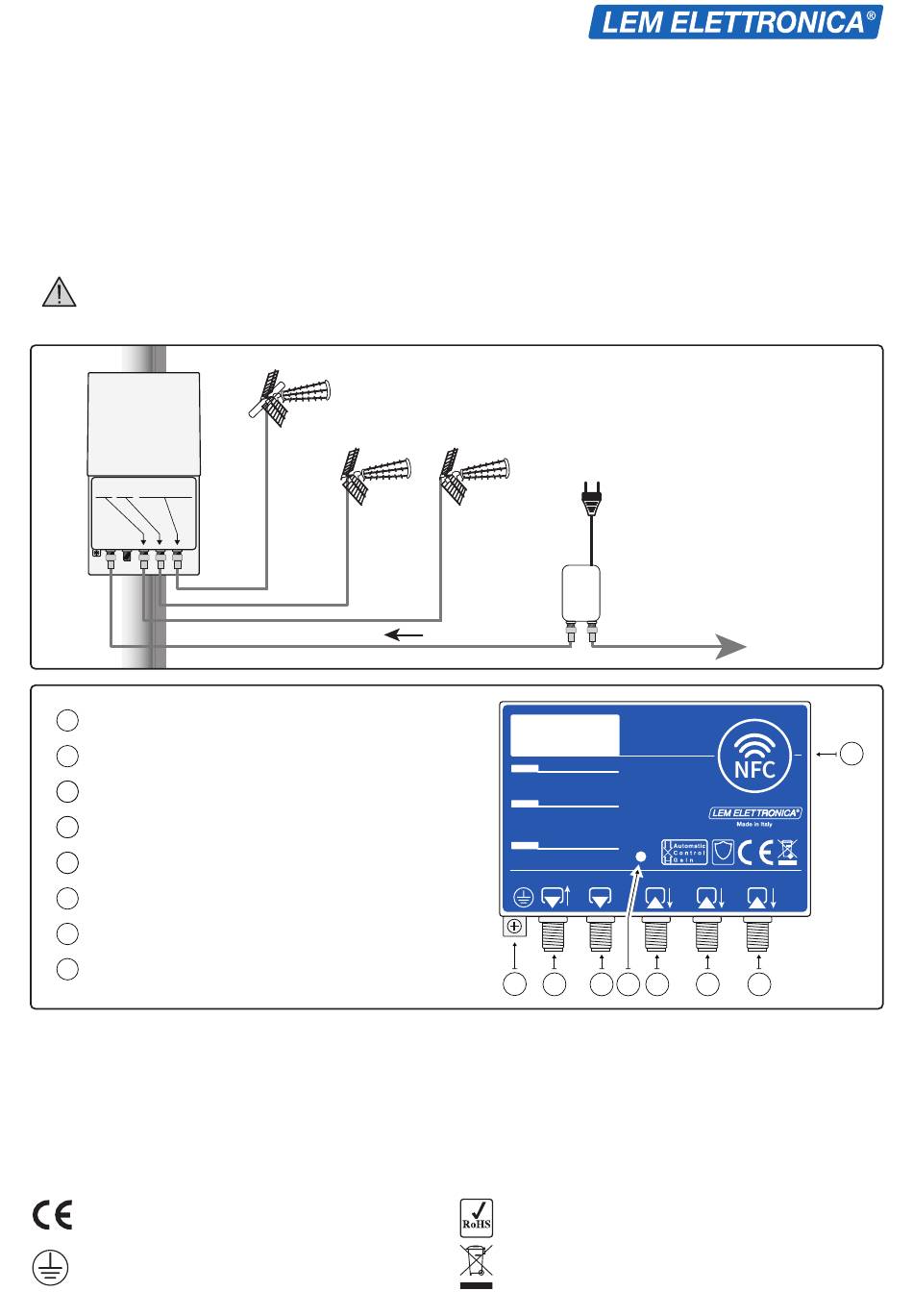

1 Connect the TV aerial(s) to the amplifier's inputs
2 Connect the MATV output
3 Power up the amplifier connecting to MATV output a proper coaxial power supply
Antenna remote power error
If LED POWER remains fixed red there is an antenna input short circuit or over current. Please check the input(s) with the
remote power supply activated and remove the issue.

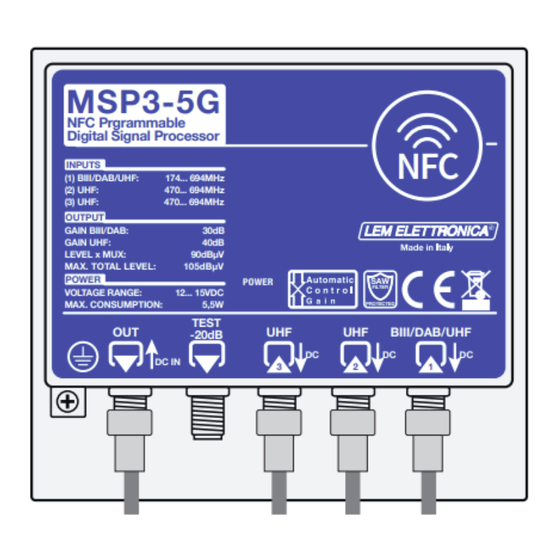

MSP3-5G
UHF UHF BIII/DAB/UHF
MATV
OUT
NFC antenna
1
2 (1) BIII / DAB / UHF(E21... E48) aerial input
(2) UHF (E21... E48) aerial input
1 3
(3) UHF (E21... E48) aerial input
1 4
1 5 Multi-function LED
6 Test ouput -20dB
MATV output / coaxial remote power 12...15VDC
7
Grounding clamp
8
SAFETY INSTRUCTIONS
1. Ambient temperature should not be higher than 45° C.
2. Install and fix safely the unit on a vertical wall or mast with its own rainproof case
3. Connect the power adapter cord to a detachable power supply socket.
4. Do not place the equipment in a place where it can suffer vibrations or shocks.
5. Only use attachments/accessories specified by the manufacturer.
DESCRIPTION OF SYMBOLS AND ELECTRICAL SAFETY
The equipment complies with the CE requirements
Equipment grounding terminal
BIII/DAB/UHF
UHF
12VDC
2011/65 EU
Satellite and TV reception equipment
UHF
PSU
MSP3-5G
NFC Prgrammable
Digital Signal Processor
INPUTS
(1) BIII/DAB/UHF: 174... 694MHz
(2) UHF: 470... 694MHz
(3) UHF: 470... 694MHz
OUTPUT
GAIN BIII/DAB: 30dB
GAIN UHF: 40dB
LEVEL x MUX: 90dBµV
MAX. TOTAL LEVEL: 105dBµV
POWER
POWER
VOLTAGE RANGE: 12... 15VDC
MAX. CONSUMPTION: 5,5W
TEST
OUT
-20dB
DC IN
8
7 6 5
The equipment is compliant with RoHS 2011/65EU
Dispose according to local authorities recycling processes
MATV
SAW
FILTER
PROTECTED
UHF UHF BIII/DAB/UHF
DC DC DC
3 2 1
4 3 2
1
