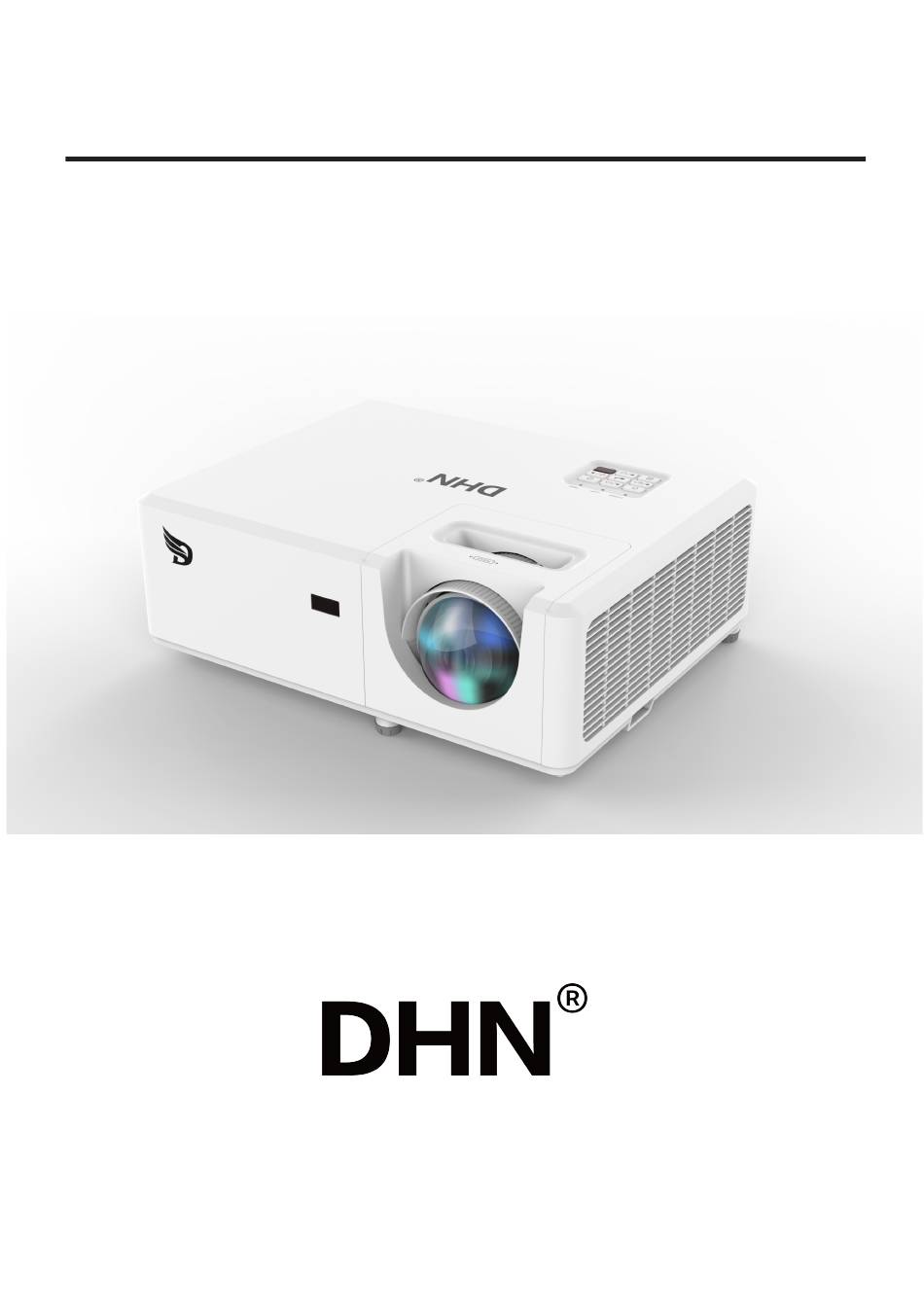

- Page 1 User manual for DHN DW410ST laser projector Diheng Mercury series projectors are suitable -Beforeusingthisproduct,pleasecarefullyread the important safety instructions in the blue section of this manual.
-
Page 2: Table Of Contents
Security ......................3 Important safety precautions ........................Cleaning lens ..............................Laser safety information ..........................Copyright ..............................Disclaimer ..............................Trademark ..............................WEEE ................................Introduction ....................... 8 Packaging Overview ............................ Standard Attachment ........................... Optional Attachment ............................ Product Overview ............................Connection ..............................Keyboard ..............................Installation of projector and precautions .................... -
Page 3: Security
The lightning symbol with arrows inside the equilateral triangle is intended to alert users that there is an uninsulated "dangerous voltage" inside the product, which poses a risk of electric shock to personnel. The exclamation mark symbol inside the equilateral triangle is intended to alert users to pay attention to the important operation and maintenance (repair) instructions marked on the equipment. - Page 4 • Do not open or disassemble this projector to avoid electric shock. • Do not attempt to self repair this machine. There may be dangerous voltage or other hazards when opening or removing the casing. Before sending this machine for repair, please contact our customer service first. •...
-
Page 5: Cleaning Lens
Cleaning the len • Before cleaning the lens, be sure to turn off the projector and unplug the power plug to allow it to cool down completely. • Use a compressed air cylinder to remove dust. • Gently wipe the lens with a specialized cloth for cleaning. Do not touch the lens with your fingers. •... -
Page 6: Laser Safety Information
Laser safety information • This product is classified as Class 1 laser product - Group 2 risk, with reference to IEC 60825-1:2014 standard • Like any bright light source, do not look directly at the beam of light • 3R class laser products - avoid direct eye exposure •... -
Page 7: Copyright
Copyright This publication (including all photos, illustrations, and software) is protected by international copyright law and all rights are reserved. Without the written consent of the author, this manual and any materials contained therein may not be copied. © All rights reserved two thousand and twenty-on Disclaimers The information in this manual is subject to change without prior notice. -
Page 8: Introduction
Brief introduction Packaging Overvie Carefully open the packaging and check if the standard accessories listed below are complete. Due to differences in models, specifications, and purchasing regions, some optional accessories may not be provided. Please confirm your purchase location. Some attachments may vary depending on the region. The warranty card is only available in certain specific regions. -
Page 9: Product Overview
Brief introduction Product Overvie 1080p/WXGA Short Projection Model Attention: Do not block the air intake and exhaust ports of the projector. When using projectors in enclosed spaces, leave at least 30 cm of space around the air intake and exhaust ports. numbe proje proje... -
Page 10: Connection
Brief introduction Connect numb proje numbe proje HDMI 2 interface USB power output interface Micro USB interface RJ45 interface Power socket HDMI 1 interface VGA input interface KensingtonTM Lock Port RS-232 interfac... -
Page 11: Keyboard
Brief introduction keyboar Power Temperature Project Project Power LED Four way selection key Confirm Trapezoidal correction Menu LED lights Signal source Temperature LED Information Power supply Resynchronize Resynchronize... -
Page 12: Installation Of Projector And Precautions
rief introduction Installing a projecto According to the design, this projector has four installation positions. You can choose the installation location based on the room layout or personal preferences. The considerations include screen size and location, power outlet location, and the position and distance between the projector and equipment. Desktop Hoisting projection... - Page 13 Placement and installation Projector installation precautions • 360 degree operation in any direction Ensure that the hot air discharged from the exhaust port does not return to the intake port. • When using a projector in a confined space, ensure that the ambient air temperature in the confined space does not exceed the operating •...
-
Page 14: Adjusting Projection Images
Placement and installatio Adjusting projected images Image height This projector is equipped with lifting feet for adjusting the height of the image. Find the adjustable feet under the projector to adjust the height of the projector. Rotate the adjustable feet clockwise or counterclockwise to raise or lower the projector. Tilt adjustment support feet Tilt... -
Page 15: Remote Control Settings
Placement and installation Effective range The infrared (IR) remote control sensor is located on the top and front of the projector. To ensure proper operation of the remote control, it should be located within a 60 degree angle range perpendicular to the projector remote sensor. The distance between the remote control and the sensor should not exceed 7 meters (22 feet). -
Page 16: Using A Projector
Using a projector Turn on /off projectorpower Power on Safely connect the power cord and signal/input source cable. After connection, the power LED turns red. Press the button on the projector keyboard or the power button on the remote control to turn on the projector. The startup screen displays for about 10 seconds, and the power LED flashes blue. -
Page 17: Select Input Source
Select input source Turn on the power of the connected input source you want to display on the screen (such as a computer, laptop, video player, etc.). The projector will automatically detect the signal source projection display. If multiple input sources are connected, press the signal source button on the projector keyboard or the signal source button on the remote control to select the desired input. -
Page 18: Menu Navigation And Functions
Menu navigation and function This projector has a Multilingual Screen Display (OSD) menu that allows you to adjust images and change multiple settings. The projector will automatically detect the input source. To open the OSD menu, press the button on the projector keyboard or the menu button on the remote control. When OSD is displayed, use the menu keys to select items from the main menu. -
Page 19: Display Settings Menu
Additional information Display Settings Menu display mode For many types of images, projectors have many optimized factory presets. • Brightness: A mode that emphasizes brightness. • Standard: A mode that achieves the best balance between brightness and color reproduction. • Vivid: A pattern that emphasizes color. -
Page 20: Screen Settings Menu
Additional information Settings menu Set setting • Language: Select the operating language of the projector • Automatic shutdown (minutes): Set the countdown interval (in minutes). When the projector does not receive any signal, the countdown starts immediately. At the end of the countdown, the projector will automatically shut down. When the countdown is set to "0", the automatic shutdown will be disabled. -
Page 21: Additional Information
Additional information Volume resolution simulation Module native resolution: 1280x800@60Hz (WXGA); 1920x1080@60Hz (1080p); 1024x768@60Hz (XGA) Standard timing Detailed timing Video mode Detailed timing Established timing 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1366x768 @ 60Hz 1920x1080@60Hz (Used for 1080p model) 640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1280x800@120Hz (RB) - Page 22 Additional information Digital (HDMI1 2.0) Digital native resolution: 1280x800@60Hz (WXGA); 1920x1080@60Hz (1080p); 1024x768@60Hz (XGA) Describing timing - Describing Time Established Standard timing Support video mode Series B1 timing (Detailed timing) (Detailed timing) 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@120Hz (*) 1920x1080@60Hz (Used for 1080p model)
- Page 23 Additional information Digital (HDMI2 1.4) Digital native resolution: 1280x800@60Hz (WXGA); 1920x1080@60Hz (1080p); 1024x768@60Hz (XGA) Describing timing - Describing Time Established Standard timing Support video mode Series B1 timing (Detailed timing) (Detailed timing) 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 640 x 480p @ 60Hz 4:03 1920 x 1080p @ 60Hz 1920x1080@60Hz...
- Page 24 Additional information True video compatibilit Input timing 1280 x 720P @ 50Hz Up and down HDMI 1.4a 1280 x 720P @ 60Hz Up and down 3D input 1280 x 720P @ 50Hz Frame encapsulation 1280 x 720P @ 60Hz Frame encapsulation 1920 x 1080i @ 50Hz Side by side (half) Input resolution...
-
Page 25: Image Size And Projection Distance
Additional information Image size and projection distance WXGA Short Projection Model Screen size (W x H) Projection WXGA Offset (Hd) distance (D) (16:10) screen (meters) (inches) (meters) (inches) diagonal width heigh width height Wide Wide (meters) (inches) width width length of the curtain eighty sixty-s... - Page 26 three ninety-f fifty-th forty-seve zero eight point hundred point point point n point point six three and ten four three point point two one five five two two four seven eight nine seven three fifty-ei fifty-one zero nine point hundred point point hundred...
-
Page 27: Projector Size And Ceiling Installation
Additional information Projector size and ceiling installatio If you wish to use a third-party lifting kit, please ensure that the screws used to secure the projector to the hanger meet the following specifications: • Screw type: M4 * 10 • Minimum screw size: 10mm 1080p/WXGA Short Projection Model lens... -
Page 28: Fault Handling
Additional information Fault handlin If you encounter problems while using the projector, please refer to the following information. If the problem cannot be solved, please contact your local dealer or repair center. Image issues There is no image on the s c r e e n . - Page 29 Additional information Other issue T h e p r o j e c t o r s t o p s r e s p o n d i n g a l l c o n t r o l s . •...
-
Page 30: Warning Indicator Lights
Additional information Warning indicator ligh When the warning indicator light (as described below) lights up or flashes, the projector will automatically shut down: • The "Light" LED indicator light shows red, and if the "Power" indicator light flashes red. • The "Temperature"...
