Telos Alliance Z/IPStream R/1 Quick Start Setup Manual

Encoder for streaming
Hide thumbs

Advertisement

Table of Contents

Z/IPStream R/1
Encoder for Streaming
Quick Start Setup Guide
Software Version v2.1
2001-00254
For part number:
ATTENTION!
This quick start guide is intended to aid with basic deployment of the Z/IPStream R/1.
For further support and/or questions please contact support@telosalliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z/IPStream R/1 and is the answer not in the manual?

Questions and answers

Related Manuals for Telos Alliance Z/IPStream R/1

Summary of Contents for Telos Alliance Z/IPStream R/1

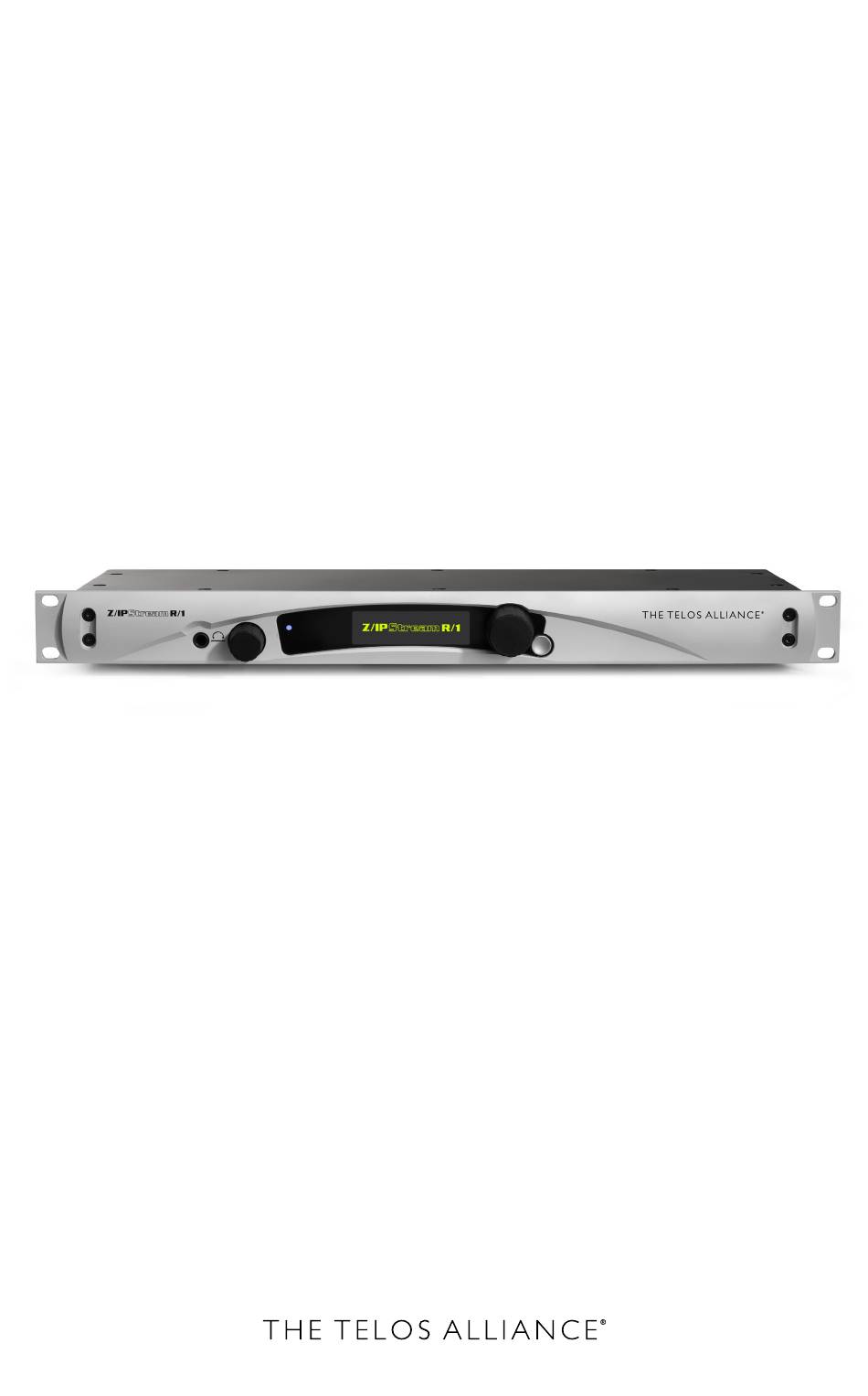

  • Page 1 Z/IPStream R/1 Encoder for Streaming Quick Start Setup Guide Software Version v2.1 2001-00254 For part number: ATTENTION! This quick start guide is intended to aid with basic deployment of the Z/IPStream R/1. For further support and/or questions please contact support@telosalliance.com...
  • Page 2 IMPORTANT SAFETY INFORMATION ABOUT YOUR NEW PRODUCT We know you’re eager to get your new gear up and running. But first, The Telos Alliance strongly suggests you use an Uninterruptible Power Supply (UPS), with power line filtering, to prevent damage in case of electrical storms or power surges.
  • Page 3 Linear Acoustic®, 25-Seven Systems®, and Minnetonka Audio®. We’re here to help you make your work truly shine. We hope that you enjoy your Telos Alliance product for many years to come and won’t hesitate to let us know if we can help in any way.
  • Page 4 DHCP, and the stream is sent to a ShoutCAST v2 server. If your setup is different, you may safely skip this section. If this is the first time you have used a Z/IPStream R/1, you may to have a look at the [Front Panel] and [Entering Text] sections in the back before you proceed.

  • Page 5: Omnia Processing

    Increase INPUT gain by pressing the encoder knob, turning, and then pressing again to set the value. Network The Z/IPStream R/1 offers WAN and LAN/Livewire network ports. In most configurations you only need to connect the WAN port to the network and the LAN port is set as “disabled”. When using Livewire, the LAN port is connected to the Livewire network and the WAN port is connected to the public/outside network.
  • Page 6 Once the Codec encoders are configured, it should be possible to monitor the encoded audio streams via a connected network audio player. Each codec can be monitored separately via the Z/IPStream R/1’s internal Stream Server. In the table below, “ip.address” represents the IP address assigned to the Z/...

  • Page 7: Stream Configuration

    Stream configurations are provided by the stream relay provider or set in the stream server configura- tion files. Z/IPStream R/1 has four (4) configurable stream uplinks which can be set to push audio from either of the two (2) available encoded codecs.
  • Page 8 Z/IPStream R/1 - QUICK START SETUP GUIDE | Stream 1 Stream Type: SHOUTcast Codec: Codec 1 Server Address: SHOUTcast.ip:{portbase} [example: 192.168.2.200:8010] Server Password: {password} [example: streampwd] Stream Name: Name of Stream [sent to clients] Stream Genre: Genre of Stream [SHOUTcast guidelines] Stream URL: URL of Station Website [sent to clients, example: http://TelosAlliance.com]...
  • Page 9 | Z/IPStream R/1 - QUICK START SETUP GUIDE Stream 2 Stream Type: SHOUTcast Codec: Codec 2 Server Address: SHOUTcast.ip:{portbase} [example: 192.168.2.200:8010] Server Password: {password} [example: streampwd] Stream Name: Name of Stream [sent to clients] Stream Genre: Genre of Stream [SHOUTcast guidelines] Stream URL: URL of Station Website [sent to clients, example: http://TelosAlliance.com]...

  • Page 10: Icecast Example

    </authentication> <listen-socket> <port>8000</port> </listen-socket> ICEcast per-stream configuration is un-needed. Streams are distinguished by the mount point configu- ration which is specified in the source device [Z/IPStream R/1]. Stream 3 Stream Type: ICEcast Codec: Codec 1 Server Address: ICEcast.ip:{port} [example: 192.168.2.200:8000] Mount Point: hifi [can be any URL compatible string] Server Username: source [can be overridden in icecast.xml config]...
  • Page 11 | Z/IPStream R/1 - QUICK START SETUP GUIDE Stream 4 Stream Type: ICEcast Codec: Codec 2 Server Address: ICEcast.ip:{port} [example: 192.168.2.200:8000] Mount Point: lofi [can be any URL compatible string] Server Username: source [can be overridden in icecast.xml config] Server Password: <source-password> [example: streampwd] Metadata Username: <admin-user>...

  • Page 12: Entering And Editing Text In The Front Panel Ui

    Entering and Editing Text in the Front Panel UI Since the Z/IPStream R/1’s user interface consists of a selector knob and back button, the method for entering text or numeric information may not be immediately obvious. This section describes how text entry and editing is accomplished.
  • Page 13 This page intentionally left blank...
  • Page 14 This page intentionally left blank...
  • Page 15 This page intentionally left blank...
  • Page 16 The Telos Alliance • 1241 Superior Ave. • Cleveland, Ohio 44114 USA • +1.216.241.7225 • TelosAlliance.com © 2019 TLS Corp., All Rights Reserved. C19/1/19061 P/N: 1490-00179-002 --- QUICK START GUIDE: R1...
