Dexing NDS3508B User Manual

Tuner to ip gateway
Hide thumbs Also See for NDS3508B:
Table of Contents

Advertisement

Quick Links

Download this manual
NDS3508B Tuner to IP Gateway
User's Manual--SPTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3508B and is the answer not in the manual?

Questions and answers

Related Manuals for Dexing NDS3508B

Summary of Contents for Dexing NDS3508B

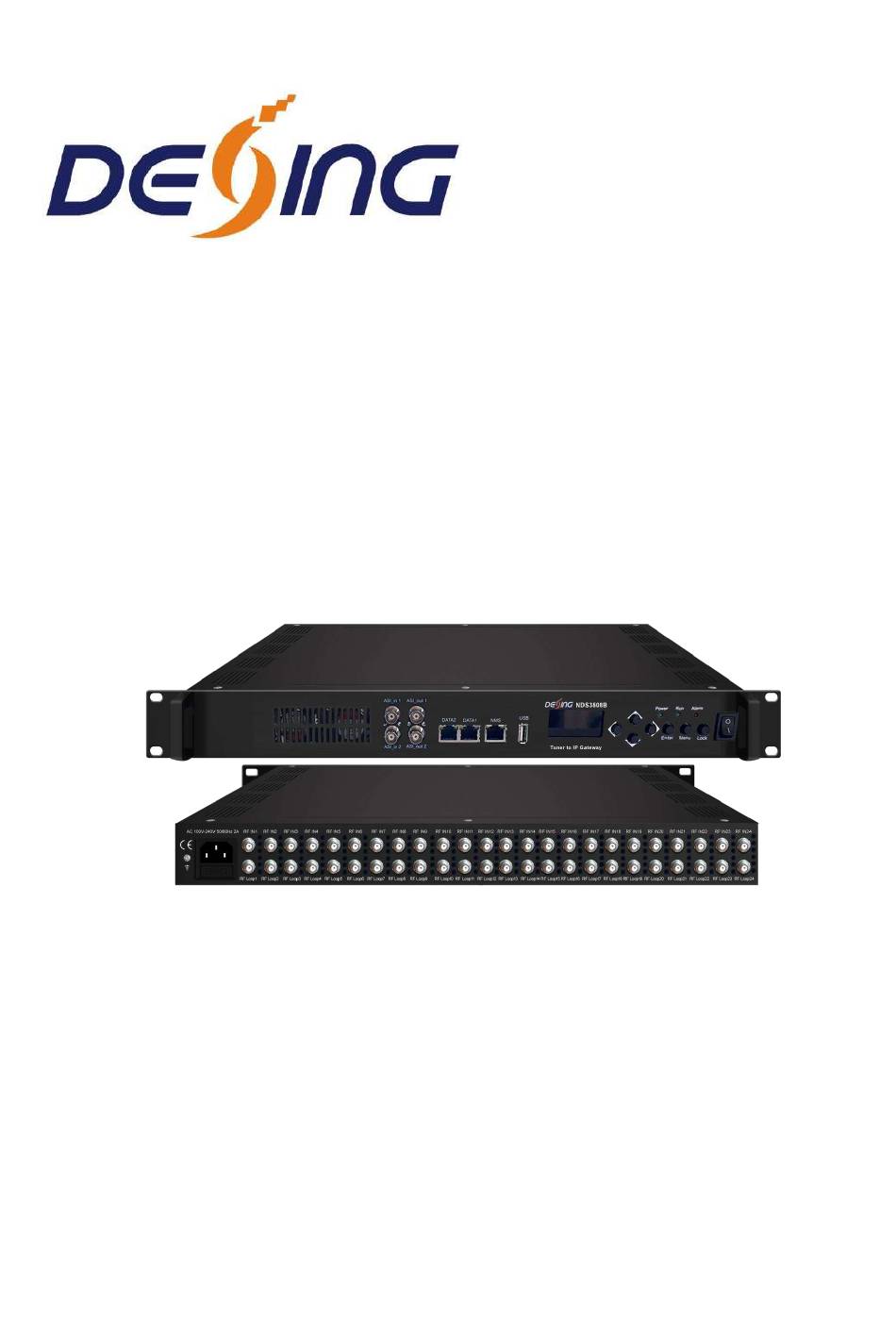

  • Page 1 NDS3508B Tuner to IP Gateway User’s Manual--SPTS...

  • Page 2: Table Of Contents

    DIRECTORY CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 Outline ................................1 1.2 Features ................................1 1.3 Inner Principle ............................... 1 1.4 Specifications ..............................2 1.5 Appearance and Description .......................... 2 CHAPTER 2 INSTALLATION GUIDE ..................5 2.1 Acquisition Check ............................5 2.2 Installation Preparation ..........................

  • Page 3: Chapter 1 Product Outline

    Chapter 1 Product Outline 1.1 Outline NDS3508B Tuner to IP Gateway is a head-end interface-conversion device which supports MPTS(Bypass) output and SPTS output switchable in Web GUI. It supports 24 MPTS output(24 FTA tuner inputs)+3 MPTS output(2 ASI inputs and 1 USB input) or 1024 SPTS output over UDP and RTP/RTSP protocol.

  • Page 4: Inner Principle

    NDS3508B Tuner to IP Gateway User’s Manual one of the 27 input signals(24 tuner inputs, 2 ASI inputs and 1 USB port) in MPTS out mode, ASI out 1 and ASI out 2 are mirror ports to output the same one TS ...

  • Page 5: Appearance And Description

    NDS3508B Tuner to IP Gateway User’s Manual QPSK/8PSK /16APSK :0.5~45 Msps Symbol rate 8APSK: 0.5~40Msps 32APSK: 0.5~34Msps QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L,...
  • Page 6 NDS3508B Tuner to IP Gateway User’s Manual ASI input ports ASI output ports DATA1&2: IP out ports NMS port: Network management interface, NMS IP:192.168.0.136 USB port for TS input by TS file playing Key buttons for LCD operations Power/Run/Alarm indicators...

  • Page 7: Chapter 2 Installation Guide

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  NDS3508B Tuner to IP Gateway ...
  • Page 8 NDS3508B Tuner to IP Gateway User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3508B Tuner to IP Gateway, user should set the power switch to “OFF”.

  • Page 10: Chapter 3 Web Nms Operation

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 3 Keyboard Operation The front panel is an user-operating interface for partial menu items. Users can make some basic operations, such as checking tuner locking status and checking & setting NMS IP etc.

  • Page 11: Chapter 4 Web Nms Operation

    User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the NDS3508B’s IP address; otherwise, it would cause IP conflict. 3.1 login The default IP of this device is 192.168.0.136.
  • Page 12 NDS3508B Tuner to IP Gateway User’s Manual Figure-2 System information User can click any item here to enter the corresponding interface to check information or set the parameters. Parameters→ Tuner (DVB-C/T/T2/ISDB-T multi-mode switchable tuner inputs for example) Click “Tuner” to enter the Web GUI where users can check the input status of all tuner inputs and set the tuner parameters.
  • Page 13 NDS3508B Tuner to IP Gateway User’s Manual  TS Config→DATA 1/ DATA 2: Choose “DATA 1/DATA2” to enter the corresponding interface where users can select the DATA1 or DATA2 to output the specific SPTS (Figure-4) Figure-4  TS Config→Stream Select: Click “Stream select”...
  • Page 14 NDS3508B Tuner to IP Gateway User’s Manual : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output.
  • Page 15 NDS3508B Tuner to IP Gateway User’s Manual Figure-6  TS Config→Biss: Click “Biss” to enter the Web GUI where users can configure BISS keys to descramble the specific programs (Figure-7). Figure-7 Users can set BISS parameters by clicking ”Add” button.
  • Page 16 NDS3508B Tuner to IP Gateway User’s Manual Figure-8 Detailed Explanation: Play Mode: User can select a play mode for the *.ts files as needed before playing the *.ts file and specify a video under ‘Single file’ / ‘Single loop’ mode and press “Apply” and “Start”...
  • Page 17 NDS3508B Tuner to IP Gateway User’s Manual System → Password: Click “Password” to enter the Web GUI as Figure-11 where to set the login account and password for the web NMS. Figure-11 System → Configuration: Click “Configuration” to enter the Web GUI as Figure-12 where to save /restore/Factory Set/Backup/Load your configurations.
  • Page 18 NDS3508B Tuner to IP Gateway User’s Manual MPTS/Bypass and SPTS output is switchable. Reboot to activate the new mode after setting. Figure-13 System → Log: Click “Log” to enter the Web GUI as Figure-14 where to check the logs of the device.
  • Page 19 NDS3508B Tuner to IP Gateway User’s Manual Figure-15...

  • Page 20: Chapter 5 Troubleshooting

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 5 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 21: Chapter 6 Packing List

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 6 Packing list  NDS3508B Tuner to IP gateway  Grounding cable  RF In and Loop Out Cable  Power cord...
