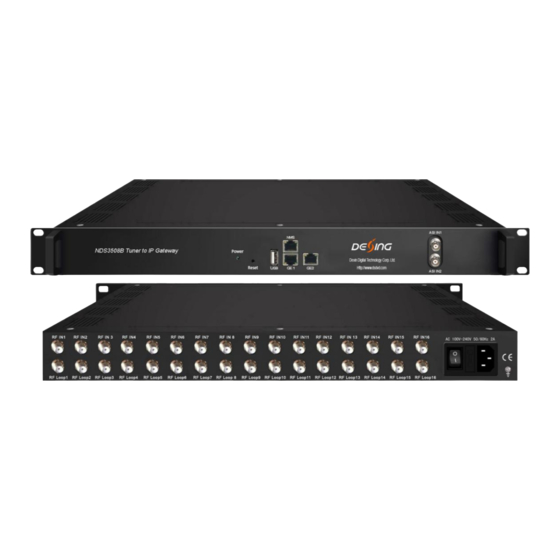

NDS3508B Tuner to IP Gateway
User's Manual
DEXIN DIGITAL TECHNOLOGY CORP. LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NDS3508B and is the answer not in the manual?

Questions and answers

Related Manuals for Dexing NDS3508B

Summary of Contents for Dexing NDS3508B

  • Page 1 NDS3508B Tuner to IP Gateway User’s Manual DEXIN DIGITAL TECHNOLOGY CORP. LTD.

  • Page 2: Table Of Contents

    DIRECTORY CHAPTER 1 PRODUCT OUTLINE ....................1 1.1 Outline ................................1 1.2 Features ................................1 1.3 Inner Principle ............................... 1 1.4 Specifications ..............................2 1.5 Appearance and Description .......................... 2 CHAPTER 2 INSTALLATION GUIDE .................... 5 2.1 Acquisition Check ............................5 2.2 Installation Preparation ..........................

  • Page 3: Chapter 1 Product Outline

    Chapter 1 Product Outline 1.1 Outline NDS3508B Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input)

  • Page 4: Inner Principle

    NDS3508B Tuner to IP Gateway User’s Manual 1.3 Inner Principle Tuner 1 NDS3508B Tuner 2 Tuner 3 IP Output IP Output Tuner 15 Tuner 16 ASI Input1 ASI Input2 1.4 Specifications Optional 1:16 tuners input +2 ASI input---SPTS output Input...

  • Page 5: Appearance And Description

    NDS3508B Tuner to IP Gateway User’s Manual 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, Constellation QPSK, 8PSK, 8APSK, 16APSK, 32APSK ≤125 Mbps Max input bitrate BISS Mode 1, Mode E (Up to 850Mbps) (descramble individual program)
  • Page 6 NDS3508B Tuner to IP Gateway User’s Manual Rear Panel Illustration 16 channels RF IN Interface Integrated power switch and socket Grounding Wire...

  • Page 7: Chapter 2 Installation Guide

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  NDS3508B Tuner to IP Gateway ...
  • Page 8 NDS3508B Tuner to IP Gateway User’s Manual Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to NDS3508B Tuner to IP Gateway, user should set the power switch to “OFF”.

  • Page 10: Chapter 3 Web Nms Operation

    User can only control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from the NDS3508B’s IP address; otherwise, it would cause IP conflict. 3.1 login The default IP of this device is 192.168.0.136.
  • Page 11 NDS3508B Tuner to IP Gateway User’s Manual System information User can click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameter→ Tuner input (DVB-S2/S2X) From the menu on top side of the webpage, click “Tuner Input”, it displays the interface where users can check the 16 DVB-S/S2/S2X Tuners input status.
  • Page 12 NDS3508B Tuner to IP Gateway User’s Manual Parameter→ ASI input From the menu on top side of the webpage, click “ASI Input”, it displays the interface where users can check the 2 channels of ASI input status. (Figure-5) Figure-5 Parameter→ TS Config Clicking “TS Config”, it displays the interface where users can set the output TS and...
  • Page 13 NDS3508B Tuner to IP Gateway User’s Manual Figure-7 Parameter → SPTS Select: From the menu on left side of the webpage, clicking “SPTS Select”, it displays the interface where users can choose 16 DVB-S/S2/S2X Tuner input and 2 ASI Input programs to output from IP (max 512 SPTS).
  • Page 14 Figure-9 Note: NDS3508B support 16 Tuner input and 2 ASI input with 512 SPTS output, the parameter interface is different from MPTS. When users switch SPTS to MPTS, new mode will work after reboot the device.
  • Page 15 From the menu on left side of the webpage, clicking “Program Parse”, it displays the interface where users can parse the program from the input channels. When users disable the ASI input, NDS3508B can support 16 Tuner input with 16 MPTS IP output (Figure-11).
  • Page 16 NDS3508B Tuner to IP Gateway User’s Manual Figure-12 Parameter→ IP Stream NDS3508B supports TS to output in IP (16*MPTS) format through the GE1 or GE2 port. Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-13). Figure-13 System →...
  • Page 17 NDS3508B Tuner to IP Gateway User’s Manual Set NMS IP address, the default address 192.168.0.136 Set GE1 IP address Set GE2 IP address Figure-14 System → Date &Time: Clicking “Date & Time”, it displays the interface as Figure-15 where to set date and time.
  • Page 18 NDS3508B Tuner to IP Gateway User’s Manual Figure-16 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it displays the screen as Figure-17 where to save or restore your configurations. Figure-17 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it displays the screen...
  • Page 19 NDS3508B Tuner to IP Gateway User’s Manual Figure-18 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it displays the screen as Figure-19 where to update firmware for the device. Select output Mode, click “Apply”...

  • Page 20: Chapter 4 Troubleshooting

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 4 Troubleshooting DEXIN’s ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All DEXIN products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by DEXIN.

  • Page 21: Chapter 5 Packing List

    NDS3508B Tuner to IP Gateway User’s Manual Chapter 5 Packing list  NDS3508B Tuner to IP gateway  Grounding cable  RF In and Loop Out Cable  Power cord...
