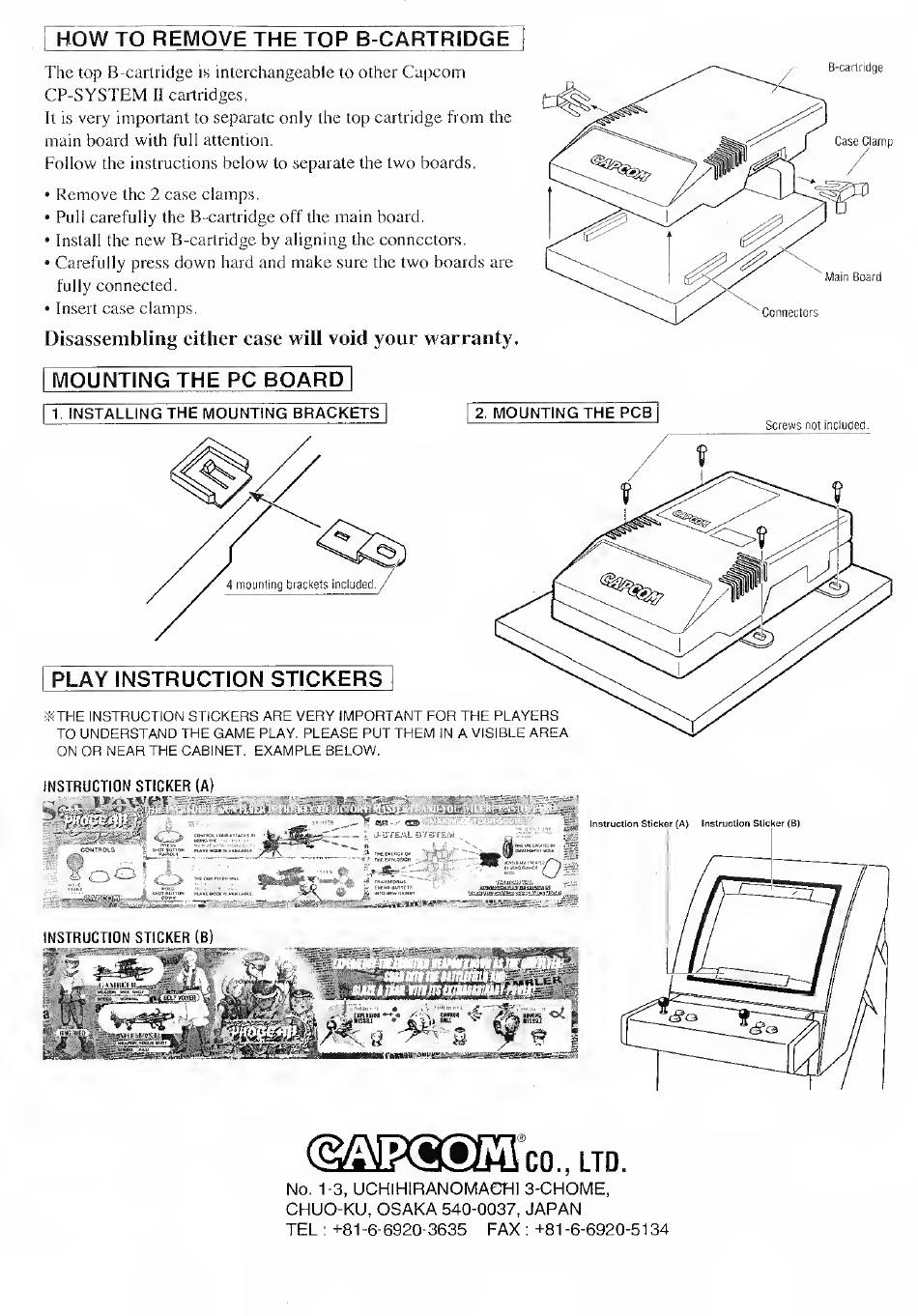

How To Remove; Mounting The Pc Board - Capcom PROGEAR Manual

HOW
TO
REMOVE
THE TOP B-CARTRIDGE
The
top B-cartridge
is
interchangeable
to
other
Capcom
CP-SYSTEM
II
cartridges.
It is
very important
to
separate only the top cartridge
from
the
main board
with
full
attention.
Follow
the instructions
below
to
separate the
two
boards.
•
Remove
the
2 case clamps.
• Pull
carefully the B-cartridge off the
main
board.
•
Install
the
new
B-cartridge by aligning the connectors.
• Carefully press
down
hard
and
make
sure the
two
boards are
fully
connected.
• Insert
case clamps.
Disassembling
either
ease
will
void
your warranty.
-cartridge
Case Clamp
Main Board
Connectors
MOUNTING THE PC
BOARD
1.
INSTALLING
THE MOUNTING
BRACKETS
PLAY INSTRUCTION STICKERS
2.
MOUNTING THE PCB
*THE INSTRUCTION STICKERS
ARE VERY IMPORTANT FOR THE PLAYERS
TO UNDERSTAND THE
GAME
PLAY.
PLEASE PUT
THEM
IN
A
VISIBLE
AREA
ON OR NEAR THE
CABINET.
EXAMPLE BELOW.
Screws
not included.
INSTRUCTION STICKER
