MODECOM FREETAB

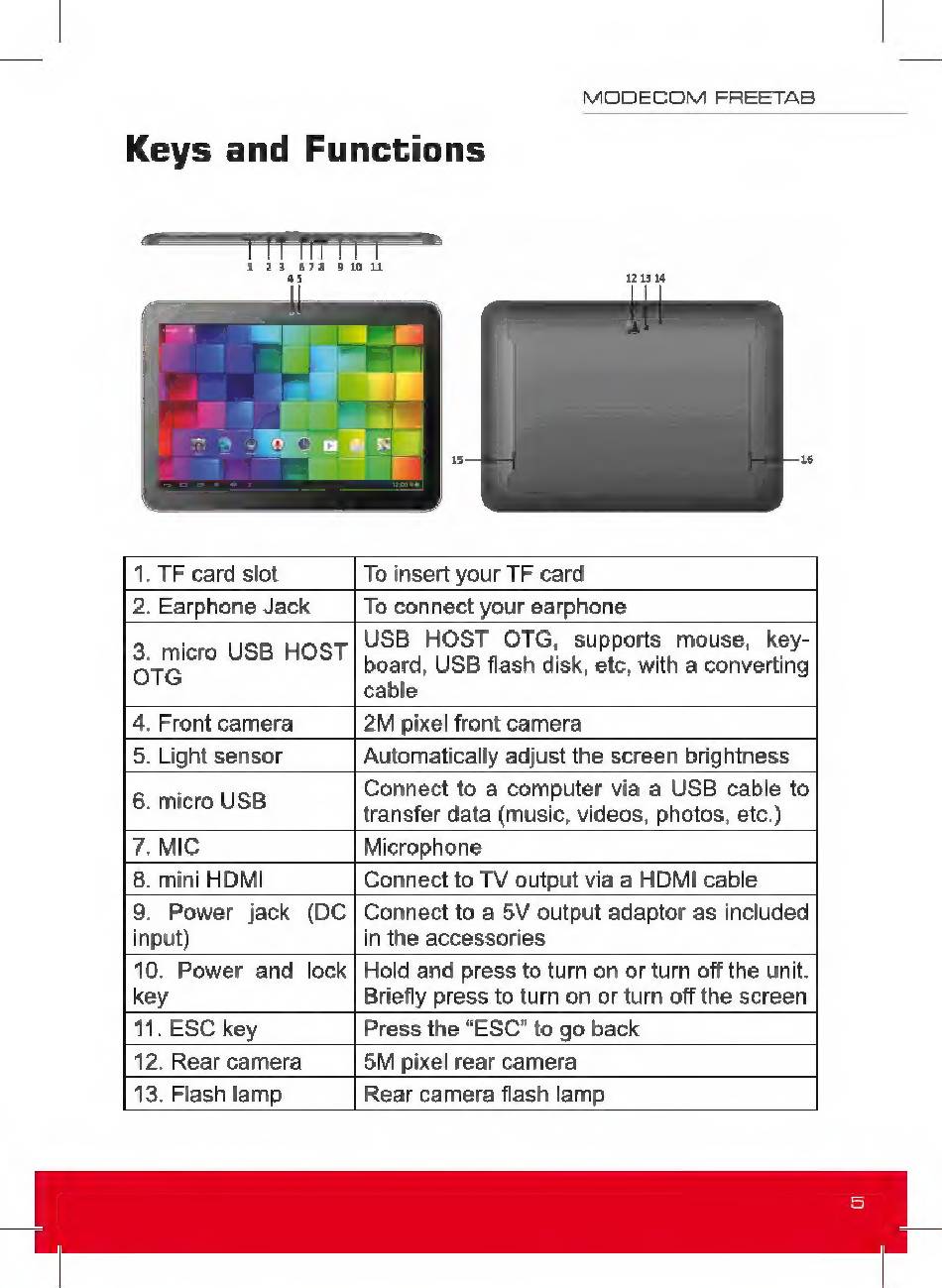

Keys and Functions
121314
1. TF card slot
To insert your TF card
2. Earphone Jack
To connect your earphone
3. micro USB HOST
OTG
USB HOST OTG, supports mouse, key-
board, USB flash disk, etc, with a converting
cable
4. Front camera 2M pixel front camera
5. Light sensor Automatically adjust the screen brightness
B Connect to a computer via a USB cable to
6. micro USB transfer data (music, videos, photos, etc.)
7. MIC Microphone
8. mini HDMI Connect to TV output via a HDMI cable
9. Power jack (DC
input)
Connect to a 5V output adaptor as included
in the accessories
10. Power and lock
key
Hold and press to turn on or turn off the unit.
Briefly press to turn on or turn off the screen
11. ESC key
Press the "ESC" to go back
12. Rear camera
5M pixel rear camera
13. Flash lamp
Rear camera flash lamp
