IKEUCHI AE-KIT Instruction Manual

Dry fog humidification kit wall-mounting type
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS
For safe operation -------------------------------------------- p.1
Parts list for confirmation ----------------------------------- p.2
Part names and installation example -------------------- p.3
Installation -------------------------------------------------- p.4-8
Dry Fog Humidification Kit
AE-KIT
Instruction Manual
Wall-mounting Type
Please also refer to the enclosed Instruction Manuals
on RHC - C11 Humidity Controller and AKIMist® Dry Fog Humidifier.
Maintenance / Part replacement -------------------- p.10-12
Troubleshooting ---------------------------------------------- p.13
Test for the sensor faults ----------------------------------- p.13
Manual No.NKG130452-3E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AE-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for IKEUCHI AE-KIT

Summary of Contents for IKEUCHI AE-KIT

  • Page 1: Table Of Contents

    Manual No.NKG130452-3E Dry Fog Humidification Kit AE-KIT Instruction Manual Wall-mounting Type Please also refer to the enclosed Instruction Manuals on RHC - C11 Humidity Controller and AKIMist® Dry Fog Humidifier. CONTENTS For safe operation -------------------------------------------- p.1 Maintenance / Part replacement -------------------- p.10–12 Parts list for confirmation ----------------------------------- p.2...

  • Page 2: For Safe Operation

    Thank you for purchasing IKEUCHI's Dry Fog Humidification Kit "AE-KIT". AE-KIT is comprised of the Control Unit, Nozzle Unit (Dry Fog Humidifier Unit), Water Unit and Piping Unit. Before use, please read this manual thoroughly and follow the instructions when using this product.

  • Page 3: Parts List For Confirmation

    Make sure all items are in the package. The parts below should be included if you order all complete units of AE-KIT ( Control Unit, Nozzle Unit, Water Unit, Piping Unit ) . In the case a part is missing, please contact your supplier.

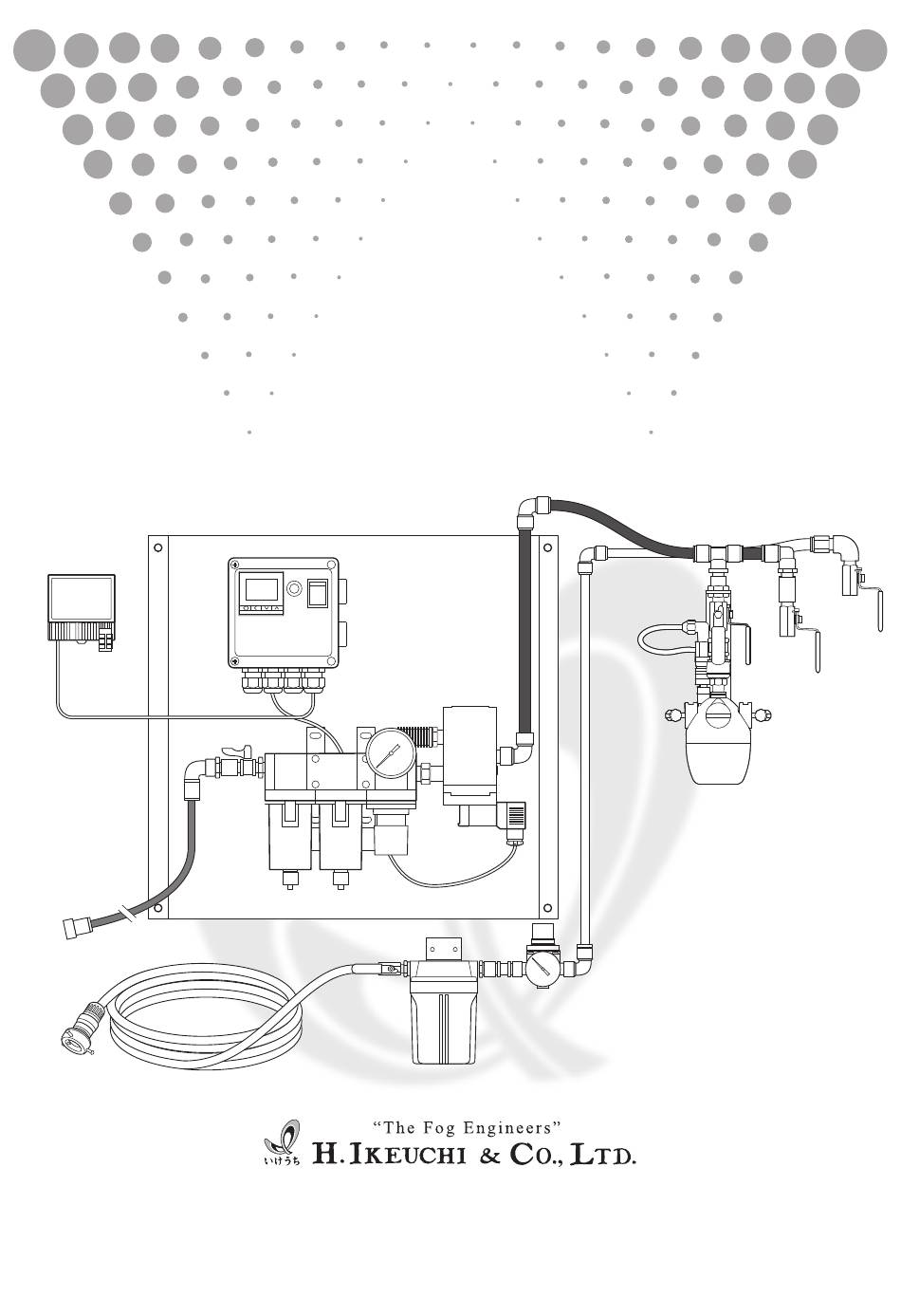

  • Page 4: Part Names And Installation Example
