One Link Dynagen 9988N Installation Manual

Installation Instructions:
1. Put the generator in stop mode.
2. Disconnect the positive battery terminal.
(Do not reconnect the positive battery
terminal until step 19.)
3. Using the magnetic mounts, mount the
One Link inside of the generator enclosure
close to the controller. (Be sure the
mounting location is away from weather
exposure.)
4. Connect the ring connector on the
wire of the battery wiring harness to the
positive (+) battery terminal.
5. Connect the ring connector on the
wire of the battery wiring harness to the
negative (-) battery terminal.
6. Route the red
the One Link I/O cable to the battery wiring
harness installed in steps 4 and 5.
7. Using one of the included lever wire
connectors, connect the bare
from the battery wiring harness to the
wire from the One Link I/O cable.
8. Using one of the included lever wire
connectors, connect the bare
the battery wiring harness to the
from the One Link I/O cable.
wire and black
black
red
1 (888) 366-7886
red
black
wire from
wire
black
wire from
red wire
Dynagen 9988N
Installation Guide

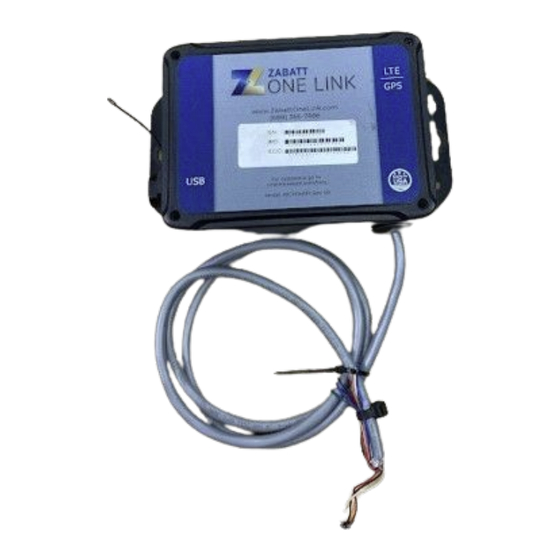

One Link v2
Panel:
Parts List:
OLM002
Lever Connectors(2)
