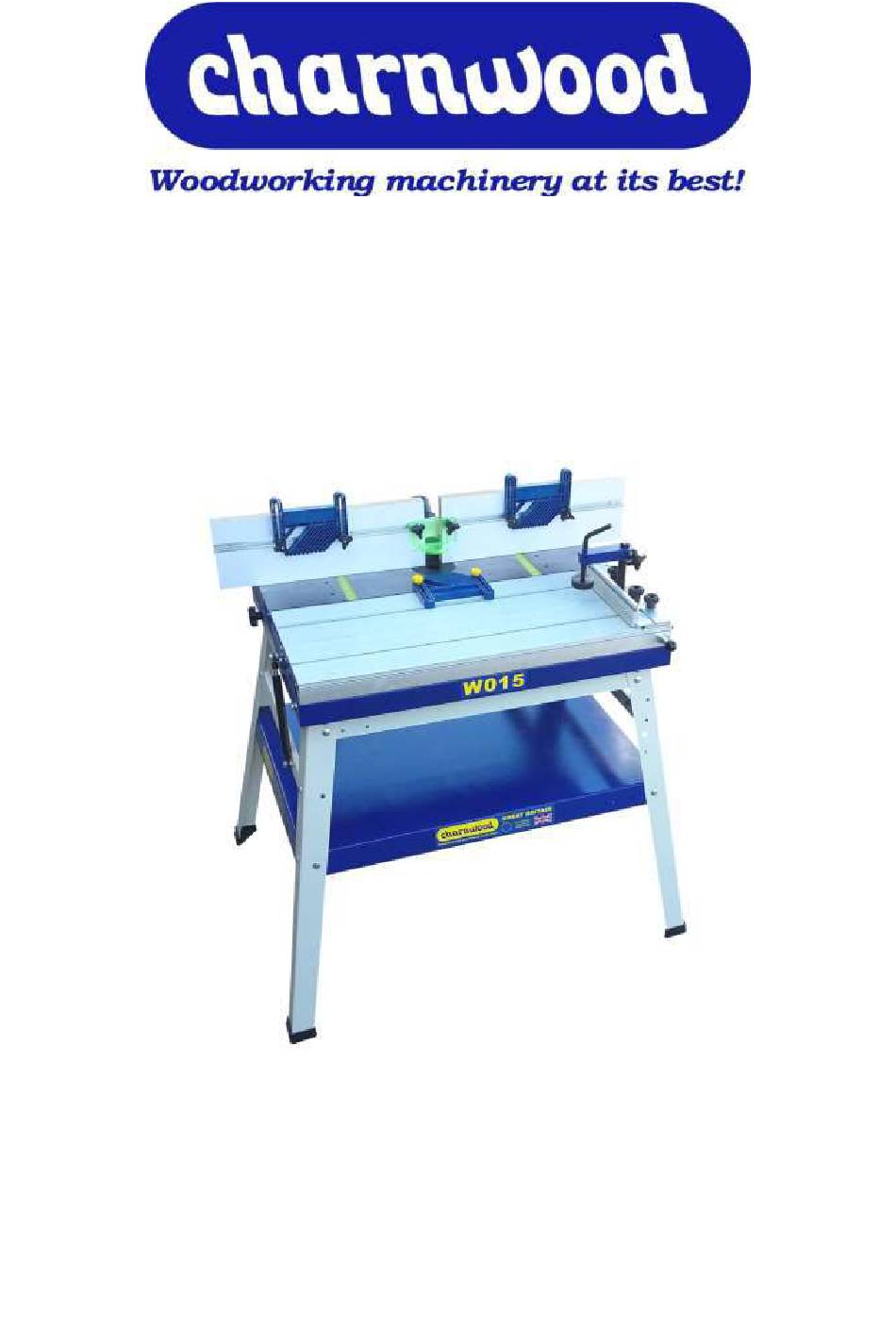

HEAVY DUTY ROUTER TABLE
OWNERS MANUAL
MODEL: W015
Charnwood, Cedar Court, Walker Road,
Hilltop Industrial Estate, Bardon Hill, Leicestershire, LE67 1TU
Tel. 01530 516 926 Fax. 01530 516 929
email: sales@charnwood.net
website: www.charnwood.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Charnwood W015

  • Page 1 HEAVY DUTY ROUTER TABLE OWNERS MANUAL MODEL: W015 Charnwood, Cedar Court, Walker Road, Hilltop Industrial Estate, Bardon Hill, Leicestershire, LE67 1TU Tel. 01530 516 926 Fax. 01530 516 929 email: sales@charnwood.net website: www.charnwood.net...
  • Page 2: General Safety Rules

    GENERAL SAFETY RULES WARNING: Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. Keep this owner's manual and review frequently for continuous safe operation.
  • Page 3: Specification

    19. Always wear a face or dust mask if operation creates a lot of dust and/or chips. Always operate the tool in a well ventilated area and provide for proper dust removal. Use a suitable dust extractor. ADDITIONAL RULES FOR ROUTER TABLES 1.
  • Page 4 Overview of the Router Table Fixed Table Dust Hood Outlet Vertical Featherboards Toggle Clamp Left Fence Cutter Guard Right Fence Table Lift Spring Table Inserts Horizontal Setting Jig Sliding Table Featherboard Lock Fence Shims Floorstand Router Clamps Push Plate Unpacking All parts are packed in one carton.
  • Page 5 Unpack the parts carefully and check that everything is present as shown. If anything is missing, contact your retailer immediately. The cast iron table is protected with oil which should be removed with a suitable degreaser, such as WD40. The table is heavy and you might require assistance when removing it from the carton and attaching it to the leg stand.
  • Page 6 Assembly Important: All nuts and bolts should only be fastened finger-tight until assembly is complete. Lay the two upper side braces and front upper brace on a suitable flat surface, ensuring that the table fixing holes are positioned as shown Attach the four legs to the upper braces.
  • Page 7 Attach the two rear braces as shown. Note: The position of the top fixing bolt is through the lower square hole. Fit a rubber foot to each of the legs and place on a level surface. Fit a table lift support rail to either side of the table.
  • Page 8 Remove the protective film from the cast iron table. The surface is protected with oil which should be removed with a suitable degreaser, such as WD40. Attach the two lifting handles to the rear of the table using a 5mm hex key. Fully tighten these bolts.
  • Page 9 Note: Do not overtighten the NyLoc nuts as the spring needs to pivot. Lift the table up and attach the top of the gas spring using the same configuration of bolts, washers and NyLoc nuts. DO NOT ATTEMPT TO CLOSE THE TABLE WITH ONLY ONE STRUT ATTACHED.
  • Page 10 Assemble the Push Block as shown. It is fixed to the sliding table with captive head bolts which slide into the corresponding slots in the table. The block can be adjusted to suit the workpiece. Always ensure that the aluminium fence is kept clear of the cutter.
  • Page 11: Assembling The Fence

    Assembling The Fence Place the aluminium angle fence carrier on the cast iron table, aligning the two long slots with a pair of tapped holes as illustrated. Clamp the fence carrier using the two long handles with M8 studs. There are a series of holes which allow the fence to be adjusted according to the size/type of router cutter being employed and type of operation being undertaken.
  • Page 12 Attaching The Router To The Table Consider removing the faceplate cover from the router base. Doing so will increase the maximum plunge depth by an amount equal to the baseplate thickness. The router table is supplied with our unique centring jig to speed up accurate mounting of 1/4”...
  • Page 13 Add the clamp lock, locking nut, washer and bolt as shown. Bolt Washer Locking nut Clamp Lock Slide both bolt heads into a slot in the underside of the table and position the mounting clamp on a convenient part of the router baseplate. The clamps should be spaced as equally as possible in order to provide maximum support to the router.
  • Page 14 For safe and accurate routing, three feather boards have been supplied and these should be used whenever possible. Two feather boards should be fitted vertically to the fence. One feather board should be attached to the table in the horizontal plane. There are two sets of holes in the table to accommodate different sizes of work piece.
  • Page 15 Basic Operating Instructions 1) EDGING AND PROFILING One of the most common operations undertaken using a router is Edging or Profiling, i.e. running a shaped cutter along the edge of the work piece. In many instance this is for decorative purposes but it can also be to make a joint or fitting such as a raised panel. Using a router table for this type of work vastly reduces the setting up time required and does away with many awkward clamping devices.
  • Page 16 2) GROOVING Grooving and Trenching operations are often carried out to form joints such as slot dovetails or to make fittings such as draw runner grooves. SET THE FENCE - The table is set up in the same manner except the fence will be set further back away from the cutter.
  • Page 17: Optional Accessories

    Optional Accessories CE12 Collet Extension A collet extension is available to extend the plunge depth of your router. It can be used with 1/2” shank router bits and extends the collet by 65mm. 100/75RC Extraction Adapter This connector can be used to convert the extraction outlet for use with a 100mm diameter hose.
  • Page 18 Charnwood W015 Parts Drawing A...
  • Page 19 Charnwood W015 Main Parts List Part No Description Part No. Description Sliding Screw M6 x 20mm Fence Plate Clamp Holder Short Fence Knob Nut Clamp Bracket Bracket Clamp Rod Knob M6 x 20 Clamp Plate Round Cross Head Screw Hexagonal Socket Head Screw...
  • Page 20: Parts List B

    Charnwood W015 Fence Parts Drawing B Parts List B Description Aluminium Fence Support Black, Castellated Knobs Captive Bolt Pozi Head Screw Optional - Dust Port Black, Tri-wing Knob T-track Hex-head Bolt Countersunk Screw Fence Cutter Guard Black Castellated Knob Washer...
