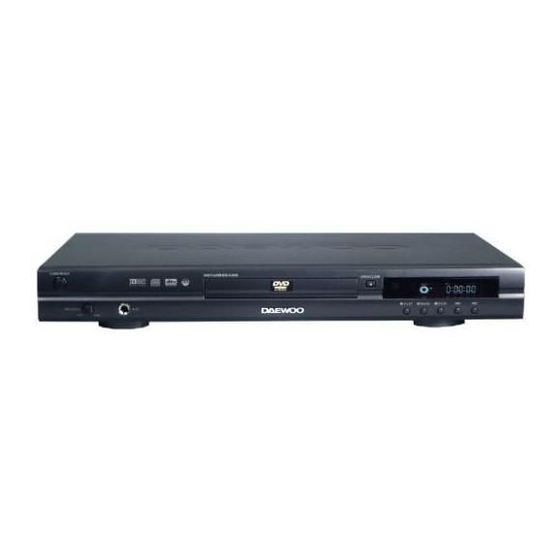

  • Page 1 DVD PLAYER OWNER’S MANUAL DVG-5200S...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY PRECAUTIONS...2 FEATURES...6 ABOUT MANUAL...7 TERMS FOR DISCS...8 BEFORE OPERATION ...10 PREPARATIONS BEFORE OPERATION ...12 Front Panel ...12 Rear Panel ...13 VFD...14 Names and Layout of Remote Controls ...15 CONNECTIONS...16 BASIC OPERATIONS ...17 Play Discs...17 System Setting...18 V-Mode...18 Display...18 Fast Play ...19...

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

  • Page 4: Heed Warnings

    This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you if you observe the following procedures for installation, use and servicing. This unit is fully transistorized and does not contain any parts that can be repaired by the user.
  • Page 5 IMPORTANT SAFETY PRECAUTIONS your video dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions. 11 GROUNDING OR POLARIZATION This unit is equipped with a polarized alternating -current line plug (a having one blade wider than the other).
  • Page 6 20 DAMAGE REQUIRING SERVICE Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions. A. When the power-supply cord or plug is damaged. B. If liquid has been spilled, or objects have fallen into the unit. C.

  • Page 7: Features

    FEATURES OUTSTANDING SOUND QUALITY Dolby Digital system developed by Dolby Laboratories and DTS developed by DTS Inc., features high quality surround sound, can be played in DVD or CD disc at home, to reproduce high quality sound effects. HIGH DEFINITION The unit adopts MPEG2 coding format and brings the high horizontal resolution.

  • Page 8: About Manual

    ABOUT MANUAL PRINCIPLES FOR WRITING This manual mainly introduces how to use buttons on the remote control. You may operate the unit if the buttons on the unit have the same or similar names as or to those on the remote control. PLAYABLE DISCS •...

  • Page 9: Terms For Discs

    TERMS FOR DISCS TITLE The images or music of a DVD are divided into some units, among which title is the biggest one. When playing a DVD, the movie is the title. When playing a CD, the combined tracks make up the title. CHAPTER It is smaller than title among the units of a DVD.

  • Page 10: Region Management Information

    SCENE The menu pictures, motion and motionless pictures of a CD or something discs with PBC function can be divided into some parts, these parts are scenes. Each scene has a number for search. PBC (PLAYBACK CONTROL) It is signals recorded in a CD or something discs to control playback. DISC TYPE disc enjoy music and images (motion...

  • Page 11: Before Operation

    BEFORE OPERATION SECURITY • Before operation, check if the voltage of the unit is in line with the local voltage. • Hold the plug to disconnect it from the mains outlet. Do not pull the power cord. • When the plug of the unit is connected to the mains outlet , the unit will be still connected to AC even if the power is turned off.

  • Page 12: Handling Disc

    HANDLING DISC • To keep the disc clean, do not touch the playsides of the disc. • Do not attach paper or tape to the disc. • Keep the disc away from direct sunlight or heat sources. • Store the disc in a disc case after playback. CLEANING DISC •...

  • Page 13: Preparations Before Operation

    PREPARATIONS BEFORE OPERATION FRONT PANEL ! STANDBY/ON button To switch the unit On or Off when connected to AC power outlet @ Microphone Level adjustment knob. # Microphone Jack $ TRAY DOOR Press OPEN/CLOSE button to open it. % OPEN/CLOSE button To open or close the disc tray.

  • Page 14: Rear Panel

    REAR PANEL VIDEO OUT S-VIDEO OPTICAL AUDIO COAXIAL COMPONENT VIDEO & ! AUDIO OUT (L/R TRACK) Two phono sockets for analogue 2 Channel audio in order to a TV or stereo amplifier. @ VIDEO OUT Connects composite video signal to input AV or PHONO sockets of TV or monitor to achieve high fidelity colour reproduction.

  • Page 15: Vfd

    PREPARATIONS BEFORE OPERATION & ! Recognized DISC TYPE indicator Illuminates the current operation mode. @ DVD AUDIO STREAM indicator Indicates the audio type of the disc under play is DTS # Recognized DISC TYPE indicator $ DVD AUDIO STREAM indicator Indicates the audio type of the disc under play is DOLBY DIGITAL.

  • Page 16: Names And Layout Of Remote Controls

    NAMES AND LAYOUT OF REMOTE CONTROLS * In case of setting the mode by using SETUP menu (for example, AUDIO select in PREFERENCE SETUP), the setting is kept though you switch the unit off and turn it on. MUTE BUTTON POWER BUTTON SETUP BUTTON ANGLE BUTTON...

  • Page 17: Connections

    CONNECTIONS Turn off all equipment before operation. The unit has many kinds of output modes like A/V output, S-VIDEO output and digital signal output (COAXIAL, OPTICAL). You may select as you need. CONNECTED TO A TV AND AN ORDINARY AMPLIFIER VIDEO OUT S-VIDEO OPTICAL...

  • Page 18: Basic Operations

    BASIC OPERATIONS PLAY DISCS Push "POWER" button on the TV and audio system, Push "TV/VIDEO" button on the TV, select VIDEO mode (TV). Select S-Video mode if using an S-VIDEO connection. N ote: Select the right audio input on the amplifier. The Step2 can be •...

  • Page 19: System Setting

    • When you connect the Composite or S-VIDEO and picture is not displayed, press the V-MODE on the remote control to check if DVD player position in the video mode. DISPLAY Each time you press “DISPLAY” button when playing a disc, the TV screen shows the information as : •...

  • Page 20: Fast Play

    FAST PLAY When playing disc, you may play it forward fast or reverse it fast to find what you need. N ote: Push to play forward fast. Each Push PLAY to play time you push the button, the speed of normally when playing fast.

  • Page 21: Select Audio Language

    BASIC OPERATIONS SELECT AUDIO LANGUAGE You can choose the language according to your choice when playing mulit- language DVD. Press “AUDIO” button, select different languages. AUDIO *Attention: Please select the AUDIO language in SETUP menu to keep the setting!!! SELECT CHANNELS (CD, MP3) You may select the right channel or left channel or stereo from a multi-channel.

  • Page 22: Playing A Desired Scene

    PLAYING A DESIRED SCENE TO SKIP SCENES IN A DISC Push to move to next chapter (or track). The current chapter (or track) moves to the next chapter (or track). Push to move to previous chapter (or track). The current chapter (or track) moves to the previous chapter (or track) or first scene of current chapter (or track).

  • Page 23: Playing A Disc Containing Mp3 Files

    PLAYING A DESIRED SCENE PLAYING A DISC CONTAINING MP3 FILES When a MP3 disc is loaded, MP3 menu screen is displayed automatically depending on MP3 disc’s folder structure. Use the direction button to select the folder you want to play, by pressing [PLAY] button.

  • Page 24: Repeating A Defined Period From A To B

    REPEATING A DEFINED PERIOD FROM A TO B You may press A-B to enjoy some parts repeatedly when playing a disc. 1. Press “A-B” to set a starting point A. 2. Press “A-B” twice to an end point B. Afterwards, the unit plays from A to B. 3.

  • Page 25: Searching

    PLAYING A DESIRED SCENE SEARCHING SEARCHING DVD WITH A TITLE/CHAPTER NUMBER OR A TIME You may directly enter a title or chapter number to search fast on a disc. The unit plays from the point. 1 If you want to search with a chapter or a title number, press [SEARCH] button.

  • Page 26: Play Discs In Verious Ways

    PLAY DISCS IN VERIOUS WAYS SELECT ANGLE N ote: Some discs have images with different screen angles, you may select among them. For example, when you watch a running train, you may select to watch it Multi Angle function is limited from the front, the left window or the right window without stopping it.

  • Page 27: Program Play (Dvd)

    PLAY DISCS IN VERIOUS WAYS PROGRAM PLAY (DVD) You may program the title and chapter on a disc and play them in the programmed order. Push "PROGRAM" button, the screen shows: PROGRAM N ote: Input the sequence number you want to program playing.

  • Page 28: Digest Play (Dvd)

    DIGEST PLAY (DVD) Push "INTRO" button when the unit is playing disc, the screen shows : Push direction button to select the digest type. And push “PLAY” button. N ote: • TITLE DIGEST The player will play 5 seconds each title. After moving the cursor in the position “--”, push NUMBER button to select the title and push PLAY button.

  • Page 29: Play Mp3 Or Pic-Cd Disc

    PLAY DISCS IN VERIOUS WAYS PLAY MP3 OR PIC-CD DISC USE NUMBER BUTTONS TO SELECT TRACKS (MP3 OR PIC-CD) The screen will display as right after the disc is loaded Each time you press PROGRAM button, FOLDER and FILE LIST appear one by one.
  • Page 30 SELECT PLAYING MODE (MP3 OR PIC-CD) Push "REPEAT" button, you can select "SINGLE", "REPEAT ONE", "FOLDER REPEAT" "FOLDER", "SHUFFLE" and "RANDOM". • Single mode: the player will stop after finished playing the current item • Repeat one mode: repeat the current item •...

  • Page 31: Function Setting

    FUNCTION SETTING MENU SETTING According to the recorded information and external equipment, set the following functions for DVD to obtain the best playing status. Push "SETUP" button to set the main menu. GENERAL PAGE TV TYPE AUTO NTSC TV DISPLAY NORMAL/PS NORMAL/LB 16:9 WIDE...

  • Page 32: Basic Navigation

    BASIC NAVIGATION To navigation through the setting on the screen, use the direction buttons to scroll through the list of settings and use “PLAY” button to select the high lighted function. SETUP MENU Press the SETUP button to enter the On Screen Display and to exit at any time. In each of the menus, selecting MAIN PAGE (SETUP menu) will immediately return you to the initial screen.

  • Page 33: General Setup

    FUNCTION SETTING GENERAL SETUP TV TYPE You may select according to the colour system of the TV to be connected. • Select "PAL" for a PAL TV. • Select "AUTO" for a multi-system TV. • Select "NTSC" for a NTSC TV. TV DISPLAY NORMAL/PS This is selected when the unit is...

  • Page 34: Osd Language

    Dolby Digital, DTS and MPEG DVD is played, the optical or coaxial port will output in PCM 2-channel format. • SPDIF/PCM Select this when the DVD player is connected with a TV or a power amplifier through audio cord. CAPTIONS The hidden subtitle is shown or turn off.

  • Page 35: Dolby Digital Setup

    FUNCTION SETTING DOLBY DIGITAL SETUP DUAL MONO This is the output mode of the L and R signals of the set audio output. If it is set to "MIX MONO", the function only works when the DVD being played is 2.0-channel. •...
  • Page 36 DISC MENU • Selecting Disc Menu language. Please set it as the preferred DISC MENU language. In case the DISC MENU language is set and recorded in the DISC, it is automatically played in the set language in every playing. For example, English is set and recorded as a DISC MENU language in the DISC, it is played in English.

  • Page 37: Others

    OTHERS TON CONTROL You may change the pitch to adapt to your voice • Push to raise the pitch. Each time you push the button, the pitch is raised by one step. It can be raised by 7 steps at the most. •...

  • Page 38: Troubleshooting

    TROUBLESHOOTING If you experience the following problems while using the unit, this troubleshooting guide can help you. • NO SOUND - Check if the unit is connected securely. - Make sure you operate the TV or amplifier correctly. • NO IMAGE , IMAGE ROLLS AND NO COLOR - Check if the unit is connected securely.

  • Page 39: Technical Specifications

    OTHERS TECHNICAL SPECIFICATIONS Laser Video Frequency response Signal/noise ratio Channel separation Dynamic range Analog Output Audio Digital Composite Output Video S-video Component Power supply Power consumption Dimensions (W x H x D) Weight Notes : Design and specifications in this owner’s manual are subjected to change without prior notice to improve quality and function.
