Grandstream Networks GWN7664ELR Quick Installation Manual

Grandstream Networks GWN7664ELR Quick Installation Manual

High-performance outdoor ax6000 wi-fi 6 access point
Hide thumbs Also See for GWN7664ELR:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Grandstream Networks, Inc.
126 Brookline Ave, 3rd Floor
Boston, MA 02215. USA
Tel : +1 (617) 566 - 9300
www.grandstream.com
GWN7664ELR
High-Performance Outdoor AX6000 Wi-Fi 6 Access Point
Quick Installation Guide
please visit www.grandstream.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWN7664ELR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grandstream Networks GWN7664ELR

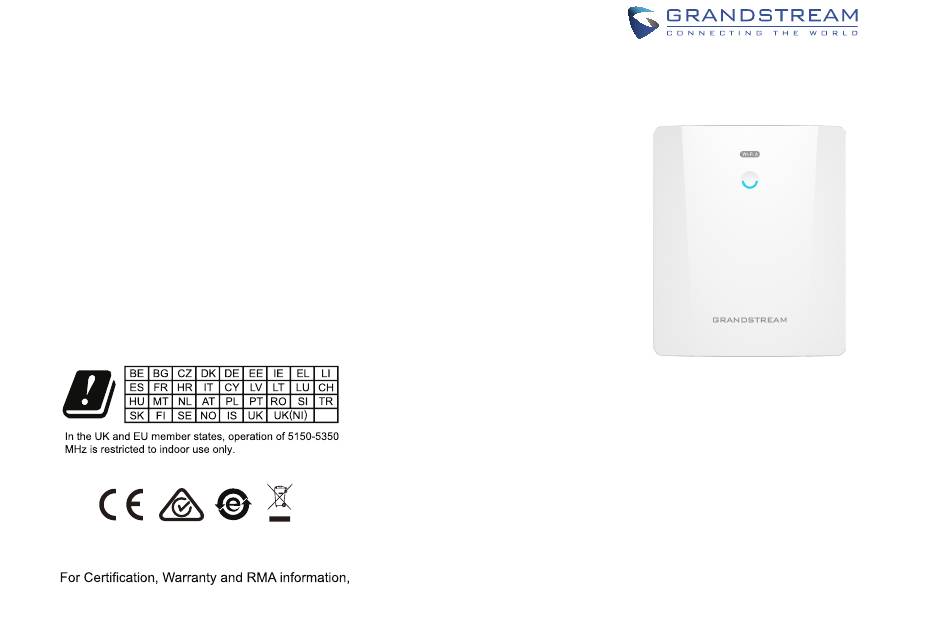

  • Page 1 Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9300 www.grandstream.com GWN7664ELR High-Performance Outdoor AX6000 Wi-Fi 6 Access Point Quick Installation Guide please visit www.grandstream.com...
  • Page 2 Content English..................1 ................8 简体中文 Español................10 Français................17 Deutsch................24 Italiano................31 Português................    3 8 Русскй.................45...
  • Page 3: Package Contents

    • Please take lightning protection measures during installation (a lightning Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN7664ELR. rod is required and the device must be reliably grounded). It is recommend- Step 2: Plug the other end into the uplink port of the PoE+ switch or PoE+ ed to use a surge protection device.
  • Page 4: Hardware Installation

    HARDWARE INSTALLATION Wall Mount GWN7664ELR can be mounted on the wall or on a metal bar, Please 1. Please refer to the waterproof kits installation. refer to the following steps for the appropriate installation. 2. Connect the Ethernet (RJ45) or Fiber (SFP module) cable to the correct GWN7664ELR port and tighten the waterproof joints.
  • Page 5: Accessing The Configuration Interface

    Pole Mount CONNECT TO GWN7664ELR DEFAULT Wi-Fi NETWORK GWN7664ELR can be used as standalone access point out of box, or after 1. Please refer to the waterproof kits installation. factory reset with Wi-Fi enabled by default. 2. Connect the Ethernet (RJ45) or Fiber (SFP module) to the correct GWN7664ELR port and tighten the waterproof joints.
  • Page 6 GWN76xx Access Point, GWN Router Series, GWN.Cloud or GWN Man- • 不要将本设备暴露在环境湿度超过如下范围外的环境中:10-90%RH (无冷 ager, otherwise the configuration interface cannot be accessed. 凝)。 ● If the GWN7664ELR is already paired, make sure to unpair it first, or do a • 系统启动或固件升级期间不要中断电源。这可能会损坏设备件,并 导致设备故 factory reset. 障。...
  • Page 7: Contenido Del Paquete

    SFP de 2,5 Gigabit y un puerto Ethernet de 2,5 Gigabit con PoE+, el GWN7664ELR es un punto de acceso Wi-Fi exterior ideal para empresas, oficinas de varios pisos, almacenes, hospitales , escuelas y más.
  • Page 8: Instalación De Hardware

    INSTALACIÓN DE HARDWARE Kit de protección a prueba de agua para las interfaces El GWN7664ELR puede ser montado en la pared o en una barra de metal. Por 1x Tornillo 6x Tornillos favor, refiérase a los pasos siguientes para la instalación apropiada.
  • Page 9 65) y los tornillos (HM 5,0 x12). 6. Enderece el final de las abrazaderas de metal y deslicelas desde la parte tras- 6. Fije el punto de acceso GWN7664ELR asegurando el soporte de montaje con era del Soporte Base. los tornillos de expansión en la pared.
  • Page 10 MAC en la parte posterior de la unidad. ACESSO A LA INTERFAZ DE CONFIGURACIÓN Un ordenador conectado al SSID del GWN7664ELR, o en la misma red que el GWN7664ELR puede descubrir y acceder a su interfaz de configuración usando uno de los siguientes métodos:...
  • Page 11 • Veuillez prendre des mesures de protection contre la foudre lors de l’instal- lation (un paratonnerre est nécessaire et l’appareil doit être mis à la terre de Étape 1 : Brancher un câble Ethernet RJ45 dans le port réseau du GWN7664ELR. manière fiable). Il est recommandé d’utiliser un dispositif de protection contre Étape 2 : Brancher l’autre extrémité...
  • Page 12: Installation Physique

    INSTALLATION PHYSIQUE Montage Mural GWN7664ELR peut être monté sur le mur ou sur poteau. Veuillez se référer aux 1. Veuillez vous référer à l’installation des kits imperméables. étapes suivantes pour l’installation appropriée. 2. Connecter le câble Ethernet (RJ45) ou Fibre (module SFP) au port correct du GWN7664ELR et serrer les joints imperméables.
  • Page 13 GWN7664ELR. Après la mise sous tension du GWN7664ELR et connexion au réseau, le 4. Assembler le support de base et le support de montage avec la vis (HM 5.0 x GWN7664ELR diffusera un SSID par défaut en fonction de son adresse MAC 65) et les vis (HM 5.0 x12).
  • Page 14 10% bis 90% (nicht kondensierend) genutzt werden. • Si le GWN7664ELR est déjà associé, assurez-vous de le dissocier ou de faire • Die Stromversorgung darf während des Start- bzw. Upgradevorgangs nicht un- une réinitialisation aux paramètres d’usine.
  • Page 15 HARDWARE-INSTALLATION Dichtungssätze für Schnittstellen Der GWN7664ELR kann sowohl an der Wand, als auch an der Decke montiert werden. Beide Varianten sind nachfolgend beschrieben. 1x Schraube 6x Schraube (HM 5.0 x 65) (HM 5.0 x 12) Installation der Wasserdichtungskits 1x SFP...
  • Page 16 Dies kann per Hand, oder mit einem passenden Schraubendreher 65) und den Schrauben (HM 5,0 x 12) montieren. erfolgen. 6. Den GWN7664ELR-Accesspoint an der Montagehalterung und diese mit den Er- 6. Führen Sie die Schellen durch den bereits montierten Montage-Sockel. weiterungsschrauben an der Wand befestigen.
  • Page 17 • Für die Einhaltung der im jeweiligen Anwendungsland gültigen Regularien für Fre- quenzen, Übertragungsbandbreite, Sendeleistung usw. ist der Anwender verant- wortlich. • Um einen oder mehrere GWN7664ELR über die Cloud zu verwalten, wechseln Sie bitte zu https://www.gwn.cloud Die GNU GPL Lizenz ist in der Gerätesoftware hinterlegt und kann über die Web-Schnittstelle unter my_device_ip/gpl_license (Endgerät_ip/gpl_Lizenz aufgerufen werden.
  • Page 18: Contenuto Della Confezione

    Ethernet da 2,5 Gigabit con PoE+ e una porta SFP da 2,5 Gigabit, il GWN7664ELR è un access point Wi-Fi da esterno ideale per aziende, uffici a più piani, magazzini, ospedali, scuole e molto altro.
  • Page 19: Installazione Hardware

    4. Collegare l’Ethernet (RJ45) o la fibra (modulo SFP) alla porta appropriata, quin- di avvitare il dado di serraggio anteriore con la porta del GWN7664ELR e avvi- tare il dado di serraggio posteriore con quello anteriore.
  • Page 20 1. Individuare il mac address sull’etichetta posizionata nella parte bassa dell’ap- parato o sulla confezione. Lato posteriore del 2. Da un computer collegato alla stessa rete del GWN7664ELR, digitare il seg- GWN7664ELR uente indirizzo usando l’indirizzo MAC del GWN7664ELR sul proprio browser https://gwn_<mac>.local...
  • Page 21: Conteúdo Do Pacote

    Wi-Fi na nuvem GWN.Cloud e local GWN Manager da Grandstream. O GWN7664ELR é o AP Wi-Fi ideal para a implantação de Wi-Fi de voz e oferece uma conexão perfeita com os telefones IP Wi-Fi de voz e vídeo da Grandstream.
  • Page 22: Instalação Do Hardware

    INSTALAÇÃO DO HARDWARE Kit de proteção à prova d’água para interfaces O GWN7664ELR pode ser instalado na parede ou em uma barra metálica. Por 1x Parafuso 6x Parafuso favor consulte os passos listados abaixo para a correta instalação. (HM 5.0 x 65) (HM 5.0 x 12)
  • Page 23 1. Consulte a instalação dos kits impermeáveis. 1. Consulte a instalação dos kits impermeáveis. 2. Conecte o cabo Ethernet (RJ45) ou Fibra (módulo SFP) à porta GWN7664ELR 2. Conecte o cabo Ethernet (RJ45) ou Fibra (módulo SFP) à porta GWN7664ELR correta e aperte as juntas impermeáveis.
  • Page 24 é “admin” e a senha aleatória padrão pode ser encontrada Depois de abrir a caixa do GWN7664ELR e conecta-lo à rede, o GWN7664ELR na tag MAC do GWN7664ELR). irá transmitir o SSID padrão baseado no endereço MAC GWN[últimos 6 dígitos da MAC] e uma senha aleatória.
  • Page 25: Обзор Продукта

    ОБЗОР ПРОДУКТА Водонепроницаемые комплекты для интерфейсов GWN7664ELR - это точка доступа Wi-Fi 6 стандарта 802.11ax для средних и крупных предприятий, которым необходимо обеспечить большой радиус покрытия 1x Винта (HM 5.0 6x Винта на открытых площадках. Она выполнена в защищенном корпусе с уровнем...
