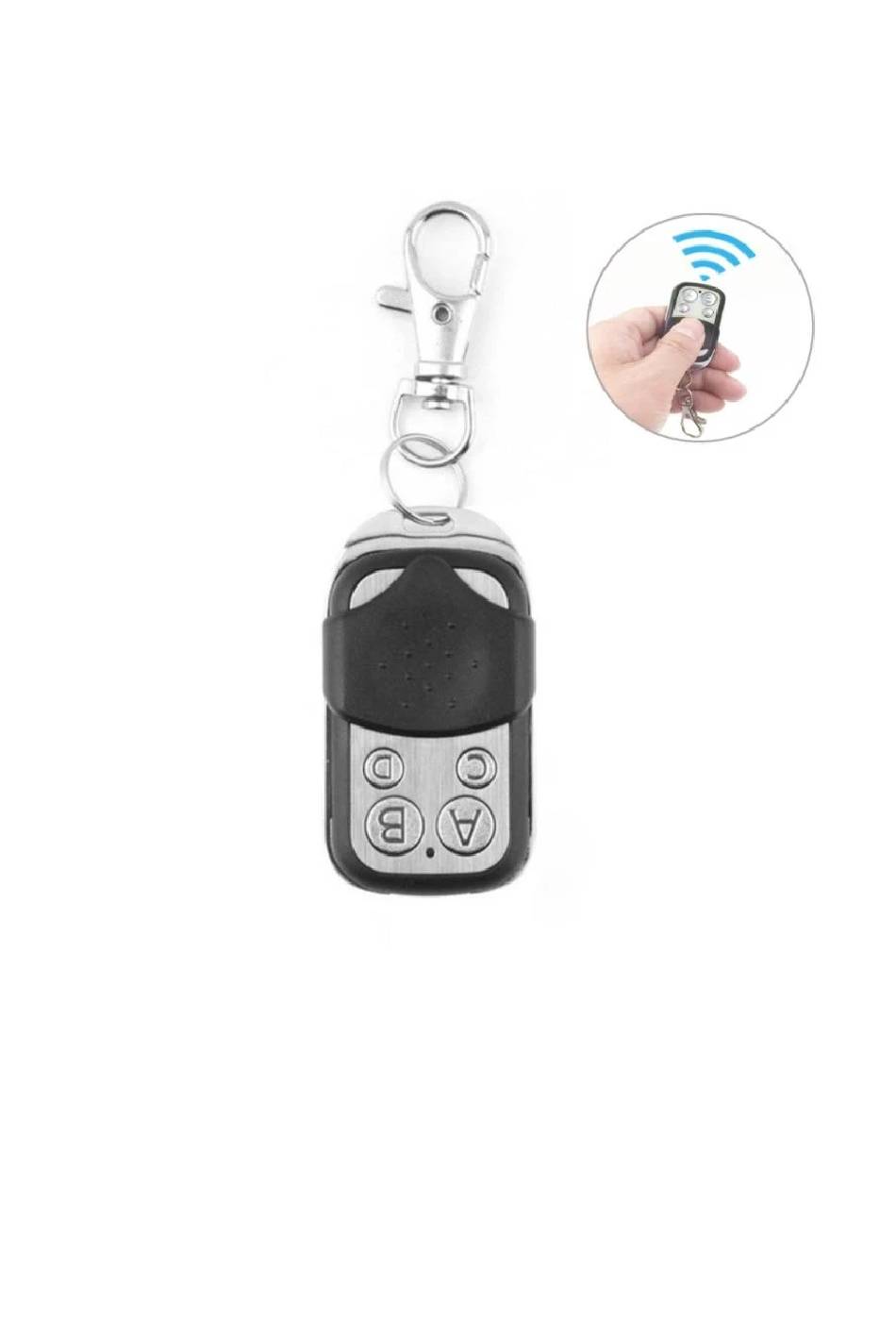

- Page 1 4-BUTTON WIRELESS REMOTE CONTROL FOR GARAGE DOOR KT01-4...
- Page 2 Specifications: - Working Voltage: DC 12V (27A battery included) - Operating Current: ≤ 8mA - Working Frequency: 433.92 MHz (Optional: 315 MHz) - Modulation Mode: ASK (AM) - Transmission Power: ≤ 100mW - Emission Distance: 50 to 100 meters (tested) - Encoding Type: Self-encoded Programming instructions Important notice: Please ensure the operating frequency of the copied remote control...
- Page 3 Code clone 1. Place the original remote and the clone remote close together. The distance should be 10mm or less. 2. Press and hold the button to be programmed on both remotes. 3. Hold until the LED on the clone remote flashes steadily. The blue LED will flash quickly three times, pause, then flash steadily for successful programming.
