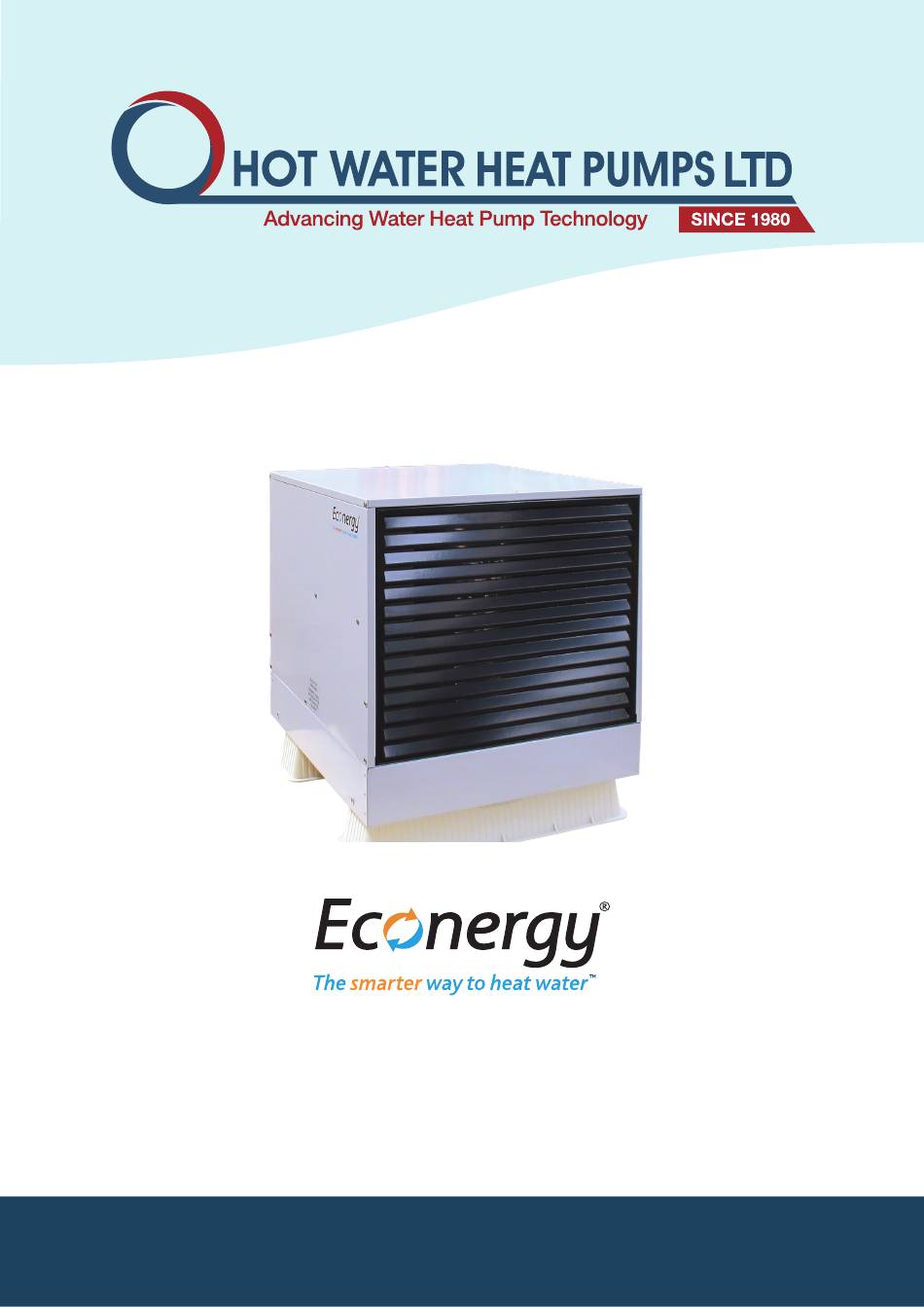

- Page 1 HP4000LT Heat Pump Water Heater User Manual...
- Page 2 IMPORTANT A warranty registration/installation declaration form is enclosed separately for installer to complete and return. A copy of this information is to be completed by installer on the back of this manual. Please read and retain this manual in a safe place. Service Phone: 0800 33 66 33 Service Agents: www.econergy.co.nz...
-
Page 3: Table Of Contents
Going Away ..........................9 Troubleshooting ......................10 Econergy® HP Series Water Heater Specifications ...........12 Heat Pump Water Heater —Six Year Warranty Information ........14 Warranty Service Exceptions ....................14 Warranty Exclusions ......................14 Warranty Registration Installation Declaration ............15 Hot Water Heat Pumps Ltd... - Page 4 Hot Water Heat Pumps Ltd...
-
Page 5: Important Information
It also means you will enjoy the protection of a factory- backed three year parts and labour warranty (refer to page 14 for terms and conditions). Econergy HP4000LT Heat Pump Water Heater User Manual... - Page 6 For best performance, the Econergy® heat pump water heater can be connected to an Econergy® duplex stainless steel heat pump ready hot water cylinder. This will ensure the last few percent savings are achieved and ensure the longest service life of the total system. Hot Water Heat Pumps Ltd...
-
Page 7: Heat Pump Operation
Note: If the power light is not glowing, the power to the hot water circuit may have been turned off by the power supply authority, this can happen up to 7 hours per day and is perfectly normal. Econergy HP4000LT Heat Pump Water Heater User Manual... -
Page 8: Solar Mode (Optional)
When the available hot water at the top of the cylinder gets low the heat pump will switch on for one hour or until the top sensor is satisfied. This ensures a limited supply of hot water available in the morning. Hot Water Heat Pumps Ltd... -
Page 9: Maintenance
Note: There may be a time delay up up to eight minutes until the unit starts heating. Econergy HP4000LT Heat Pump Water Heater User Manual... -
Page 10: Troubleshooting
Ripple control activated. Wait several hours until peak load time is over. If ripple remains out, contact power company to address the problem. If hot water is immediately required contact electrician to override ripple control. Hot Water Heat Pumps Ltd... - Page 11 Water is dripping from This is normal as the unit No action required. rear of unit (behind finned will remove moisture in evaporator). the air above 70% RH (relative humidity). Econergy HP4000LT Heat Pump Water Heater User Manual...
-
Page 12: Econergy® Hp Series Water Heater Specifications
Performance Specifications* HP4000LT Heat output 3600W Rated input 1000W Recovery rate 67L/hr Efficiency (COP) 3.8W/W Water/Connections HP4000LT Min Supply Pressure 50kPa Max Supply Pressure 800kPa Min/Max Inlet Water Temperature 5ºC – 50ºC Flow/Return Connections RP½”/15mm Hot Water Heat Pumps Ltd... - Page 13 Water/Connections HP4000LT Condensate Drain 15mm Max Total Dissolved Solids 250mg/L Max Saturation Index +0.80 Zone 1 3–8 people Zone 2 2–6 people *Rated at EN255 Conditions (15ºC/15ºC/60ºC/70ºC) (Cold Water/Ambient Air/Hot Water/70%RH). Econergy HP4000LT Heat Pump Water Heater User Manual...
-
Page 14: Heat Pump Water Heater -Six Year Warranty Information
The comprehensive labour warranty is for 3-years. To be able to claim against this warranty, the owner must send a completed “Installation Declaration Form”, supplied with this manual upon completion of installation to: Hot Water Heat Pumps Ltd, PO Box 21586, Henderson, Auckland 0650 or email: info@waterheating.co.nz Warranty Service Exceptions 1. -
Page 15: Warranty Registration Installation Declaration
Secondary Installer Name (Electrician or Plumber) Secondary Installer Email Address Signed Date 0800 33 66 33 • www.waterheating.co.nz • info@waterheating.co.nz 3 Corban Avenue, Henderson, Auckland 0612 • PO Box 21586, Henderson, Auckland 0650 Econergy HP4000LT Heat Pump Water Heater User Manual... - Page 16 P: 09 838 9444/0800 33 66 33 W: www.waterheating.co.nz 3 Corban Avenue, Henderson, Auckland 0612 PO Box 21586, Henderson, Auckland 0650...
