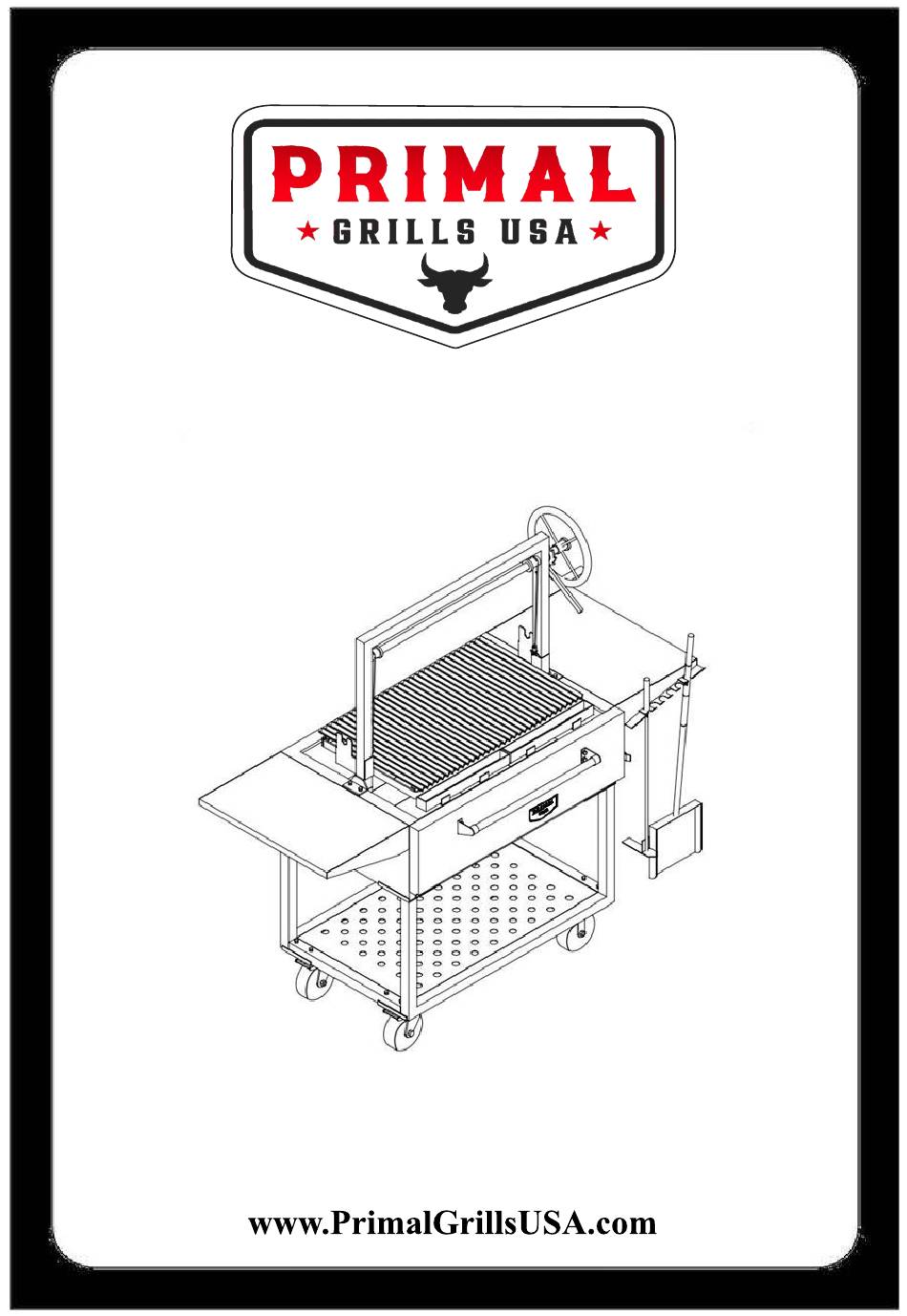

- Page 1 INSTALLATION MANUAL FOR PG-LF32...
- Page 3 Liability Disclaimer Primal Grills USA is not liable for issues or damages resulting from incorrect interpretation of this manual or unsafe product usage. We're also not responsible for any environmental or health impacts due to charcoal or wood burning.
- Page 4 HARDWARE KIT FOR PRIMAL GRILL PG-LF 32...
- Page 5 METRIC TOOLS REQUIRED FOR GRILL ASSEMBLY (NOT INCLUDED WITH THE GRILL) 1) RACHET AND SOCKET FOR M13 BOLTS 2) ALLEN WRENCH 8 MM 3) COMBINATION WRENCH FOR M13 BOLTS 4) PHILLIPS SCREWDRIVER...
- Page 7 J-TYPE SS CLAMP FOR HANGING THE BUCKET...
- Page 8 INSTALLATION OF LEG FRAMES PLACE THE FRONT FRAME, IDENTIFIED BY A STICKER, ON THE FRONT SIDE OF THE GRILL WITH THE DOOR. THE DIRECTION OF THE SINGLE OPEN FLANGE SHOULD BE IN THE DIRECTION OF THE GRILL DOOR USING THE M8 X 20MM LONG BOLTS. PLACE THE REAR FRAME, IDENTIFIED BY A STICKER, ON THE REAR SIDE OF THE GRILL.
- Page 9 2 QTY SWIVEL CASTORS WITH BRAKES...
- Page 10 INSTALLATION OF LEG FRAME SUPPORTS INSTALL BOTH OF THE LEFT AND RIGHT LEG FRAME SUPPORT TUBES ON TO THE STAND FRAME USING M8 BOLTS WITH A WASHER & NUT ON EACH BOLT IN DIRECTION GOING FROM BOTTOM TO TOP.
- Page 12 FIRE BRICKS 15NOS.
- Page 16 INSTALLATION OF THE GRATES ON GRATE FRAME...
- Page 18 FINAL ASSEMBLY OF YOUR NEW PRIMAL GRILLS LIVE FIRE PG-LF 32...
-
Page 19: Scan The Qr Code
PROTECT YOUR NEW PRIMAL GRILLS LIVE FIRE PG-LF 32 GRILL Scan the QR code! For Complete Warranty Information, please visit: https://primalgrillsusa.com/pages/warranty-returns-legal-disclaimers/ You will be requested to provide the following required informa on along with a photo of the grill serial number placard and a copy of your receipt: Date Purchased: ___________________________ Live Fire Grill Name: ________________________ Serial Number: ______________________________...
