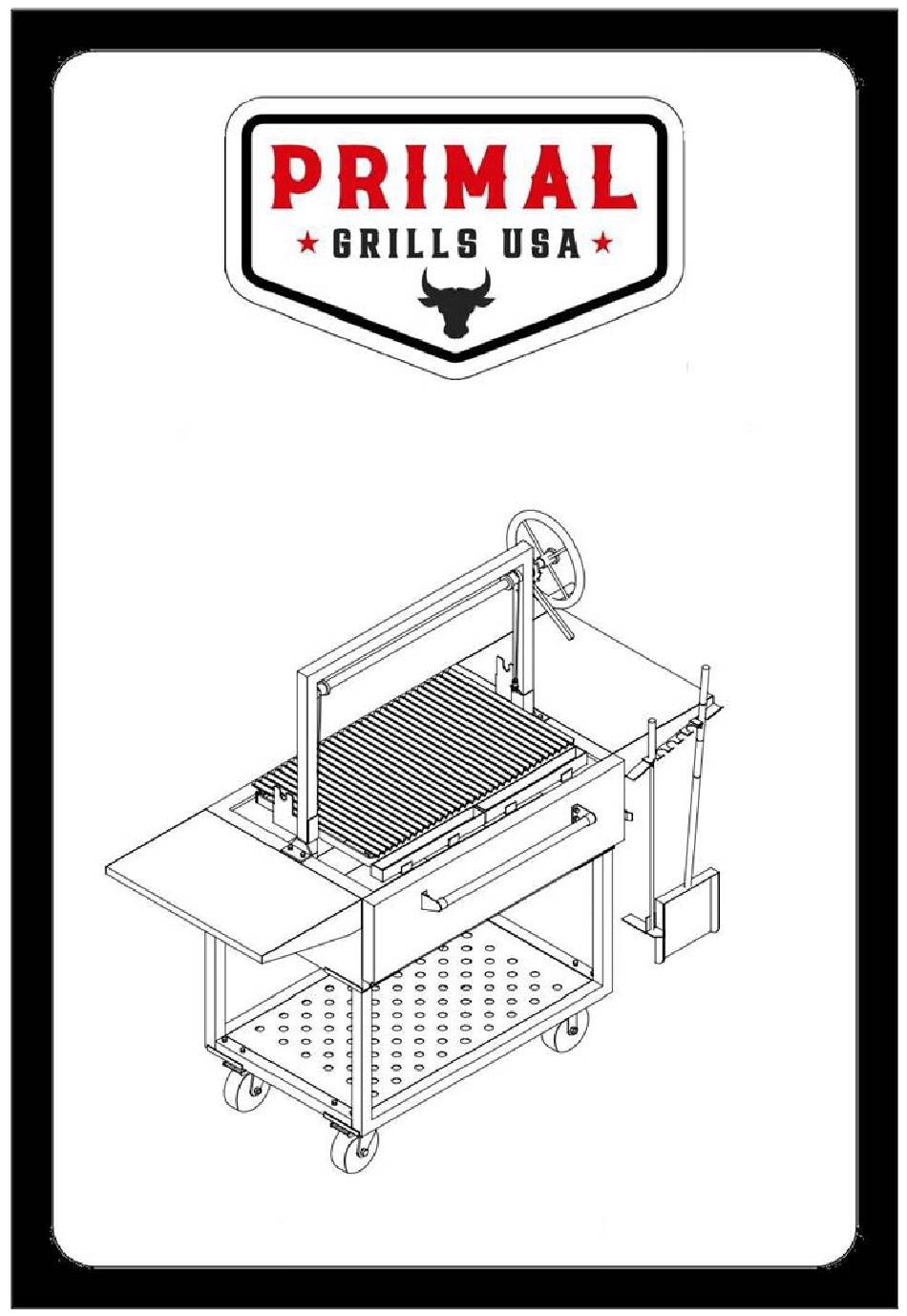

- Page 1 ASSEMBLY MANUAL FOR PG-LF40 www.PrimalGrillsUSA.com...
- Page 2 Liability Disclaimer Primal Grills USA is not liable for issues or damages resulting from incorrect interpretation of this manual or unsafe product usage. We're also not responsible for any environmental or health impacts due to charcoal or wood burning.
- Page 3 HARDWARE KIT FOR PRIMAL GRILL PG-LF40 1) SS BOLTS WITH WASHERS (M8 X 20 MM LONG) -16 PCS USE: FOR ATTACHING THE GRILL BODY WITH THE STAND 2) SS BOLTS & NUTS WITH WASHERS (M8 X 20 MM LONG) -16 PCS USE: FOR INSTALLING THE CASTORS ON THE STAND 3) SS BOLTS &...
- Page 4 METRIC TOOLS REQUIRED FOR GRILL ASSEMBLY (NOT INCLUDED WITH THE GRILL) 1) RACHET AND SOCKET FOR M13 BOLTS 2) ALLEN WRENCH 8 MM 3) COMBINATION WRENCH FOR M13 BOLTS 4) PHILLIPS SCREWDRIVER...

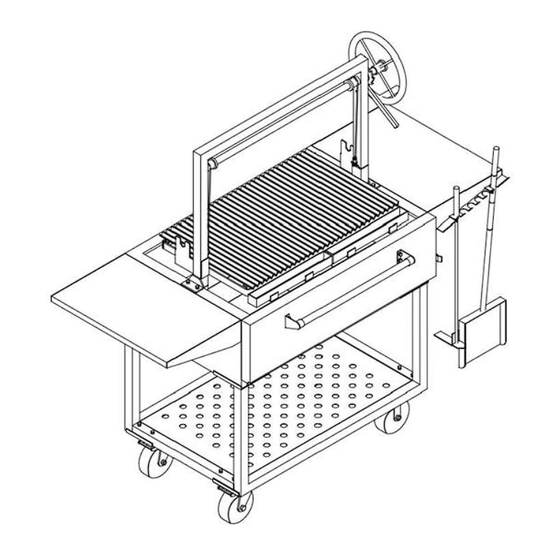

- Page 5 EXPLODED VIEW OF PRIMAL GRILLS PG-LF40...
- Page 6 UNBOXING & ARRANGING THE GRILL BODY ON A CLEAN PROTECTIVE SURFACE • PLACE THE MAIN BODY OF THE GRILL BODY WITH THE CHARCOAL AREA FACE DOWN ON A FLAT SURFACE, AS SHOWN, USING THE CARDBOARD BOX AS A PROTECTIVE SURFACE WITH THE GRILL DOOR FACING IN THE DIRECTION OF THE PERSON ASSEMBLING THE GRILL.
- Page 7 INSTALLATION OF LEG FRAMES PLACE THE FRONT FRAME, IDENTIFIED BY A STICKER, ON THE • FRONT SIDE OF THE GRILL WITH THE DOOR. THE DIRECTION OF THE SINGLE OPEN FLANGE SHOULD BE IN THE DIRECTION OF THE GRILL DOOR USING THE M8 X 20MM LONG BOLTS. PLACE THE REAR FRAME, IDENTIFIED BY A STICKER, ON THE •...
- Page 8 INSTALLATION OF CASTOR WHEELS INSTALL THE SWIVEL TYPE 6" CASTORS WITH BRAKES • ON THE FLANGES ON THE FRONT-LEFT & REAR-LEFT SIDE CORNERS OF THE GRILL BODY WITH M8 BOLTS USING A WASHER & NUT ON EACH BOLT IN THE DIRECTION GOING FROM TOP TO BOTTOM.
- Page 9 INSTALLATION OF LEG FRAME SUPPORTS INSTALL BOTH OF THE LEFT AND RIGHT LEG FRAME • SUPPORT TUBES ON TO THE STAND FRAME USING M8 BOLTS WITH A WASHER & NUT ON EACH BOLT IN DIRECTION GOING FROM BOTTOM TO TOP.
- Page 10 INSTALLATION OF THE BOTTOM SHELF, DOOR HANDLE, AND DOOR LOCKING MECHANISM SLIDE THE BOTTOM SHELF THROUGH THE OPENING UNDER GRILL DOOR AND LAY FLAT ON TOP OF CASTOR FLANGES. INSTALLING THE HANDLE: USE THE M6 X 16MM LONG CSK SCREWS TO AFFIX THE SHANK AND THE HANDLE ON TO THE GRILL BODY WITH A PHILLIPS SCREWDRIVER.
- Page 11 PLACEMENT OF THE REFRACTORY BRICKS...
- Page 12 INSTALLATION OF THE GRATE FRAME...
- Page 13 ASSEMBLY OF CRANK WHEEL MECHANISM...
- Page 14 INSTALLATION OF CRANK WHEEL MECHANISM...
- Page 15 INSTALLATION OF THE GRATES ON GRATE FRAME...
- Page 16 INSTALLATION OF THE SIDE SHELVES ON THE GRILL BODY USE 7 QTY N0.10 x 0.75’’ LONG SELF TAPPING SCREWS TO AFFIX THE SHELVES ON BOTH SIDES OF THE GRILL BODY USE 1 QTY SELF TAPPING SCREW ON THE MIDDLE OF THE SHELF TO HOLD THE SHELF IN PLACE.
- Page 17 FINAL ASSEMBLY OF YOUR NEW PRIMAL GRILLS LIVE FIRE PG-LF40...
-
Page 18: Scan The Qr Code
201 and 202, our choice of material stands for quality and longevity. There are specific conditions that can still cause issues and are not covered under the Primal Grills USA warranty. Key factors include: Chemical Exposure: Exposure to aggressive chemicals, alkalis, acids, or extreme conditions can lead to rust. - Page 19 TRANSFORM YOUR BACKYARD INTO AN OPEN FIRE COOKING PARADISE WITH PRIMAL GRILLS Primal Grills USA HQ 16228 Bethel Heights Road Gentry, AR 72734 Sales @ Primal Grills USA Jon Faulkenberry (479) 619-9550 Jon@PrimalGrillsUSA.com Mon to Fri; 9am to 4pm Central Standard Time...
