Summary of Contents for Daewoo GB14F8T1

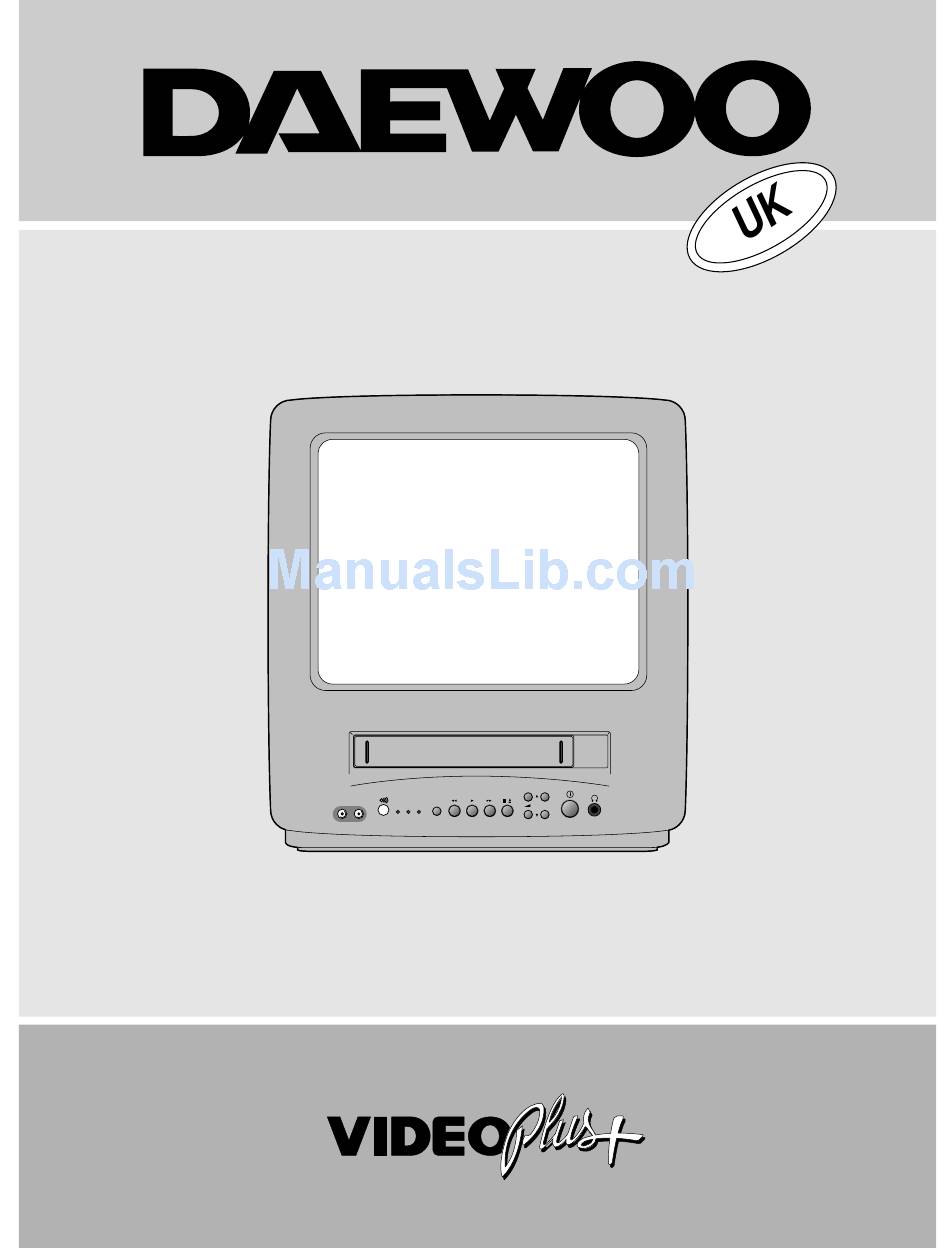

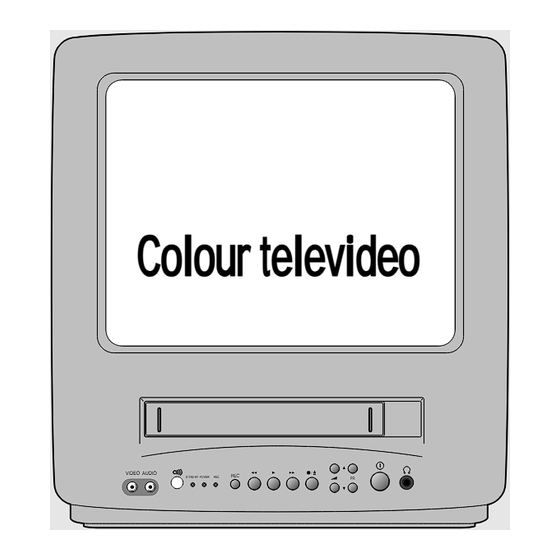

- Page 1 Instruction manual Colour televideo VIDEO AUDIO STAND-BY POWER GB14F8T1 GB20F8T2 GB21F1T2...
- Page 3 W O R T H Please keep the video machine’s guarantee card and receipt safe for warranty purposes. k n o w i n g Precautions Do not… Make sure… NOTE : If the receiver is moved or placed in a different direction, the main power switch must be Read carefully through this manual to familiarise yourself with this high- quality televideo.
-
Page 5: Table Of Contents
Before doing anything with the televideo, please read the chapter “Initial installation”. Contents Controls The remote control unit The televideo, On-screen display Initial installation Moulded plugs Connecting up the televideo, Fitting the remote control’s batteries Setting time and date Tuning in stations, EDIT, Manual Tuning Playing cassettes Playing back Still, Variable picture search, Continuous play... -
Page 6: Controls
C O N T R O L S The remote control unit max. 7 m 30˚ | 30˚ The remote control is the principle means of control, but the main playback and record functions are also available on the front of the machine. Press the main power switch on the front panel to turn on the set, then press button. -
Page 7: The Televideo, On-Screen Display
Press the main power switch on the front panel to turn on the set, then press POWER( The televideo VIDEO AUDIO STAND-BY POWER Remote sensor Video input Audio input Indicator STAND BY : STAND BY(Red) POWER : Operation(Green) REC : Record(Yellow) REC : Record REW / FF: Rewind and Fast forward wind... -
Page 8: Initial Installation
I n i t i a l INSTALLATION Moulded plugs If the terminals in the plug are unmarked or you are in any doubt as to the correct connections, consult a qualified electrician. For your own safety read the following instructions carefully before attempting to connect this unit to mains. - Page 9 This symbol means that this unit is double insulated, an earth connection is not necessary. Caution : To prevent electric shock, do not remove any covers. Caution : No user serviceable parts inside, refer servicing to qualified service personnel. Caution : When operating this unit on 220-240V mains supply, please note that when the power switch is in the off mode, the unit is not disconnected from the mains supply.
-
Page 10: Connecting Up The Televideo, Fitting The Remote Control's Batteries
Place your televideo I n i t i a l INSTALLATION Connecting up the televideo Switch off all components when connecting or disconnecting cables. Fitting the remote control’s batteries The buttons to use are marked on the following pages. horizontally on a flat, steady base so that air can circulate around it for ventilation. away from humidity and heat, magnetic fields, such as those from loudspeakers etc., and with no heavy objects placed on top. -
Page 11: Setting Time And Date
Timer controlled events require the exact time and the correct date. Press the main power switch on the front panel to turn on the set, then press button. Setting time and date MAIN MENU PICTURE TV TIMER RECORD TIMER PRESET MISCELLANEOUS SELECT ENTER... -
Page 12: Tuning In Stations, Edit, Manual Tuning 8~10
I n i t i a l INSTALLATION Tuning in stations AUTOMATIC TUNING SYSTEM Select the PRESET menu at the MAIN MENU. Place the cursor to “ATSS” with the up/down button. Press the ENTER button until the tunning screen appears above the PRESET menu. - Page 13 EDIT (MAIN MENU PRESET EDIT) EDIT NAME SKIP NAME SKIP - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
-
Page 14: Manual Tuning
I n i t i a l INSTALLATION Manual Tuning You can also call up the PRESET menu at the MAIN MENU. MANUAL TUNING Press the NUMBER Button 0…9 or PR SKIP button to select a programme number you want. SEARCH STATION NAME - - - -... -
Page 16: Playing Cassettes
P L A Y I N G c a s s e t t e s Playing back Your televideo is swiched on by the main power switch on the front panel and by button. VIDEO AUDIO PLAY ST/EJ STAND-BY POWER REC/OTR PLAY 0:00:00 STOP... -
Page 17: Still, Variable Picture Search, Continuous Play
Still STILL 0:00:00 Variable picture search 0:10:00 0:09:00 Continuous play MAIN MENU PICTURE TV TIMER RECORD TIMER PRESET MISCELLANEOUS SELECT ENTER MENU EXIT MISCELLANEOUS CHILD LOCK CHARACTER SET WEST AUTO REPEAT ON VIDEOPLUS PRESET SELECT CHANGE MENU EXIT 00:25:33 NOTE : This set has the function of NTSC playback. (SP tape only) Do not use NTSC SLP (x3) tape. -
Page 18: Recording Cassettes
R E C O R D I N G c a s s e t t e s Simple recording One touch recording-OTR The TV stations on your televideo have been tuned in (pages 8/9). The televideo is switched on. 01AB STOP 0:00:00... -
Page 19: Timer Recording Using Videoplus
For timer recordings, clock, date, and stations must be set correctly (pages 7-9). Load a cassette with its safety tab in place (see page 21) and with sufficient free space for the recording. Timer recording using VideoPlus+ VIDEOPLUS NO - - - - - - - - - INTERVAL ONCE DIGIT... -
Page 20: When Record Time Overlaps, Watching Programmes While Recording
R E C O R D I N G c a s s e t t e s When record time overlaps When setting the Programmable Timer, be careful not to overlap the preset times. If you happen to overlap the preset Programs, the END Time has priority and the overlapped Programmes cannot be recorded. -
Page 21: Normal Timer Recording
For timer recordings, clock, date, and stations must be set correctly (page 7-9). Load a cassette with its safety tab in place (see page 21) and with sufficient free space for the recording. To enter station numbers using the number buttons, type double digit numbers quickly. -
Page 22: Timer Review-Erasing Or Changing 18~19
R E C O R D I N G c a s s e t t e s Timer Review - erasing or changing Call the televideo’s “MENU”, choose “RECORD TIMER”. RECORD TIMER DATE START END 1 DAILY 16:30 16:46 --/-- --:-- --:--... - Page 23 PDC will not operate if you are not watching the programme you have set on the timer record function, although you set timer recording using PDC function your TV/VCR does not operates ‘PDC timer recording’ but operates ‘normal timer recording’. If you wish to record from a satellite receiver select under “PR”...
- Page 24 M O R E f u n c t i o n s Accessing the beginning of the next recording Accessing the beginning of the previous recording Resetting the counter to zero Accessing counter zero position Your televideo automatically sets electronic marker (index) at the beginning of each recording and timer recording.
-
Page 25: Cassettes, V-Lock, Child Lock, Mute
Cassettes Use only good quality tape cassettes with the VHS logo. You can protect your precious recordings from being wiped by breaking out the safety tab on the side of the cassette (some cassettes have a slide). Should you wish to re-use the tape after removing the tab, cover the hole with adhesive tape. -
Page 26: Picture Adjustments, Picture Type Selection, Changing On-Screen Displays
M O R E f u n c t i o n s Picture adjustments Picture type selection Changing on-screen displays MAIN MENU PICTURE TV TIMER Call up the televido’s “MAIN RECORD TIMER PRESET MENU”. MISCELLANEOUS SELECT ENTER MENU EXIT Choose “PICTURE”. -
Page 27: Television Timer, Snooze Automatic
You can program your televideo so that it switches on and/or off (with the selected station) at a time you want. Television timer MAIN MENU PICTURE TV TIMER RECORD TIMER PRESET MISCELLANEOUS SELECT ENTER MENU EXIT TV TIMER DATE TIME ON TIMER OFF TIMER SELECT... -
Page 28: Videoplus+ Guide Numbers
M O R E f u n c t i o n s VideoPlus+ guide numbers If you wish to use the VideoPlus+system for programming timer recordings, you must first allocate the 3-digit VideoPlus+guide numbers to each corresponding station number. These are given in those TV guides that publish the VideoPlus+numbers. -
Page 29: Teletext, Teletext Character Set
Teletext SWITCHING TELETEXT ON/OFF Press the TELETEXT button ( ). the index page viewed last will appear. Press the TELETEXT button to return to the TV mode. COLOUR BUTTONS IN TOP/FLOF TELETEXT A red, green, yellow and cyan field is shown at the bottom of the screen. If TOP of FLOF teletex (FASTEXT) is transmitted by the station. -
Page 30: Copying, Assembling
“AV1” (EURO AV, SCART) Using the Set the other video machine to playback and your Daewoo machine to record. Picture and sound of the selected station is always available on the EURO AV (SCART) socket, e.g. to record with another VCR. -
Page 31: Connections And Copying
Scart socket This is used to connect : a VCR, a Camcoder and a video game console or satellite TV receiver. In most case, the set changes automatically to AV mode, when the VCR connected is in playback mode. If not, press the AV button on the remote controller. The AV will be displayed on the screen with the current programme number. -
Page 32: Appendix
A P P E N D I X Before you ask a specialist Mains supply the televideo’s power indicator does not light your televideo doesn’t work Recording doesn’t start the cassette starts playback or is ejected Playback no picture poor picture quality poor still picture Remote control doesn’t work... -
Page 33: Playing Back, Simple Recording, Auto Tracking, One Touch Recording
Playing back Start playback. Stop playback. Eject the cassette. Fast forward or rewind the cassette from stop. Still picture from playback. Each press of the button advances the picture one frame. PLAY ( ) switches back to normal playback. Starting from playback you can control search speed in 2 steps either forwards ( ) or backwards... -
Page 34: Index, Technical Data
A P P E N D I X Index Aerial Assembling recordings Child Lock Cleaning Condensation Counter Euro AV Fine-tuning LP (Long Play) Menu NTSC Technical data Dimensions W x H x D Weight Power supply Voltage Power consumption System Video Channel range Channel locations... -
Page 35: Your Product Guarantee
Dear Customer Thank you for buying this Daewoo product. In the unlikely event of a failure all repair work will be carried out by your retailer or Daewoo approved service centre, for a period of 12 month from date of sale. - Page 36 A P P E N D I X Your product guarantee Your televideo is not intended for industrial use. It is designed specifically for domestic purpose.
- Page 37 Dear Customer Thank you for buying this Daewoo DAEWOO ELECTRONICS SALES UK LIMITED product. In the unlikely event of a failure all repair work will be carried out by your retailer or Daewoo approved service Daewoo Building, Wharfedale Road centre, for a period of 12 month from Winnersh Triangle Wokingham date of sale.
- Page 38 Conditions Any claims made under the terms of the quarantee must be supported by the original invoice/bill of sale issued at the time of sale. Daewoo reserve the right to refuse quarantee should any of the information on the bill of sale be removed or changed in any way after the original purchase of the product by the consumer from the retailer.
