Heathkit Q MULTIPLIER Assembly And Operation Manual page 7

yY_ WO Ne
e
S¥3a dvds

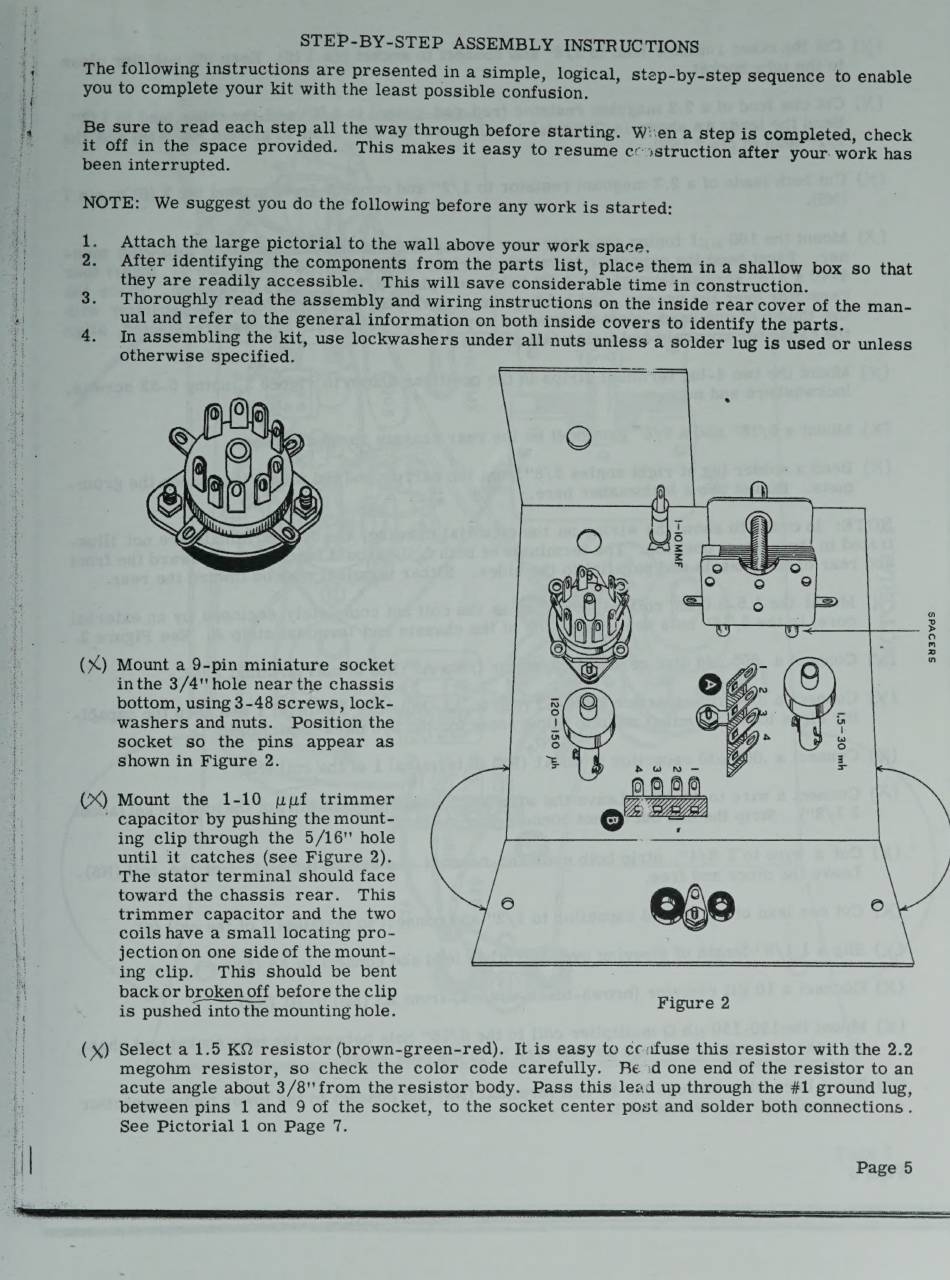

(Xx) Mount a 9-pin miniature socket
inthe 3/4" hole near the chassis
bottom, using 3-48 screws, lock-
washers and nuts. Position the
socket so the pins appear as
shown in Figure 2.
yu oe—si
(X) Mount the 1-10 pyuf trimmer
' capacitor by pushing the mount-
ing clip through the 5/16" hole
until it catches (see Figure 2).
The stator terminal should face
toward the chassis rear. This
trimmer capacitor and the two
i coils have a small locating pro-
L jectionon one side of the mount-
ing clip. This should be bent
back or broken off before the clip
is pushed into the mounting hole.
Figure 2
(X) Select a 1.5 KQ resistor (brown-green-red). It is easy to ccafuse this resistor with the 2.2
megohm resistor, so check the color code carefully. Re %3:d one end of the resistor to an
acute angle about 3/8''from the resistor body. Pass this lead up through the #1 ground lug,
between pins 1 and 9 of the socket, to the socket center post and solder both connections.
See Pictorial 1 on Page 7.
