InkMachines Scorpion X2 Manual

Tattoo machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Scorpion
Manual for
tattoo machine rev.1
InkMachines
Scorpion
Rev 1.0 / 2021-05-01
0 (34)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scorpion X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InkMachines Scorpion X2

Summary of Contents for InkMachines Scorpion X2

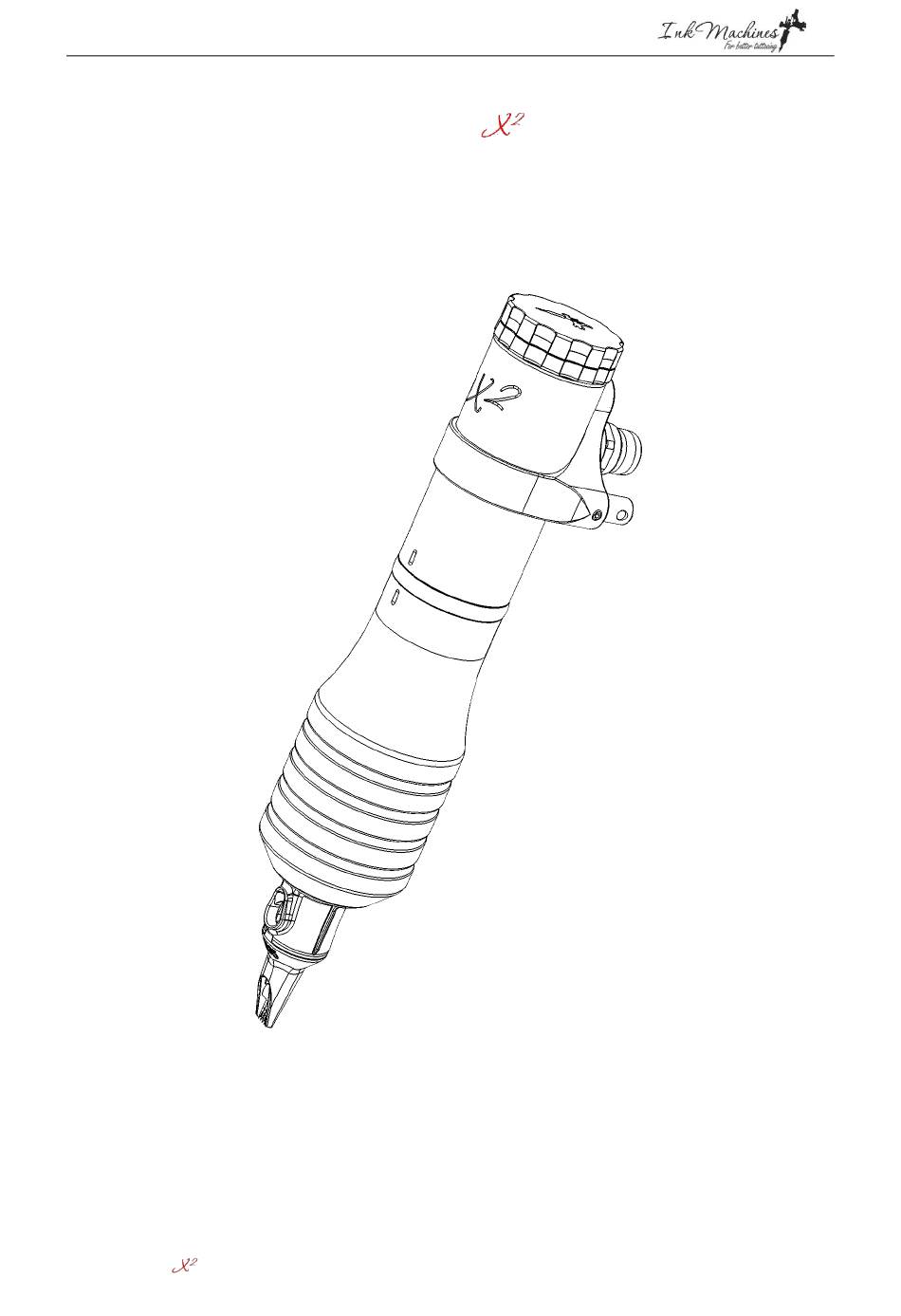

  • Page 1 Scorpion Manual for tattoo machine rev.1 InkMachines Scorpion Rev 1.0 / 2021-05-01 0 (34)
  • Page 2 Manufacturer: InkMachines Sweden AB Grusåsvägen 8 352 42 VÄXJÖ, Sweden Document history Date (YY-MM-DD) Changes Revision 2021-07-01 Released This document has been produced by InkMachines Sweden AB Grusåsvägen 8 352 45 VÄXJÖ, Sweden InkMachines Scorpion Rev 1.0 / 2021-05-01 1 (34)

  • Page 3: Table Of Contents

    Convert to Neo-cartridges ......................18 Service and maintenance ....................21 Lubrication ..........................21 Change drive magnet ......................21 Trouble shooting ........................23 Waste ..........................24 Technical specification ......................25 Scorpion X2 ..........................25 Warranty..........................26 Status Light ........................27 Part list and spare parts .....................28 Disassembly ........................30 Assembly ...........................32 App.

  • Page 4: Introduction

    Introduction Introduction Document information Information in this document is subject to change without notice. InkMachines assumes no responsibility for any errors that may appear in this document. Stylistic conventions In this manual all references texts are shown in the text font italic.

  • Page 5: Description

    Description Description Scorpion X2 is a tattoo machine intended for tattooing of humans for the use by professional tattoo artists. The machine is intended to use together with Neo or regular cartridge tattoo needles depending on the version purchased. It is prepared for wireless use with Scorpion Powerpacks and the associated wireless foot switch.

  • Page 6: Approvals

    This product complies with the Europe requirements for CE-marking towards the Machine Directive, 2006/42/EC. See Declaration of conformity in the end of the manual. Identification labels The product is labelled according to below; InkMachines Scorpion Rev 1.0 / 2021-05-01 5 (34)

  • Page 7: Safety

    Keep the product away from warm places. Customer InkMachines only provide products for professional tattoo artists and the product may only be used by professionals with knowledge about diseases and how to maintain a clean working environment and a sterile equipment.
  • Page 8 Clean the work surface thoroughly and cover the surface with plastic film before the tattoo session. • Wrap the equipment with plastic film and arrange it as described in chapter Getting started on page 9. • Follow local laws and regulations concerning the tattoo operation. InkMachines Scorpion Rev 1.0 / 2021-05-01 7 (34)

  • Page 9: Instruction

    Unpacking Note! Before unpacking make sure the area is cleaned! Standard parts delivered with the Neo-cartridge version: 1pc Scorpion X2, tattoo machine 1pc Magnet Blue (in the box). Black standard in the machine 1pc Stand for tattoo needles (For Neo-...

  • Page 10: Getting Started

    7. Turn the grip 30° clockwise. Note! The mark on the grip and the mark on the tattoo machine should be aligned when the grip is correctly fitted to the tattoo machine. InkMachines Scorpion Rev 1.0 / 2021-05-01 9 (34)
  • Page 11 Seal with tape. 10. Wrap the power supply unit with plastic film (see the manual for the power supply unit). 11. Tape the needle stand to the table. InkMachines Scorpion Rev 1.0 / 2021-05-01 10 (34)
  • Page 12 Note! When handling the needle, do not touch the part of the needle that is to be inserted into the tattoo machine InkMachines Scorpion Rev 1.0 / 2021-05-01 11 (34)
  • Page 13 (see the manual for TPS-500). Appropriate start value: 8 – 10V. 19. Adjust the needle’s protrusion (depth) with the adjustment knob. One revolution equals 2mm. 20. The tattoo machine is now ready for use. InkMachines Scorpion Rev 1.0 / 2021-05-01 12 (34)

  • Page 14: After Each Tattoo Session

    Remove the grip from the tattoo machine and sterilize it. Wipe down the machine with alcohol and stir the magnet in a cup of alcohol ( Neo version ). InkMachines Scorpion Rev 1.0 / 2021-05-01...

  • Page 15: Convert To Regular Cartridges

    Neorail cannot be used with the TPS-500 and the advantages of Neo-cartridges will be lost. Caution! InkMachines does not have responsibility for any fluids or pigments entering the machine after using other cartridges than original Neo-cartridges. InkMachines does not have responsibility for contamination or infection of any kind.
  • Page 16 Keep the magnet in a plastic bag to keep free from dirt. 4. Use the 1.3 Hex key to remove the Counterweight screw on the “1” side of the machine, remove the Counterweight. InkMachines Scorpion Rev 1.0 / 2021-05-01 15 (34)
  • Page 17 Tighten medium hard and make sure you don’t bend to the side which can damage the key or screw. InkMachines Scorpion Rev 1.0 / 2021-05-01 16 (34)
  • Page 18 Note! The mark on the grip and the mark on the tattoo machine should be aligned when the grip is correctly fitted to the tattoo machine. But is of less importance when using regular cartridges. The tattoo machine is now ready to be used with regular membrane cartridges. InkMachines Scorpion Rev 1.0 / 2021-05-01...

  • Page 19: Convert To Neo-Cartridges

    Precision tool kit No.90. 3. Mount the Counterweight on the Slide on the side marked "1". When correct mounted, the counterweight and the spring should both be located on the "1" side of the machine. InkMachines Scorpion Rev 1.0 / 2021-05-01 18 (34)
  • Page 20 6. Loosen the grip adapter screw with the 0.9 Hex key from the Precision tool kit No. 90. 7. Turn the grip adapter 90° counterclockwise and remove it from the grip. InkMachines Scorpion Rev 1.0 / 2021-05-01 19 (34)
  • Page 21 Note! The mark on the grip and the mark on the tattoo machine should be aligned when the grip is correctly fitted on the tattoo machine. Important when using Neo-cartridges. The tattoo machine is now ready to be used with Neo‐cartridges. InkMachines Scorpion Rev 1.0 / 2021-05-01...

  • Page 22: Service And Maintenance

    Service and maintenance Service and maintenance For service and repair visit www.inkmachines.com/service Caution! Changes or modifications not approved by the manufacturer could void the warranty. Lubrication The tattoo machine should be lubricated every 100-150 hours for optimal performance and service life.
  • Page 23 Check that the magnet holder is parallel to the slider before tightening the screw. Mis-alignment can damage the thread. Fasten the magnet holder with the screw. Fit the grip and then turn the grip 30° clockwise. InkMachines Scorpion Rev 1.0 / 2021-05-01 22 (34)

  • Page 24: Trouble Shooting

    The + power is transferred by a connecting pin, stay away from the ends of the adjustment with a few clicks to ensure the best connection. o If the problem remains, contact InkMachines (www.inkmachines.com) If the problem persist or if there is other problems please contact InkMachines (www.inkmachines.com) InkMachines Scorpion Rev 1.0 / 2021-05-01...

  • Page 25: Waste

    This symbol indicates that the product and its electronic accessories are not to be disposed with other house hold waste. InkMachines Scorpion Rev 1.0 / 2021-05-01 24 (34)

  • Page 26: Technical Specification

    Technical specification Technical specification Scorpion X2 Dimension, D x L Ø22 x 116 mm Weight 150 grams ( Std 30mm Alu grip ) Power connections RCA or clip cord (clip cord end diameter, max. Ø1.6 mm) Wire less ready Input voltage 0 –...

  • Page 27: Warranty

    6. More than 12 Volts have been applied to the machine. InkMachines entire aggregate liability for losses and damages for any cause related to or arising out of the purchase and/or use of the product will in no event exceed the purchase price paid for the product.

  • Page 28: Status Light

    Status light Status light InkMachines Scorpion Rev 1.0 / 2021-05-01 27 (34)

  • Page 29: Part List And Spare Parts

    Part list and spares InkMachines Scorpion Rev 1.0 / 2021-05-01 28 (34)
  • Page 30 Part list and spares InkMachines Scorpion Rev 1.0 / 2021-05-01 29 (34)

  • Page 31: Disassembly

    Disassembly InkMachines Scorpion Rev 1.0 / 2021-05-01 30 (34)
  • Page 32 Disassembly InkMachines Scorpion Rev 1.0 / 2021-05-01 31 (34)

  • Page 33: Assembly

    Assembly InkMachines Scorpion Rev 1.0 / 2021-05-01 32 (34)
  • Page 34 Assembly InkMachines Scorpion Rev 1.0 / 2021-05-01 33 (34)
  • Page 35 352 45 Växjö Sweden Equipment Tattoo machine Scorpion X2 Year of manufacturer 2021 We InkMachines Sweden AB hereby declare that the Scorpion tattoo machine specified above conforms with the following directives: Machine Directive 2006/42/EC Växjö 2021-07-01 …………………………………… Christian Johansson CEO...
