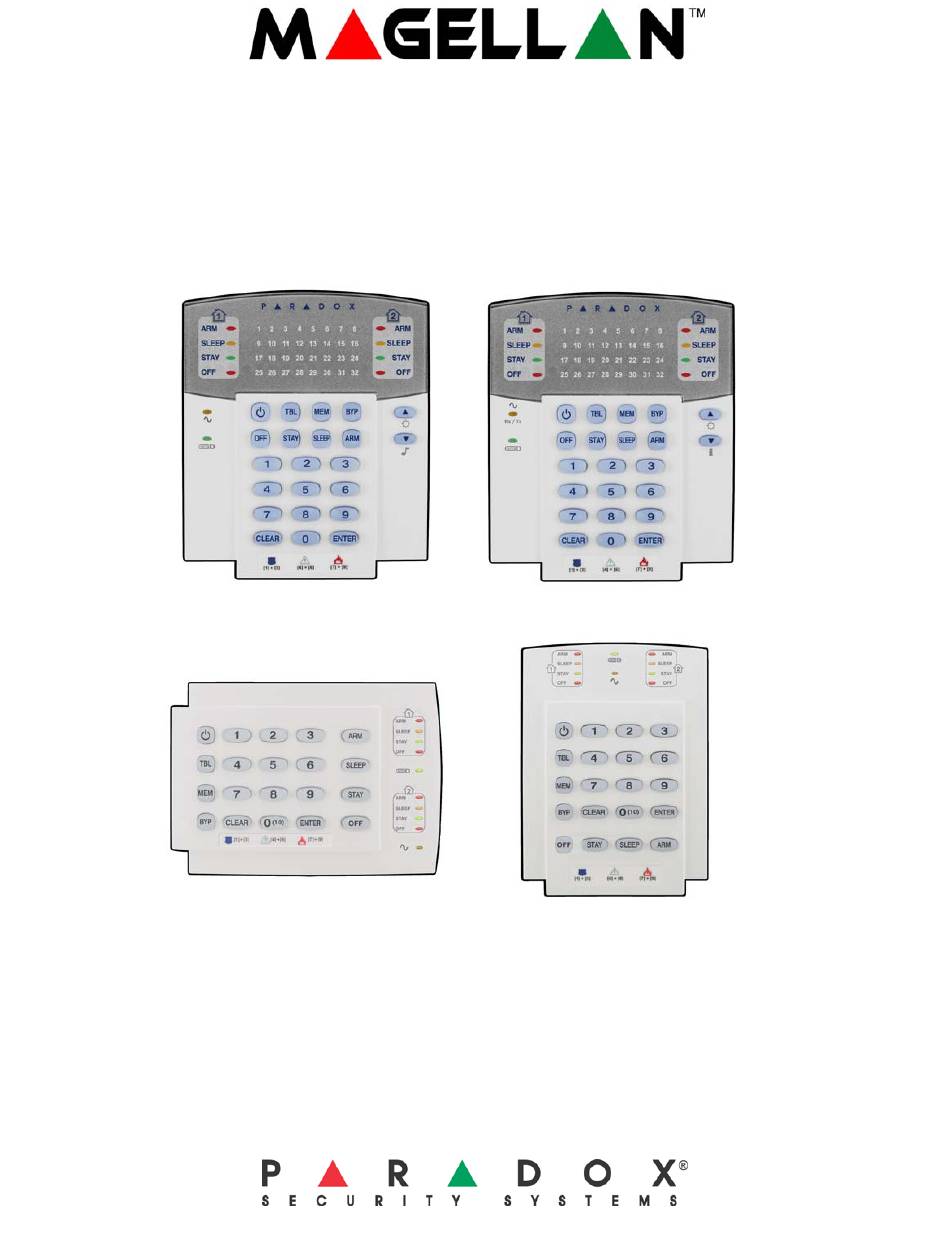

- Page 1 32-Zone Wireless Transceiver Control Panel MG5000 MG32LED MG32LRF MG10LEDV MG10LEDH User’s Guide...
-
Page 2: Access Codes
Access Codes How do I program Access Codes? Press the [ ] key. Enter your [ ] or either [ SYSTEM MASTER CODE MASTER CODE The [ ] key will flash. When a zone LED or zone key is lit (not flashing), the user is already programmed. Select a user by entering a 2-digit user number (i.e. -
Page 3: Table Of Contents
Advanced Features ..........Basic Operations ..........2 Auditory Feedback............2 Visual Feedback ............2 Quick Function Keys........12 Overview of the Magellan Series Keypads ....2 Test Report ..............12 Partitioning..............3 Call PC............... 12 Answer PC ..............12 Access Codes ............4 Cancel Communication.......... -
Page 4: Overview
The system consists of the Magellan control panel, one or more Magellan keypad modules, various input devices (i.e. motion detectors, door contacts, etc.) and various output devices (i.e. bells, sirens, lights, etc.). -
Page 5: Partitioning
Partitioning Your Magellan system is equipped with a partitioning feature that can divide your alarm system into two distinct areas identified as Partition 1 and Partition 2. Partitioning can be used in installations where shared security systems are more practical, such as a home office or warehouse building. -
Page 6: Access Codes
Programming Access Codes Access codes are personal identification numbers that allow you to enter certain programming modes, arm or disarm your system as well as activate or deactivate PGMs. The Magellan security system supports the following: • 1 System Master Code •... -
Page 7: Arming & Disarming
Arming & Disarming Take full advantage of your Magellan system by familiarizing yourself with all the arming methods. If your system is not partitioned (see Partitioning on page 3), everything is considered as belonging to Partition 1. If you cannot arm because a zone is open, the system will enter in Bypass Programming. Enter the two digit zone to bypass and press [... -
Page 8: One-Touch Arming
One-Touch Arming One-Touch arming allows you to arm the system without using an access code. This feature must be enabled by your installer. If One-Touch Arming is programmed, you can increase the security level of your system (from Disarm Stay Arm Sleep Arm Full Arm) without a code. -
Page 9: Auto-Arming
Auto-Arming The Magellan alarm system can be programmed to automatically arm upon the following two conditions. Timed Auto Arming The alarm system can automatically arm itself at a specified time everyday. As with Regular arming (see page 5), the system will bypass any open zones. -
Page 10: Bypass Recall Feature
Bypass Recall Feature After disarming the system, the bypass entries are erased. The Bypass Recall feature reinstates the previous bypass entries saved in memory. This eliminates the need to manually re-program the bypass entries every time you arm the system. How do I recall bypass entries? 1. -
Page 11: System Features
Panic Alarms In case of an emergency, the Magellan system can provide three panic alarms that can immediately generate an alarm after simultaneously pressing and holding two specific keys for three seconds. Based on your needs, these panic alarms can generate audible alarms (sirens or bells) or silent alarms and can communicate specific messages to your monitoring station. -
Page 12: Programming Chime Zones
PGM Keys (Programmable Outputs) Your Magellan system may include one or more programmable outputs (PGMs). When a specific event or condition occurs in the system, the PGM can be used to reset smoke detectors, activate light switches in your home or office, open/close garage doors and much more. -
Page 13: Power Save Mode
[10] Module Supervision Loss: One or more modules are no longer communicating with the control panel. [16] Keypad Fault (MG32LED/MG32LRF only): One or more keypads are no longer communicating with the control panel. ] Keypad Fault (MG10LEDV/H only): One or more keypads are no longer communicating with the control panel. SLEEP Magellan... -
Page 14: Advanced Features
Advanced Features Quick Function Keys Upon request of your installer or monitoring station you may have to perform one of the following. To enter Menu Programming, press [ ] and then enter your [ ]. In Menu programming, press: MASTER CODE Test Report ] + [2] If your system is monitored by your monitoring station, this feature will send a test report code to the monitoring station. -
Page 15: System Checklist
16:_________________ ______ Delayed? Y Fire Zone? Y 17:_________________ ______ Delayed? Y Fire Zone? Y 18:_________________ ______ Delayed? Y Fire Zone? Y 19:_________________ ______ Delayed? Y Fire Zone? Y 20:_________________ ______ Delayed? Y Fire Zone? Y 21:_________________ ______ Delayed? Y Magellan... -
Page 16: Special Keys And Features
Zone # and Partition Stay Sleep Force 24Hr Entry Delay Fire Zone/Delay Description 1 or 2 Fire Zone? Y 22:_________________ ______ Delayed? Y Fire Zone? Y 23:_________________ ______ Delayed? Y Fire Zone? Y 24:_________________ ______ Delayed? Y Fire Zone? Y 25:_________________ ______ Delayed? Y... -
Page 17: Pgms
Entry Delay 2 = _______sec. = time to disarm before alarm; enter through zone #___________ Alarm will activate siren or bell for ______ min. Other Information Installed by:__________________ Date: ______________ Serviced by:__________________ Tel: ________________ Monitored by:_________________ Tel: ________________ Your account number: ______________________________ Alarm transformer location:________________________on circuit #:____________ Location of Telephone Connections: ______________________________________________ Magellan... - Page 18 © 2002-2006 Paradox Security Systems Ltd. All rights reserved. Specifications may change without prior notice. One or more of the following US patents may apply: 6215399, 6111256, 5751803, 5721542, 5287111, 5119069, 5077549, 5920259 and 5886632. Canadian and international patents may also apply. Magellan is a trademark or registered trademark of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries...
-
Page 19: Delays
Delays Step 2: Select Menu Step 3: Select Option Step 4: Follow Status LEDs Delays Entry Delay 1 Entry Delay 2 Exit Delay Delays & Bell Cut-Off Time & Date Bell Cut-Off Time & Date 3-digits (000-255) HH:MM* YYYY * If hour is between 01 and 12, press [1] for 24hr format, [2] for AM or [3] for PM. -
Page 20: Master Quick Menu Mg5000
Master Quick Menu MG5000 Overview Step 1: ] code SYSTEM MASTER PARTITION MASTER Log In (default: 1234/No Default or 123456/No Default) MG32LRF MG32LED Step 2: = User Select Menu = Delays = Communicator = System Options Step 3: Select Option...
