Summary of Contents for QUAD Artera Mono

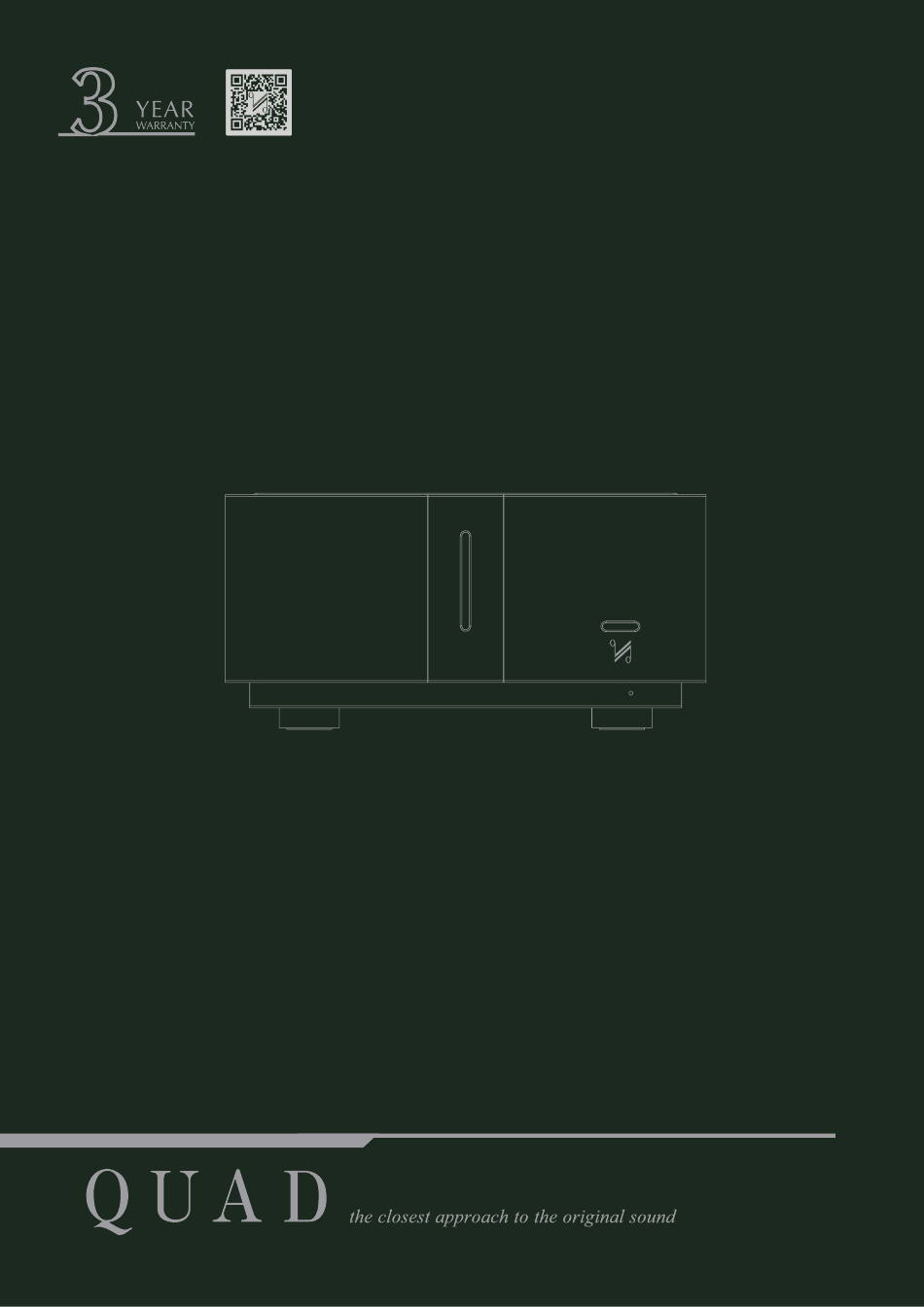

- Page 1 Scan the QR code using a smart-phone device, for product warranty registration online. Artera Mono Owner’s Manual...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Do not install this equipment in a confined or built-in space This lightning flash with an arrowhead symbol within an such as a bookcase or similar unit, and keep well ventilated... -
Page 3: Table Of Contents
QUAD Artera Mono CONTENTS IMPORTANT SAFETY INFORMATION ……………………………………………………… Inside Front Cover INTRODUCTION …………………………………………………………………………………………………… 1 UNPACKING THE EQUIPMENT ………………………………………………………………………….………… 1 PLACEMENT ………………………………………………………………………………………………………… 1 CONTROLS AND FUNCTIONS ……………………………………………………………….……………..2 CONNECTIONS ………......…………………………………………………………………..3 SYSTEM OPERATION .…….....……..………………………………………………………………… 4 OPERATION ….………….....………..…………..…...………………………………………………… 5 SPECIFICATIONS ….………….....………………..…...………………………………………………… 6 WARRANTY COVERAGE …………......……………........…………………... -
Page 4: Introduction
INTRODUCTION Thank you for your investment in the QUAD Artera Mono. We are sure that the Artera Mono will continue to delight you for years to come, thanks to its future-proof provisions for music playback sources. QUAD gave its team of designers and engineers a specific brief for Artera: combine the qualities that have made QUAD Britain’s most revered Hi-Fi marques for many decades with fresh industrial design and the very latest high-performance... -
Page 5: Controls And Functions
CONTROLS AND FUNCTIONS FRONT PANEL LED POWER LED STANDBY ＋ LINE BALANCED POWER － LINE BALANCED INPUTS OUTPUT Artera Mono Made in China QUAD ELECTROACOUSTICS HUNTINGDON,UK LINK TRIG FUSE MAINS POWER SOURCE LINE/BALANCED 12V TRIGGER LOUDSPEAKER INPUT SELECTOR INPUT OUTPUT... -
Page 6: Connections
CONNECTIONS Open the carton box and take out the glass top and the Artera Mono separately. Place the Artera Mono onto a sturdy flat surface or suitable flooring. Place the decorative glass insert on the top of Artera Mono after making all connections. -
Page 7: System Operation
SYSTEM OPERATION RIGHT LEFT LOUDSPEAKER LOUDSPEAKER RoHS ANTENNA (UPDATE) Artera Mono Artera Mono ＋ ＋ LINE LINE BALANCED BALANCED POWER POWER － － LINE BALANCED LINE BALANCED INPUTS OUTPUT INPUTS OUTPUT Artera Mono Artera Mono Made in China Made in China... -
Page 8: Operation
20 minutes. Front Panel LED Artera Mono has a white LED strip on the front panel. The LED will be lit when the unit is powered on. The LED indicator can be deactivated if preferred. -
Page 9: Specifications
Correctly connected loudspeakers give a defined centre sound source with fuller-bodied midrange and bass registers. SPECIFICATIONS (Measurement made with 230V supply, one channel driven and applied to either channel) Model Artera Mono Rated Output Power 300W @8ohms (THD=1%, 1kHz) 400W @4ohms (THD=1%, 1kHz) <0.006% (100W, 1kHz, bandwidth 20Hz-20kHz) Total Harmonic Distortion <0.03% (100W, 10kHz, bandwidth 20Hz-90kHz) -
Page 10: Warranty Coverage
WARRANTY COVERAGE QUAD warrants its products, subject to the following terms and conditions below, to be free from defects in materials and workmanship. Online Registration Scan the QR code using a smart-phone device, for product warranty registration online. The three (3) year extended warranty is applicable to items purchased from Jan 1st 2021, onwards. Items purchased prior to this date are not eligible for this extended warranty service but are subject to statutory warranty claims and all applicable consumer rights. - Page 11 Please note, QUAD is not able to supply parts or replacement items to any other entity than the official distributor or authorised service centre. Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, QUAD shall not be liable to you and/or any third party or entity whatsoever for: Any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the products ·...
- Page 12 IAG Service Dept. 13/14 Glebe Road Huntingdon Cambridgeshire PE29 7DL Tel: +44(0)1480 452561 Email: service@quad-hifi.co.uk For information on other authorised service centres worldwide contact QUAD International, UK. A worldwide distributors list is available on the QUAD website: www.quad-hifi.co.uk...
- Page 13 Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
- Page 14 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Email: service@quad-hifi.co.uk http://www.quad-hifi.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. QUAD is a member of the International Audio Group.
