Summary of Contents for QUAD Artera Stereo

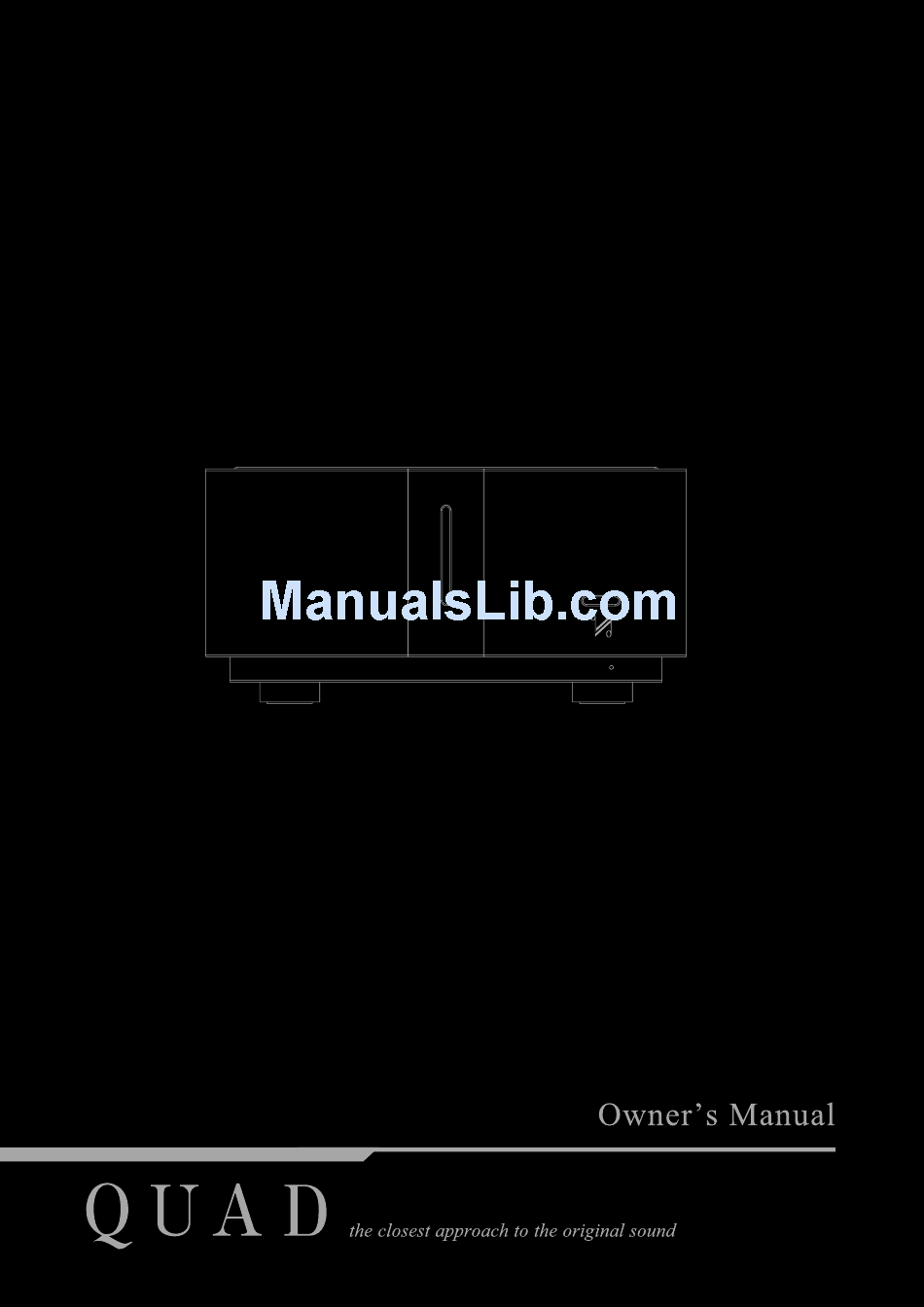

- Page 1 Artera Stereo...
-
Page 2: Important Safety Information
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR WARNING: SHOCK HAZARD-DO NOT OPEN Mains Supply: The mains operating voltage of all QUAD Artera series units is shown on the rear panel. If this voltage does not match the mains voltage in your area, consult your This lightning flash with arrowhead symbol within an QUAD dealer about converting the unit. -
Page 3: Table Of Contents
Artera Stereo USER GUIDE CONTENTS IMPORTANT SAFETY INFORMATION …………………………………………………………Inside Front Cover INTRODUCTION ………………………………………………………………………………………………….……1 UNPACKING THE EQUIPMENT ……………………………………………………………………………………1 PLACEMENT …………………………………………………………………………………………………………...1 CONTROLS AND CONNECTIONS …………………………………………………………………….………… 2 INSTALLATION ……………………………………………………………………………….……………….….… 3 OPERATION ………………………………………………………………………………………………………… 5 SPECIFICATIONS …………………………………………………………………………………………………… 6 CARE AND CLEANING ……………………………………………………………………………………………… 7 WARRANTY …………………………………………………………………………………………………………… 7 SERVICE INFORMATION ……………………………………………………………………………………………7... -
Page 4: Introduction
Before you connect the QUAD Artera Stereo to the mains, ensure your mains voltage corresponds to the rating on the rear panel of the product. If in doubt, consult your dealer. If you move to an area which has a different mains voltage, seek advice from a QUAD appointed dealer or a competent service technician. -
Page 5: Controls And Connections
CONTROLS AND CONNECTIONS... -
Page 6: Installation
INSTALLATION Open the carton box, take out the glass top and the Artera Stereo separately. Place the Artera Stereo onto a sturdy shelf or table. Put the glass top on the lid of Artera Stereo after making all connections. Mains Connections The Mains On/Off switch is on the real panel. - Page 7 System Connection...
-
Page 8: Operation
Press the standby button on the front panel to bring Artera Stereo out of standby. The power indicator LED is off, and the back light on the middle of front panel is lit. You can activate the ‘auto standby’ function by holding the standby button down for 3 seconds. -
Page 9: Specifications
SPECIFICATIONS (Measurement made with 0V supply, one channel driven and applied to either channel) Rated Output Power 140W 8 ohm (<1% THD,1kHz) <0.003% (100W, 1kHz) Total Harmonic Distortion <0.03% (100W, 20Hz-20kHz) -0.5dB (20Hz-20kHz, ref. 1kHz) Frequency Response -3dB (20Hz-70kHz, ref. 1kHz) Input Sensitivity 980mV(RCA line in) 10kohm (Balanced) -
Page 10: Care And Cleaning
If you have any queries regarding the use of QUAD equipment, consult your dealer. WARRANTY QUAD equipment is guaranteed against any defect in material and workmanship for a period of one year from the date of purchase. Proof of purchase is required for warranty claims. - Page 11 Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
- Page 12 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Fax: +44(0)1480 413403 http://www.quad-hifi.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. QUAD is a member of the International Audio Group. Code: QH14-MNL008a...
