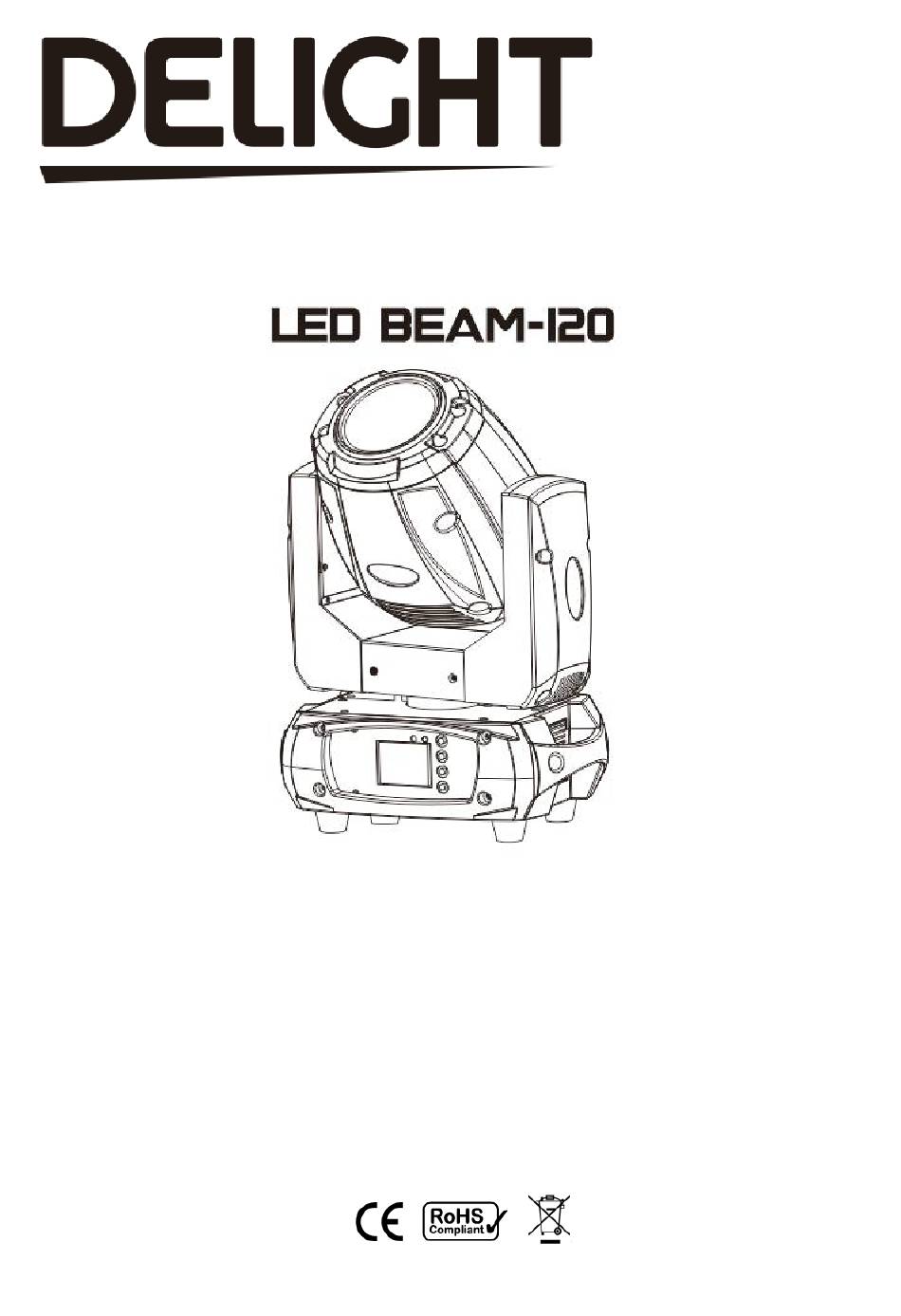

- Page 1 PROFESSIONL LED MOVING HEAD LIGHT User Manuals Version.1.0 ⚫ Be sure to read the USER MANUAL carefully before using this product. ⚫ Be sure to keep the USER MANUAL properly for future needs. ⚫ Use this product correctly when you can fully understand the User Manual...
-
Page 2: Safety Instructions
LED BEAM-120 1.SAFETY INSTRUCTIONS Thank you for choosing our LED BEAM-120 . FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START UP! CAUTION! Be careful with your operations! With a high voltage you can suffer dangerous electric shock when touching the wires! This device has left our premises in absolutely perfect condition. - Page 3 The LED BEAM-120 is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol.
-
Page 4: Technical Information
LED BEAM-120 3. TECHNICAL INFORMATION SPECIFICATIONS: ➢ 120W white LED lamp,7500K, 50000 hours life span ➢ Input Voltage:AC90-260V 50/60Hz ➢ Power Consumption: 145W ➢ Control Signal: DMX512, master-slave and sound Activated or auto operation (7 built-in programs) ➢ Control Channel: 12/10 Channels USITT DMX-512 ➢... - Page 5 4. PHOTOMETRICS DIAGRAM 5. OPERATION INSTRUCTIONS The LED BEAM-120 is for beam effect for on-site decoration purpose. Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So, make sure to operate the fixture until it is in normal temperature.
-
Page 6: Installation Diagram
Clamp Mounting: LED BEAM-120 provides a unique mounting bracket assembly that integrates the bottom of the base, and the safety cable rigging point in one unit (see the illustration below). When... -
Page 7: Control Connection
LED BEAM-120 7. CONTROL CONNECTION POWER SWITCH FUSE DMX OUT POWER OUT DMX IN POWER IN Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. -
Page 8: Menu Operations
LED BEAM-120 8. MENU OPERATIONS MENU LCD DISPLAY DOWN ENTER MENU Description Dmx Address A001~AXXX DMX address setting Channel Mode CH12 MODE Standard mode (Function Mode) CH10 MODE Vector mode Auto Run Program1~9 Master/Alone Auto run Music Run Program1~9 Master/Alone... - Page 9 LED BEAM-120 9. DMX PROTOCAL Mode/Channel Value Function 12CH(16bit) 10CH(8bit) 0..255 PAN Movement Pan-fine 0..255 Fine control of Pan movement Tilt 0..255 Tilt Movement Tile-fine 0..255 Fine control of Tilt movement Color wheel 0..7 Open / white 8..15 Color 1 16..23...
- Page 10 LED BEAM-120 70..74 gobo 14 75..79 gobo 15 80..84 gobo 16 85..89 gobo 17 90..97 Gobo 1 shake slow to fast 98..105 Gobo 2 shake slow to fast 106..113 Gobo 3 shake slow to fast 114..121 Gobo 4 shake slow to fast 122..129...
- Page 11 LED BEAM-120 0..19 No function 20..29 No function 30..39 No function 40..79 No function 80..84 All Motor reset 85..87 Scan motor reset 88..90 Colors motor reset 91..93 Gobo motor reset 94..96 no function 97..99 Other motor reset 100..119 Internal program 1 120..139...
-
Page 12: Maintenance And Cleaning
Install the new fuse in the fuse holder (only the same type and rating). Replace the fuse holder in the housing and fix it. Imported by Stage Tools Vennenweg 1, Oostrum , Netherlands Zip code: 5807EH Designed & Engineered in Netherlands by DELIGHT Manufactured in P.R.C. ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ - 11 -...
