delight FUSION WASH Z-740 User Manual

Professional led moving head light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

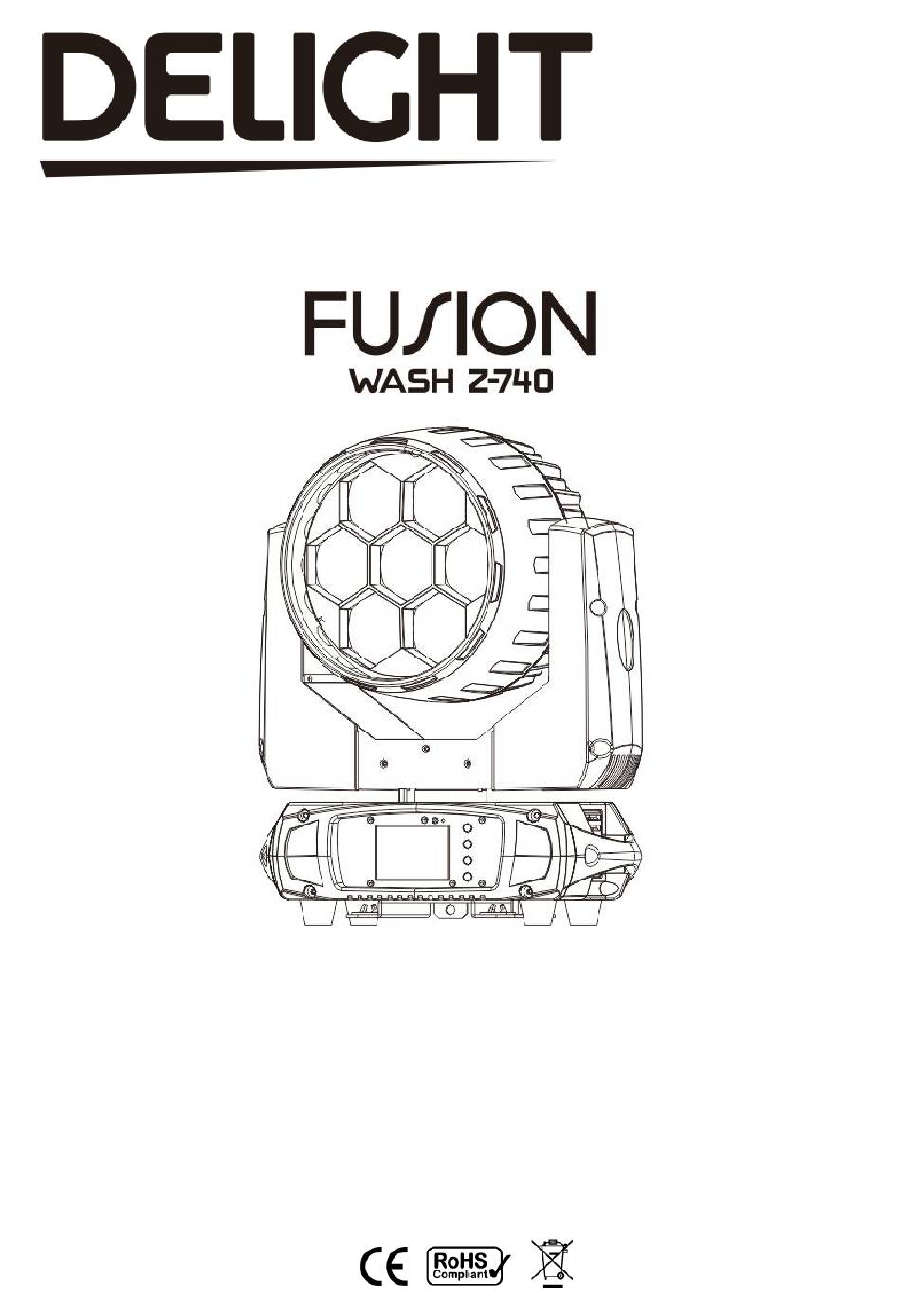

PROFESSIONL LED MOVING HEAD LIGHT
User Manuals
⚫
Be sure to read the USER MANUAL carefully before using this product.
⚫
Be sure to keep the USER MANUAL properly for future needs.
⚫
Use this product correctly when you can fully understand the User Manual
Version.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUSION WASH Z-740 and is the answer not in the manual?

Questions and answers

Related Manuals for delight FUSION WASH Z-740

Summary of Contents for delight FUSION WASH Z-740

  • Page 1 PROFESSIONL LED MOVING HEAD LIGHT User Manuals Version.1.0 ⚫ Be sure to read the USER MANUAL carefully before using this product. ⚫ Be sure to keep the USER MANUAL properly for future needs. ⚫ Use this product correctly when you can fully understand the User Manual...

  • Page 2: Safety Instructions

    FUSION WASH Z-740 1.SAFETY INSTRUCTIONS Thank you for choosing our FUSION WASH Z-740. FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START UP! CAUTION! Be careful with your operations! With a high voltage you can suffer dangerous electric shock when touching the wires! This device has left our premises in absolutely perfect condition.
  • Page 3 The FUSION WASH Z-740 is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol.

  • Page 4: Technical Information

    FUSION WASH Z-740 3. TECHNICAL INFORMATION SPECIFICATIONS: ➢ LED Quantities: 7x40W 4IN1 RGBW LEDs ➢ Input Voltage:AC90-260V 50/60Hz ➢ Power Consumption: 350W ➢ Control Signal: DMX512, master-slave and sound activated or auto operation ➢ Control Channel: 13/15 DMX channels USITT DMX-512.
  • Page 5 4. PHOTOMETRICS DIAGRAM 5. OPERATION INSTRUCTIONS The FUSION WASH Z-740 is for beam effect for on-site decoration purpose. Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So, make sure to operate the fixture until it is in normal temperature.

  • Page 6: Installation Diagram

    Clamp Mounting: FUSION WASH Z-740 provides a unique mounting bracket assembly that integrates the bottom of the base, and the safety cable rigging point in one unit (see the illustration below).

  • Page 7: Control Connection

    FUSION WASH Z-740 7. CONTROL CONNECTION POWER SWITCH FUSE DMX OUT POWER OUT DMX IN POWER IN Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.

  • Page 8: Menu Operations

    FUSION WASH Z-740 8. MENU OPERATIONS MENU LCD DISPLAY DOWN ENTER Tips: Press the UP & DOWN buttons at the same time and hold for 3 seconds, LCD display reversed ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ - 7 -...
  • Page 9 FUSION WASH Z-740 9. DMX PROTOCAL Mode/Channel Value Function 15CH 13CH Dimmer 0..255 Dimmer 0%...100% Shutter 0..31 Shutter closed 32..63 shutter open 64..95 Strobe effect slow to fast 96..127 shutter open 128..159 Pulse-effect in sequences slow to fast 160..191 shutter open 192..223...
  • Page 10 FUSION WASH Z-740 128..143 Green+Blue 144..159 Green+White 160..175 Blue+Wtihe 176..191 R+G+B 192..207 R+G+B+W 208..223 Jump effect 224..239 Fading effect 240..255 Pulse-effect Macro Speed 0..255 Macro Speed from Slow To Fast Special function 0..19 No function 20..29 No function 30..39 No function 40..79...

  • Page 11: Maintenance And Cleaning

    FUSION WASH Z-740 10. MAINTENANCE AND CLEANING It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture 's light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.
  • Page 12 FUSION WASH Z-740 Imported by Stage Tools Vennenweg 1, Oostrum , Netherlands Zip code: 5807EH Designed & Engineered in Netherlands by DELIGHT Manufactured in P.R.C. ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ - 11 -...
