unios ION R Vandal-proof Quick Start Manual

Surge Protection
For comprehensive protection of a luminaire against electrical surges, surge protection shall be installed
on the mains supply where required to protect luminaires and drivers from transient voltage damage.
For warranty information visit unios.com/warranty
Please read these installation instructions carefully before installing this luminaire. This product must be installed and
maintained by a suitably qualified person/s in compliance with the latest applicable regulations and relevant legislation.
Unios does not warrant any claim based on defects or damage caused by misuse, improper installation, improper
operation and/or modifications carried out by the purchaser or third parties. This luminaire will not be used as a
'Working light' during construction. This will result in the warranty of the luminaire to be void. For warranty duration,
please refer to the data sheet.

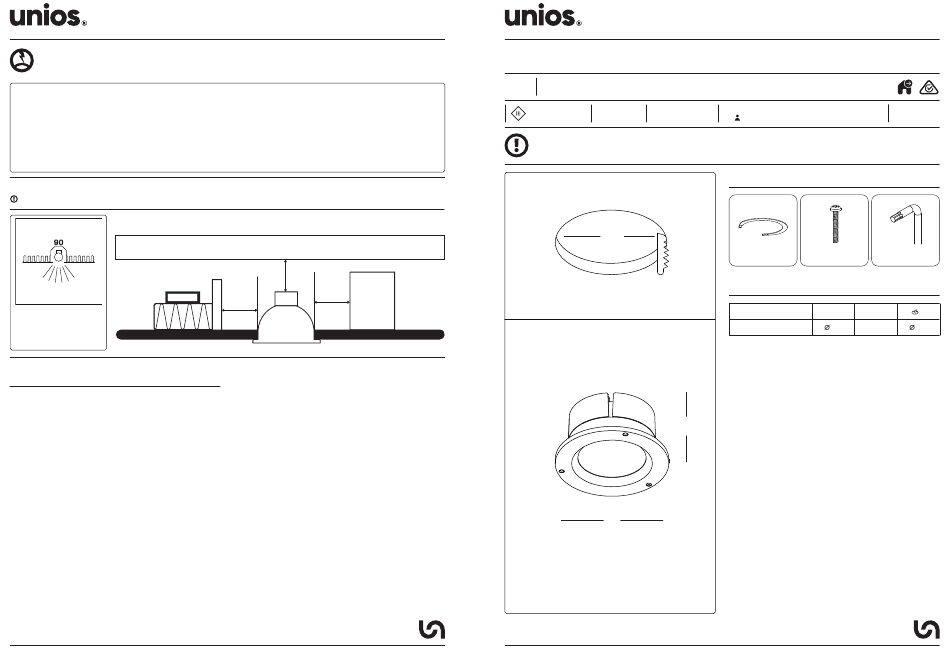

Minimum clearance for luminaire
Risk of Fire – Required clearance from structure members and building elements. Details below:
Barrier required for loose fill insulation
or loose combustible materials
Transformer
Thermal
CA90 Rated
Insulation
Tested to and in
accordance with
AS/NZS 60598.2.2:2016
Corrosion Protection
It is important to note that care must be taken during
installation or maintenance to ensure that the surface of
the luminaire is not damaged. Any damage, which is
exposed to moisture will result in corrosion occurring.
Please also note that any chemical applications on
the luminaire or chemical contact via installation or
maintenance will cause corrosion of the surface of the
luminaire and will void the warranty.
Edition 26.3.24 | Product design and technical data may be subject to change
Page 4 of 4
unios.com/ionr
Please ensure the driver is
fixed above any insulation
Building Element Above Fitting
50
Building
0
Structural
0
Member
Recessed
Luminaire
All measurements are based in millimetres.
ION R Vandal-proof
Base Vandal-proof
Codes
IONRV183
Class III Material
Aluminium
Luminaire only
CAUTION – This product must be installed by a qualified installer
Please read instruction manual carefully before installing luminaire
Ceiling
Edition 26.3.24 | Product design and technical data may be subject to change
Operating Temp Install Person/s
<25°C 1x
Parts
1x
C
Mounting
Plate
Sizing Variations
Product Code
IONRV183
B
A
Page 1 of 4
unios.com/ionr
DOWNLIGHT
IP65
ROOMSIDE
Power
22-32 Watts
3x 1x
35mm T20 T20
Torx Screws Torx Key
A B C
180 86 165
All measurements are in millimetres.
