INTRODUCTION:
The Boca CCS100 is designed for low power applications where energy consumption and size are the main concerns. It can be
specified with either one row or two rows, depending on the light output required. It offers seamless LED configuration, easy
installation, and vibrant monochromatic color. The CCS100 can be used with any magnetic low voltage dimmer and is available in
different housings for different uses, including underwater installations where IP68 is required.
ELECTRICAL SPECIFICATIONS:
1. Input Voltage: 24 VDC or 24 VAC
2. Total linear ft per distribution box: 80 ft (10 ft per port)
3. Total linear ft per 100watt transformer: 22 ft
4. Total linear ft per 300watt transformer: 66 ft
5. Input Current: 150mA RMS per linear ft
1. Fixtures must be installed by a qualified and licensed electrician in
accordance with all national, state and local electrical codes and
regulations. If any part of this manual does not meet the necessary
codes and regulations, contact the factory for more information before
attempting to install.
WARNING: DO NOT LIFT FIXTURE BY CABLES. Do not attempt to install or use the CCS-100 fixture without
reading the installation instructions and safety labels completely.
This could result in permanent damage to both the fixture and the cables. Damage resulting from grasping cables and/or
putting undue pressure on the cable connections will not be covered under the warranty!
FAILURE TO ADHERE TO THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE.
DO NOT MODIFY, ALTER OR ATTEMPT TO SERVICE THE CCS-100 DOING SO WILL VOID THE WARRANTY.
BocaFlasher.com
MAINTENANCE:
Storage:
Store in a dry, well-ventilated area when product is not in
use. Keep the electrical cord away from heated surfaces
when in use or not in use. If cord shows signs of damage
do not use, return product to manufacturer.
Cleaning:
Dry and Damp (IP68) Rated Fixtures:
To clean surface use a soft damp cloth.
Wet (IP68) Rated Fixtures:
To clean surface use a soft cloth with mild soap and water.
1 of 4

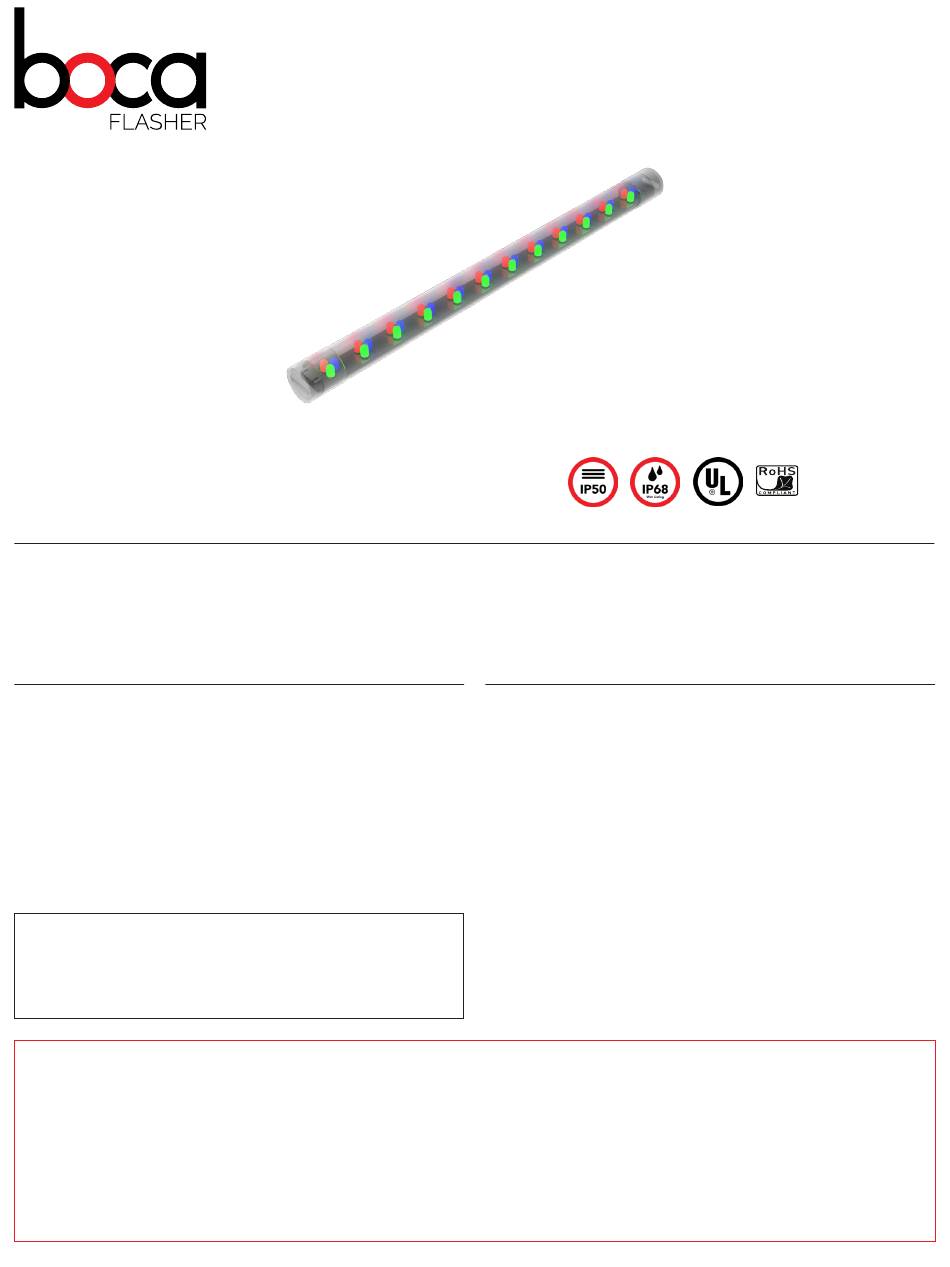

Installation Manual
CCS-100
Max Temp: 55°C
Min. Temp: -40°C
REV 04-2019
