Boundless ADDS 5300 User Manual

Boundless adds 5300 network terminal: users manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
B
T
BY
OUNDLESS
ECHNOLOGIES

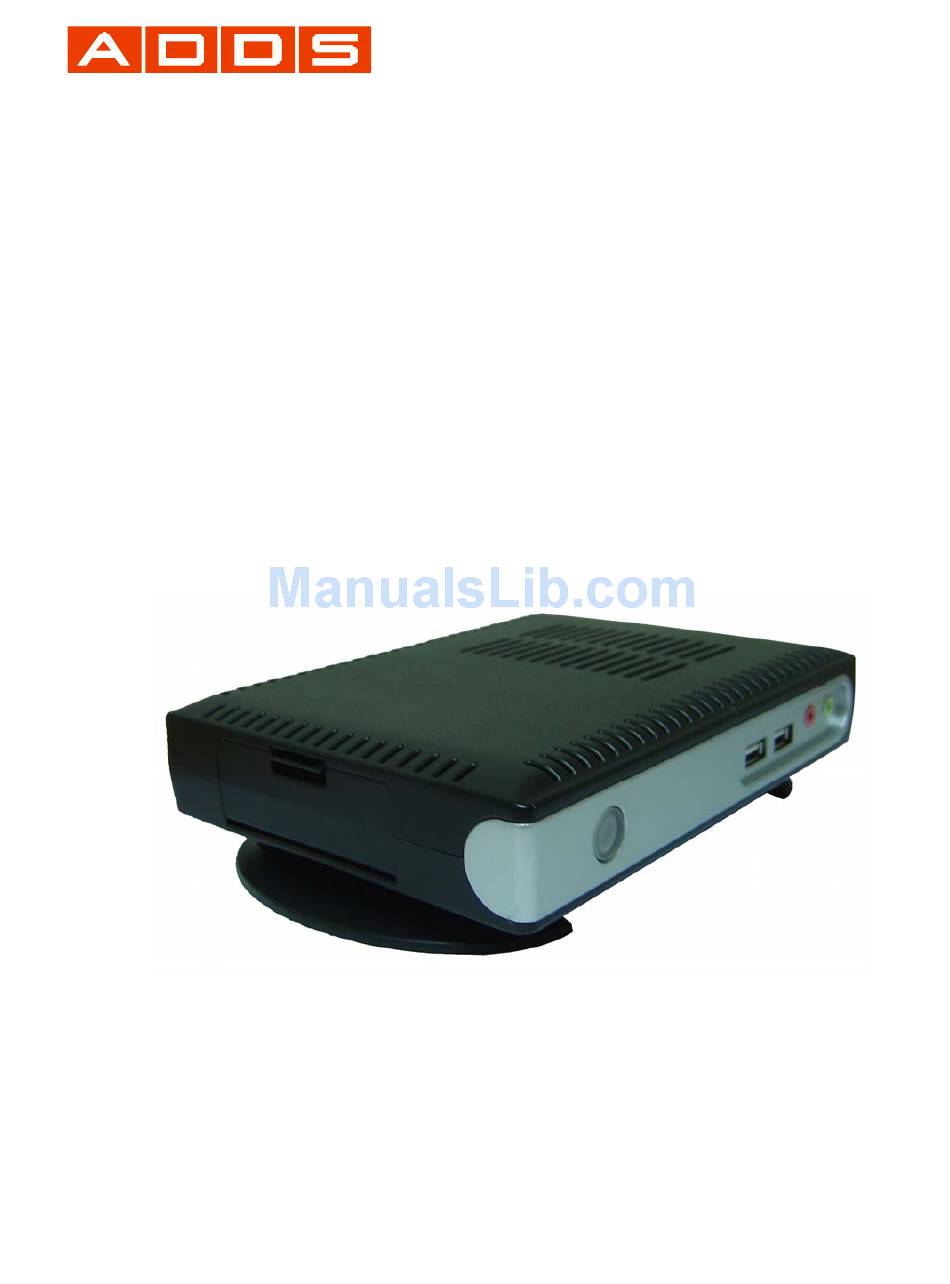

AD DS 5300 Win CE 6.0
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADDS 5300 and is the answer not in the manual?

Questions and answers

Related Manuals for Boundless ADDS 5300

Summary of Contents for Boundless ADDS 5300

  • Page 1 OUNDLESS ECHNOLOGIES AD DS 5300 Win CE 6.0 User’s Manual...

  • Page 2: Table Of Contents

    4.3.3 Changing a Connection Entry................…..56 4.3.3.1 To change the properties of a connection entry ..........…..56 4.3.3.2 Specifying an Application to Run after Connecting to a Citrix Server ...…..57 4.3.3.3 Specifying Logon Information ................…..58 4.3.3.4 Changing the Window Properties ..............…..59 4.3.3.5 Setting Connection Entry Options..............…..60...
  • Page 3 Ping ..........................…..91 6.17 Thin Printer........................…..91 6.18 Input Panel ........................…..91 6.19 LPD ..........................…..92 6.19.1 Setup for LPD .....................…..92 6.19.2 Add a remote printer ...................…..93 6.19.3 LPD Printing......................…..96 6.20 RM Agent Configuration....................…..97 6.20.1 RM Agent Configure .....................…..97 6.20.2 Authentication.......................…..98 6.21 Touch Panel Settings ....................…..99 6.22...
  • Page 4 Select the Printer Model…………………………………………………………..……..102 6.24.3 User Defined ……………………………………………………………………………...104 6.24.4 Finish the Setup Wizard………………………………………………………...………..106 6.25 Diagnostic Tool ......................…107 CHAPTER User Security Control....................…108 Administrator Mode and User Mode................…108 ....................…109 User Security Control tool 7.2.1 ....................110 User Security Option 7.2.2 User Security Password……………………………………………………..…………112 7.2.3 User Mode Control…………………………………………………..………………….112...
  • Page 5 Specifications subject to change without notice. FCC Statement This equipment has been tested and found to comply with the limits for either Class A or Class B digital devices, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Chapter 1 License Agreement

    Limited Software Warranty and Disclaimer We warrant that, for a period of ninety (90) days from the date of shipment, the Firmware will, under normal use, be free from defects in materials and workmanship in the EPROM (or similar storage device). The foregoing warranty shall not apply to any Firmware that has been used in violation of this Agreement.
  • Page 7 By installing, copying or otherwise using the SOFTWARE, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, MANUFACTURER and Microsoft Licensing, Inc.
  • Page 8 You may permanently transfer all of your rights under this EULA Windows-Based Terminal Devices with Microsoft Windows NT only as part of a sale or transfer of the SYSTEM, provided you Server, Terminal Server Edition retain no copies, you transfer all of the SOFTWARE (including all...
  • Page 9 (ii) to any person or entity who you know or have materials for a period of ninety (90) days from the date of receipt.

  • Page 10: Wbt's

    Desktop Protocol), or Windows NT applications server via ICA (Independent Computing Architecture). RDP is the Windows XP-based protocol for connecting to Windows terminal servers. ICA is a distributed presentation services protocol for Windows NT server, allowing an application's user interface to execute on a Windows-based terminal while the application's logic executes on the server.

  • Page 11: Terminal Features

    Connect the mouse to the mouse connector. Connect the 10/100-T network cable to the RJ-45 network connector. Connect the power cord and the adapter to the power connector with DC Adapter. Connect the power cord to the power connector with DC Adapter.
  • Page 12 2.4.2 Power Switch The Power Switch key to turn ON/OFF the WBT. Audio output Connector This connector is used to connect to an outward speaker. Micro phone input connector. PARALLEL Parallel Port Connector This connector can be used for a printer connection.
  • Page 13 Keyboard RJ-45 Network Connector This connector can be used to connect the built-in 32-bit 10/100-T Ethernet network LAN Controller to a host or Hub. Serial Port Connectors These connectors can be used for the serial device such as a modem device.

  • Page 14: Administrator/User Mode

    It makes the thin client more complete and safe in personal security. Add/Remove Component Add/Remove is a new function; it supports the user to install the application or driver he wants to use, And user also can uninstall them by using the application.

  • Page 15: Chapter 3 Introduction Of Main User Interface

    Boot the device When you push the power button to start the thin client, the device is started with BIOS first; the boot logo will be showed When bios initial is done, and then it wills entry CE desktop mode finally.

  • Page 16: Properties

    3.1.2 Properties Alternative Display Settings The monitor support several kinds of resolutions. If you want to test it, choose the desired resolution from the list box and click Test. Desktop Area and Refresh Frequency If the screen image tests OK, the monitor will support the selected resolution.
  • Page 17 After the system implement testing new mode as user set up. The system will notify user “did you see the test image properly”. The Device will be rebooting to make the display settings changed actively. ____________________________ ADDS 5300 Win CE...
  • Page 18 Screen Saver, Turn Off Monitor and Turn Off WBT. You can leave this WBT to activate the function automatically according to the time you set. Or you can tick “Enable Ctrl + Alt + L Turn ON/OFF screen saver” to manually activate/deactivate any one of the left three energy savers you tick by pressing the hot-keys of “Ctrl+Alt+L”.
  • Page 19 Background Background provides user to change the background with graphic files. User also can set the background to Tile image on background. Appearance User can set the appearance by change Scheme. ____________________________ ADDS 5300 Win CE...

  • Page 20: Start Menu

    3.2 Start Menu Start Menu is a set of all functions; it supports the user to set the client. It has included these main items: Administrator/User mode, Programs, Connections, Settings, Start Up, User Switched And Shutdown. 3.2.1 Administrator/User mode It has been showed according to which user access mode you set.

  • Page 21: Programs

    If the user switches from Administrator to user, it doesn’t need to enter password. 3.2.2 Programs It provides the user to use the application embedded such as Media Player/Internet Explorer/My USB Storage Device. It also provides the user to use the application installed by add/remove.
  • Page 22 Connects to the Internet directly via embedded Internet Explorer. Refer to chapter 4.7 for the Internet applications. Microsoft Media Player An applications winch you can connect to play a media & set the option in your WBT. Refer to chapter 4.8 for Media Player. (1) Windows Media Buffering: select the buffer 1seconds <-> 5 seconds (2) Volume: You can set the volume when playing the media and select the sound is mute or loud.

  • Page 23: Connections

    To start this application simply double click it. If your settings have been correctly set up then this is going to work. My USB Storage Device User can edit the USB storage device installed by this tool. 3.2.3 Connections ____________________________...

  • Page 24: Settings

    User can open the Add Connections page by pressing Add Connections. Added connections will be list on this item and desktop. 3.2.4 Settings ____________________________ ADDS 5300 Win CE...
  • Page 25 It provides user to set the terminal properties by Control Panel, Network and Dial-up Connections and Taskbar and Start Menu. Control Panel The Control Panel properties sheet lets you configure your terminal’s function. User can set it to display by Expand mode or open a new window.
  • Page 26 Network and Dial-up Connections properties sheet. If you have a DHCP server, then click on Obtain an IP address from a DHCP server to automatically get an IP address. Or you may specify an IP address by yourself. You can also type a Name for the Terminal Network attached device must contain a unique network identifier.
  • Page 27 If the method you selected on the prior screen was to enter a static IP address, the below screen will appear. You will be required to enter the following information onto the screen. IP address Required for identifying this unit to the network. The format will follow the standard addressing format.
  • Page 28 The screen shown below will appear only if you choose the Static IP Addressing method. The DHCP method will provide this information required using a name resolution service. Terminal servers typically support both DNS (Domain Naming Service) and WINS (Windows Internet Naming Service) name resolution services.
  • Page 29 Choose the connection type by clicking on the radio button. It will decide which connection you want to connect with a server. Three options are available: Choose Dial-Up Connection radio button if you desire to connect with the server through the modem; Or select Direct Connection radio button to connect with the server through serial port RS 232;...
  • Page 30 The Make New Dial-Up Connection dialog should now appear. Select the serial connection for the current COM port being used for the connection. Then click on Configure… Device Properties Port Setting The Device Properties dialog should now display. Select the Port Settings tab and set the connection preferences (Baud Rate, Data Bits, Parity, Stop Bits, Flow Control) to match the host.
  • Page 31 Select the Call Options tab. Select “Wait for dial tone before dialing” and deselect the rest of the options. Click “OK” when finished. TCP/IP Settings From the Make New Dial-Up Connection dialog click on the TCP/IP Settings button. In the TCP/IP Settings dialog select the General tab.
  • Page 32 Now select the Name Servers tab. Select Use server assigned addresses. When finished, click OK. Set Primary and Second DNS, Primary and Second WINS if you decline to use Server-assigned address. Auto Connect when WBT is started If it is enabled, the connection will connect automatically when booting.
  • Page 33 Use the Security properties sheet to access security features if you want. Country, Area code and Telephone Below the Country, Area code and Telephone number must be entered correctly in the blank area for Dial-Up Connection. ____________________________ ADDS 5300 Win CE...
  • Page 34 In Connection Manager dialog box click Connections tag and select the RAS connection you would like to connect to. The following figures will appear. You will have to enter the User Name, Password and Domain to log on the connection.
  • Page 35 You can click on “New…” to add a new location you would like to dial from. The figure shows as below. To delete the newly added location, simply click on “Remove”. The “Dialing Patterns…” dialog lets you configure the settings shown as below.
  • Page 36 Once everything is correctly set up, click on Connect on Dial-up Connection dialog. The target and host should now be connected. You should see connection icons in the status bars of your host and target. Once the PPP Dial-Up is connected successfully, then press the Hot-keys “Ctrl +Alt + End “...
  • Page 37 The Make New Direct Connection dialog should now appear. Select the serial connection for the current COM port being used for the connection. Then click on “Configure” and click on “TCP /IP Setting” .The setting of “Configure” and “TCP/IP Setting” are the same as stated in the Make New Dial-Up Connection above.
  • Page 38 The target and host should now be connected. You should see connection icons in the status bars of your host and target. Once the Direct Connection is connected successfully, then press the Hot-keys “Ctrl +Alt + End “ to back to the “Terminal Connection Manager ”and double click on RDP or ICA for connection.
  • Page 39 The Make New Virtual Private Network Connection dialog should now appear. Type in the Host name or IP address you wish to connect to. Then click on “TCP /IP Setting” .The TCP/IP Setting is the same as stated in the Make New Dial-Up...
  • Page 40 In Connections entry of Terminal Connection Manager select the RAS connection you would like to connect to. The target and host should now be connected. You should see connection icons in the status bars of your host and target. Once the Virtual Private Network Connection is connected successfully, then press the Hot-keys “Ctrl +Alt + End “...
  • Page 41 In the Make New Connection dialog select “PPP over Ethernet Connection” radio button. Then click on “Next”. The Make New PPP over Ethernet Connection dialog should now appear. Type in the Host name or IP address you wish to connect to. Then click on “TCP /IP Setting” .The TCP/IP Setting is the same as stated in the Make New Dial-Up Connection above.
  • Page 42 PPP over Ethernet Connection is connected successfully, then press the Hot-keys “Ctrl +Alt + End “ to back to the “Terminal Connection Manager ”and double click on RDP or ICA for connection. Taskbar and Start Menu User can select the properties to set.

  • Page 43: Startup

    3.2.5 Startup… Startup item provides the user to add the connections that added by Add Connections or Network and Dial-up connections to auto run when the WBT boots. ____________________________ ADDS 5300 Win CE...

  • Page 44: Shutdown L

    The connections, which set to auto start, will be added to this dialog list and menu list. 3.2.6 Shutdown Press Alt + S or select the item Shutdown will appear this dialog. User can select Reboot to re-start the terminal or select Shutdown to power down it.

  • Page 45: Taskbar

    User can right click the mouse on Task Bar to select the Task manager. Properties User can right click the mouse on Task Bar to select the Properties and open Taskbar and Start Menu Properties. ____________________________ ADDS 5300 Win CE...
  • Page 46 Network Information User can right Double-click the mouse on Task Bar to select the Network device to open Network dialog. Date/Time Properties User can right Double-click the mouse on Task Bar to select the Clock to open Date/Time Properties dialog.
  • Page 47 Software keyboard input panel User can right click the mouse on Task Bar to select the Software keyboard to show input panel dialog. User can select normal/Large keyboard to use, or even hide it by using this dialog. ____________________________ ADDS 5300 Win CE...

  • Page 48: Chapter 4 Connections Management

    4 Connections Management Connections are designed to help you manage your terminal's protocol connections. The dialog box displays after the user select the item Add Connection on Start Menu, or left-click on desktop and select the item Add Connection. Open the dialog by Start Menu...

  • Page 49: Creating New Connections

    Choosing a Connection Protocol Use the scroll list shown in the dialog box above to select the type of connection protocol you want. When you choose from the list above, you are deciding which connection protocol you want to use to connect to a server. Five selections are...
  • Page 50 Click on the Save command button to finished, the new connection will be added to the Connections list in Start Menu. Click on the “X” icon on the top right of this dialog box or Cancel to quit the setting at any time.
  • Page 51 4.2.2 Display Tab Change the Colors and Remote Desktop Size for RDP connection. If default the connection bar is enable. The connection bar will be showed on the Windows desktop. If it is disable. The connection bar will be hided.

  • Page 52: Local Resource Tab

    4.2.3 Local Resource Tab Functions shown in local device. Remote Computer sound Choosing “Bring to this computer”. Could bring the sounds from the server to the client device. ____________________________ ADDS 5300 Win CE...
  • Page 53 Keyboard Apply windows key combinations-user can chose the system hot key actives on client or server Local devices User can enable these options before connecting to server, if the devices are installed ready, User can use them on server. ____________________________...

  • Page 54: Programs Tab

    Click on Desktop if you want the Windows NT desktop displayed by default while connecting. Or click on Application file name and type its name when you want to start this application while connecting. You can also specify a working directory when you specify an application.
  • Page 55 After finish the setup then you can see the new connection shortcut showed on desktop and Start Menu. Left-click the shortcut and click Edit Connection if you want to edit the RDP. The screen will go back to Select the Connection Name as shown on page 46, then follow the setup procedures again after selecting the connection.

  • Page 56: Ica Connection

    The Specify Connection Type dialog box appears: Make sure your WBT is connected to the network through the on-board RJ-45 connector or by a serial PPP connection to a Windows 95 or Windows NT RAS server. Click Next to continue. Skip to section 4.5.1.2.
  • Page 57 The ICA Windows-based Terminal does not support modem callback. When using modem callback, the server hangs up on dial-in connections at logon and then dials a specified number to reconnect to the user attempting to log on. Because Windows-based Terminal contains no mechanism to answer the return call, the ICA Windows-based Terminal does not support modem callback for dial-in connections.
  • Page 58 Click Server to connect to a server or Published Application to connect to a application. Click “Refresh” and then WBT will search for the available Citrix servers on the network. A message will display as below: Then the available Citrix server names will be displayed:...
  • Page 59 If your WBT is not on the same network as the Citrix server you would like to connect to, the server name will not appear in the list (this would occur if you are on the other side of a router, across the Internet, or using RAS to connect to a remote network containing Citrix servers).
  • Page 60 The default server location protocol is TCP Browser and the default value entered in the Address field is Auto-Locate. Click Add and enter the IP address or DNS name of any Citrix server on the remote network. Click OK, and then click Next to section 4.5.1.5.

  • Page 61: Connecting To A Citrix Server

    Enter a name for the connection entry. The name you choose is the name of the entry in the Current Client Connections list and appears in the title bar of the ICA session window. 4.3.1.6 Click “Done” to save the entry or “Cancel” to exit the new connection entry dialog box without saving the entry. You also can click on “Next”...

  • Page 62: Changing A Connection Entry

    The Dial-in tab (dial-in connection entries only), where you can set the area code, country code, and telephone number to dial. You can use the settings on this page in the same way as when you first set up the connection entry, see “Creating a New Connection Entry”...

  • Page 63: Specifying An Application To Run After Connecting To A Citrix Server

    4.3.3.2 Specifying an Application to Run after Connecting to a Citrix Server Use the Application tab to specify an application to run after connecting to a Citrix server. If you specify an application, you do not see the Windows desktop when you connect and the connection is closed when you exit the application.

  • Page 64: Specifying Logon Information

    4.3.3.3 Specifying Logon Information You can include the settings needed to log on to the Citrix server as part of the connection entry. This saves time when connecting to the server but is less secure. In the Connection Manager dialog box, click Configure.

  • Page 65: Changing The Window Properties

    4.3.3.4 Changing the Window Properties Use the Window tab to change the number of colors to use for ICA connections made using the connection entry. In the Connection Manager dialog box, click Configure. Select the connection entry that you want to change and click Edit.

  • Page 66: Setting Connection Entry Options

    Click the Options tab. Click Compress Data Stream to reduce the amount of data transferred between the ICA Client and the Citrix server. If your connection is bandwidth-limited, enabling compression can increase performance. If your client device is on a high-speed LAN, you may not need compression.

  • Page 67: Changing The Title Of The Connection Entry

    4.3.3.6 Changing the Title of the Connection Entry By click on the Title tab you can change the title of this selected connection entry. Click OK to save your changes. ____________________________ ADDS 5300 Win CE...

  • Page 68: Configuring Firewall Settings

    4.3.3.7 Configuring Firewall Settings If you are using a SOCKS proxy server to limit access to your Citrix servers, you must configure the ICA Client to connect to Citrix servers through a SOCKS proxy server. You can configure a default SOCKS proxy for all connections or use only a SOCKS proxy with a specific connection file.
  • Page 69 Configuring Alternate Address Translation If the ICA Client is outside a firewall that uses address re-mapping, you must configure the ICA Client to use the alternate address returned by the master ICA Browser. This is necessary even if you are not using a SOCKS proxy server.

  • Page 70: Microsoft Internet Explorer Connection

    4.4 Microsoft Internet Explorer Connection This is an optional function for your WBT; check your vender for this support before your purchase. This local browser connection will require more RAM utilization and powerful CPU to have better performance. This WBT is equipped with a CPU of outstanding speed to offer you a local browser session you never experience before.
  • Page 71 You could choose to connect by LAN on “dial up”. If you have a proxy server, you could enable it when access to the Internet. Or you could by pass your proxy server when connecting to the local Internet. ____________________________...
  • Page 72 This column is the security settings for Internet. ____________________________ ADDS 5300 Win CE...
  • Page 73 You can customize the security level in this dialog box. The privacy Internet setting can be set up in this dialog box. In this dialog box, you can setup the advanced Internet setting. ____________________________ ADDS 5300 Win CE...
  • Page 74 You can block the popup windows in the Popup dialog box. . ____________________________ ADDS 5300 Win CE...
  • Page 75 Set the web sites that you allow to popup. You can also select the events you want to block their Popup ____________________________ ADDS 5300 Win CE...

  • Page 76: To Start A Microsoft Internet Explorer Connection

    4.4.2 To Start a Microsoft Internet Explorer Connection Double click this Web connection. If your network settings have been correctly set up then this is going to work. 4.5 TERMTEK Terminal Emulation User can add a connection of ASCII ANSI Emulation or IBM Emulation by this application.
  • Page 77 ASCII/ANSI Emulation settings Page IBM Emulation settings Page Finish the set up, the connection will be added on desktop and list. ____________________________ ADDS 5300 Win CE...

  • Page 78: Microsoft Vnc Viewer

    4.6 Microsoft VNC Viewer Microsoft VNC Viewer provides user to add a connection of VNC, to connect to other server that enable the VNC service. ____________________________ ADDS 5300 Win CE...
  • Page 79 Add Connection Set the options of connections ____________________________ ADDS 5300 Win CE...

  • Page 80: Chapter 5 Advanced Function For Connections

    The connection will list on Start Menu and desktop, and user can click it to active it. 5 Advanced Function for Connections This WBT provides some advanced function for all connections such as Multiple Auto Start-Up and Multiple Auto Reconnect. Multiple Auto Start-Up...
  • Page 81 Click on “Add” to add this connection in the list of Startup list. You can repeat this action to have multiple Startups. Use “Up Sequence” and “Down Sequence” to set the priority of starting all the connections. Before this function works successfully, make sure the user names and passwords for all selected connections have been set up properly.

  • Page 82: Multiple Auto Reconnect

    Multiple Auto Reconnect In the same figure above you will also find an icon of “Reconnect”. This is to set this WBT to immediately and automatically reconnect the same session that you have just logged off. This special function can be widely Optimized when the WBT is placed in a public area.

  • Page 83: Chapter 6 Control Panel

    6.2.2 Notes User could key in any sentences or words in the column. It will show up if you enable ”Display owner notes at power on”. 6.2.3 Network ID Enter User name and Password when access to the Network.

  • Page 84: General

    By clicking on the “General” icon, all the system information will be displayed. 6.3.2 Memory By clicking on the “Memory” icon, you can adjust the memory as you want to run the programs. 6.3.3 Device Name By clicking on the “Device Name” icon, you can identify your Windows CE device to other computers.

  • Page 85: Network Information

    Screen Saver, Turn Off Monitor and Turn Off WBT. You can leave this WBT to activate the function automatically according to the time you set. Or you can tick “Enable Ctrl + Alt + L Turn ON/OFF screen saver” to manually activate/deactivate any one of the left three energy savers you tick by pressing the hot-keys of “Ctrl + Alt + L”.

  • Page 86: Appearance

    Click Mouse Properties if you want to configure your mouse setting to Right-Handed or Left-Handed, and the Pointer Speed. 6.6 Sounds The Sounds can adjust the Volume of the sounds of the client machine. Enable sounds for the events, application and notifications. Besides, users can set the sounds of events by their favorite settings. ____________________________...

  • Page 87: Add/Remove Programs

    6.7 Add/Remove Programs With the Add/Remove Programs, users can add programs that support windows CE packed in file type CAB, and remove those programs installed by users. 6.7.1 Add Programs Users can add programs that support windows CE packed in file type CAB.

  • Page 88: Date/Time

    User can set up your local time for this device. 6.9 Certificates Certificates are the basic component of Microsoft PKI. And the main purpose is to assure secret. Users can be granted authorization to browse the web or to enter sever by getting certificates.

  • Page 89: Component

    The Component page shows the important components and the current version of these components included in the WBT firmware. 6.11 Citrix ICA Configure This section describes how to change settings that apply for all connection entries on this WBT. It also describes how to ____________________________ ADDS 5300 Win CE...

  • Page 90: Configuring Hotkeys

    ICA connection entries. You may want to do this if you always prefer to use a particular setting; for example, a sound quality that is different from the initial setting or a larger default window size.

  • Page 91: Configuring Global Preferences

    RAME ICA Client to have a Citrix PC Client Pack serial number. If a serial number is required, you must enter it exactly as it appears on the Serial Number card. The serial number is not used when connecting to MetaFrame servers.

  • Page 92: Firewall Settings

    The default setting is TCP browser but you can make desired change at this page. It depends on what kind of protocol of your Citrix server. If you can’t find by this protocol, scroll through the list and try other protocols. This will change the default protocol setting of ICA client when searching for Citrix server location.
  • Page 93 This is to configure a default SOCKS proxy server, if you would like to configure a SOCKS proxy server for a specific ICA connection entry, please refer to the description mentioned earlier in section 4.5.3. To Configure a Default SOCKS Proxy Server Tick Connect via SOCKS proxy.

  • Page 94: Regional Settings

    6.12.1.2 Currency This currency model will also be displayed according to the locale you have set up. 6.12.1.3 Time Time could be arranged by turns of hours, minutes and sounds.

  • Page 95: User Interface Language

    6.12.2 User Interface Language Determine the language used for the menus, dialogs, and alerts. 6.12.3 Input Language Set up the Input Language for the local device, and you can also select the input language you plan to use. 6.13 Storage Manager If the machine is connected with any floppy or Hard drivers, it will show the storage information.

  • Page 96: Usb Manager

    The USB Manager provides management of USB Storage Devices. One can see and enable or disable the USB Storage Devices connecting to the WBT. And one can set all USB Storage Devices as Read-only to prevent losing of data. 6.15...

  • Page 97: Update

    The Work-Mode Update lets you update new firmware, registers, logo, and company information. Key in Server Name, File Name, User ID and Password and Click Start Update button, the update Status will be show in the Status Window. Note 1.

  • Page 98: Ping

    Ping The Ping Test Settings sheet lets you ping the IP address to make sure it’s on the network. Invoke this setting by clicking on the Ping icon of Terminal Properties dialog box. The following figure shows the Ping function tag, just type in the IP address you want to ping and click OK.

  • Page 99: Setup For Lpd

    UNIX machine for printing purpose or any machine which supports LPD protocol. 6.19.1 Setup for LPD In the page, user can select the printers connecting to the WBT. Select one of them and press “Start LPD” and then the LPD will keep stand-by. Users do not need to reboot the WBT.
  • Page 100 The quick brown fox jump over the lazy dog. When the LPD stands by, users can press “Stop LPD” to stop it. If you need the LPD start automatically when the WBT boots up, click the “Auto-start LPD after the system boots up” and press “Save Settings” or “OK”. When the WBT reboot next time, the LPD will start up automatically.

  • Page 101: Add A Remote Printer

    /usr/spool/MyPrinter For Example: User can setup a printer name and execute a printing instruction using configure tool under the X-Window as below figures. 1.Preform the printer configuration under KDE in Redhat 7.3 O.S. Then click “New” button. 2.On the following screen user will be ask to provide information for adding a new Printer Queue.
  • Page 102 4.the “Configure a Unix Print Queue” page will appears. User has to enter Server IP and Queue Name to configure which Server and Queue will be user’s remote LPD server. Note: Here the Server IP had defined to be the WBT IP.

  • Page 103: Lpd Printing

    6.19.3 LPD Printing Before you use LPD for printing, your Server needs to be installed completely with Setup for LPD in 3 setups for LPD. LPD protocol is built-in to most of the UNIX system. However, detailed implementation of LPD differs among UNIX system. Please refer to your UNIX administration guide for reference.

  • Page 104: Rm Agent Configure

    The most Humanized remote control utility, Remote Manage System (RM), provides a single-point centralized administration of network resources and a simple and easy way to manage Windows-based terminals. The RM Agent Configure provides settings and security protection related to the RM in the WBT.
  • Page 105 If “No Password” is checked, the RM can get the authorization automatically and get control of the client WBT. If “Client Password” is checked, the RM will need to input the password to get the authorization of the client WBT.

  • Page 106: Touch Panel Settings

    Press OK to Enable touch panel, and press Calibrate to alignment. 6.22 Win VNC Server Enable “Enable VNC”, the WBT could be in the control of VNC viewer, and the default password is “password”. 6.23 Terminal Server Client License In this Apps tab you can check and set TSCAL (Microsoft Terminal Service Client Access License).

  • Page 107: Printer

    When you receive a license from a server, the license info will be appeared in this dialog. 6.24 Printer The terminal supports Local Print. If you want to connect this terminal with a Local Printer, then click OPEN. If not, then click NEXT. Local Printer Setup After click OPEN you can see the Add Printer page then click OPEN again you can see the Select the printer Port page.

  • Page 108: Select The Printer Port

    6.24.1 Select the Printer Port Select one of the ports, LPT1, COM1 or COM2 port that you want to use to communicate with your local printer. Or you can select Network to set a network printer. When you select the COM1 or COM2 .You can also select the baud rate of COM1 or COM2 port.

  • Page 109: Select The Printer Model

    6.24.2 Select the Printer Model Select the manufacturer and model of your printer. If your printer name is not listed, check with your printer document and select one that is closer. The printer will then show on the dialog box of Printers Properties on Terminal Properties after press [F2] as shown in chapter 6.5.
  • Page 110 And ask if user want to configure another printer. If does not please enable No and click Next. Or enable Yes to continue configure another printer. The screen will go back to Select the Printer Port as shown on page 15, Then follow the setup procedures again after selecting the printer port.

  • Page 111: User Defined

    After the printer setup finished then the added printer model would be showed up. 6.24.3 User Defined If your printer name is not listed, please enable” User Defined” to setup then click Next. Note: User has to prior install the printer driver in server when performing the User Defined.
  • Page 112 Enter your printer Model & Manufacture to setup then click Next.(For Network Printer) Note: The model name, which you type in the column, Should be identical with what you select from the name list in the server User must supply a name for this printer then click Next.
  • Page 113 If does not please enable No and click Next. Or enable Yes to continue configure another printer. Then tap Finish to apply the setting. After the printer setup OK then the added printer model would be showed up. ____________________________ ADDS 5300 Win CE...

  • Page 114: Finish The Setup Wizard

    6.24.4 Finish the Setup Wizard To review or change settings made on previous pages, click Back; to apply the settings, click Finish. To change these settings after you have finished the Setup Wizard, press [F2] key to display the Terminal Properties sheet. Finish 6.25...

  • Page 115: Chapter 7 User Security Control

    Hotkey: The Hotkey “F12” can quickly switch current operation mode. Switching current operation mode from Start Menu or by Hotkey will pop up a dialog to confirm the switching. The dialog that switches from Administrator Mode to User Mode and from User Mode to Administrator Mode differs. As switching from Administrator Mode to User Mode, the dialog will ask for “Switch to user mode?”...

  • Page 116: User Security Control Tool

    If button “Yes” is clicked, User Mode will be active. As switching from User Mode to Administrator Mode, the dialog will ask for the password of Administrator Mode. The default password for Administrator Mode is “0000.” If users enter the correct password, Administrator Mode will be active.

  • Page 117: User Security Option

    Reset Default The Reset Default function will reset the system to factory default settings. This function will clean all the settings tuned by users. In the common case, we do not suggest administrators to trig this function unless administrators want to reset the system.
  • Page 118 Log on Screen At Power On If users enable this option, the Log on Screen of the WBT will pop up to ask for password of the Mode that users attempt to log on. The Log on Screen is as below: When users enter the correct passwords for the operation mode that they attempt to log on, the WBT will start with the operation mode they selected.

  • Page 119: User Security Password

    The User Security Password provides the modification of passwords of Administrator and User Mode. The default passwords for these two modes are “0000.” 7.2.3 User Mode Control The User Mode Control provides assist for administrators to define the security settings of User Mode. An administrator can define a specified ____________________________...

  • Page 120: Function

    Use this function to switch between Active Connections Alt+Tab Arrow Use this function to switch between Active Connections Ctrl+Alt+End: Use this function to go back to the Terminal Connection Manager. Ctrl+Alt+L: Use this function to activate or deactivate the energy saver. Alt+F2: Use this function to open Control Panel.
