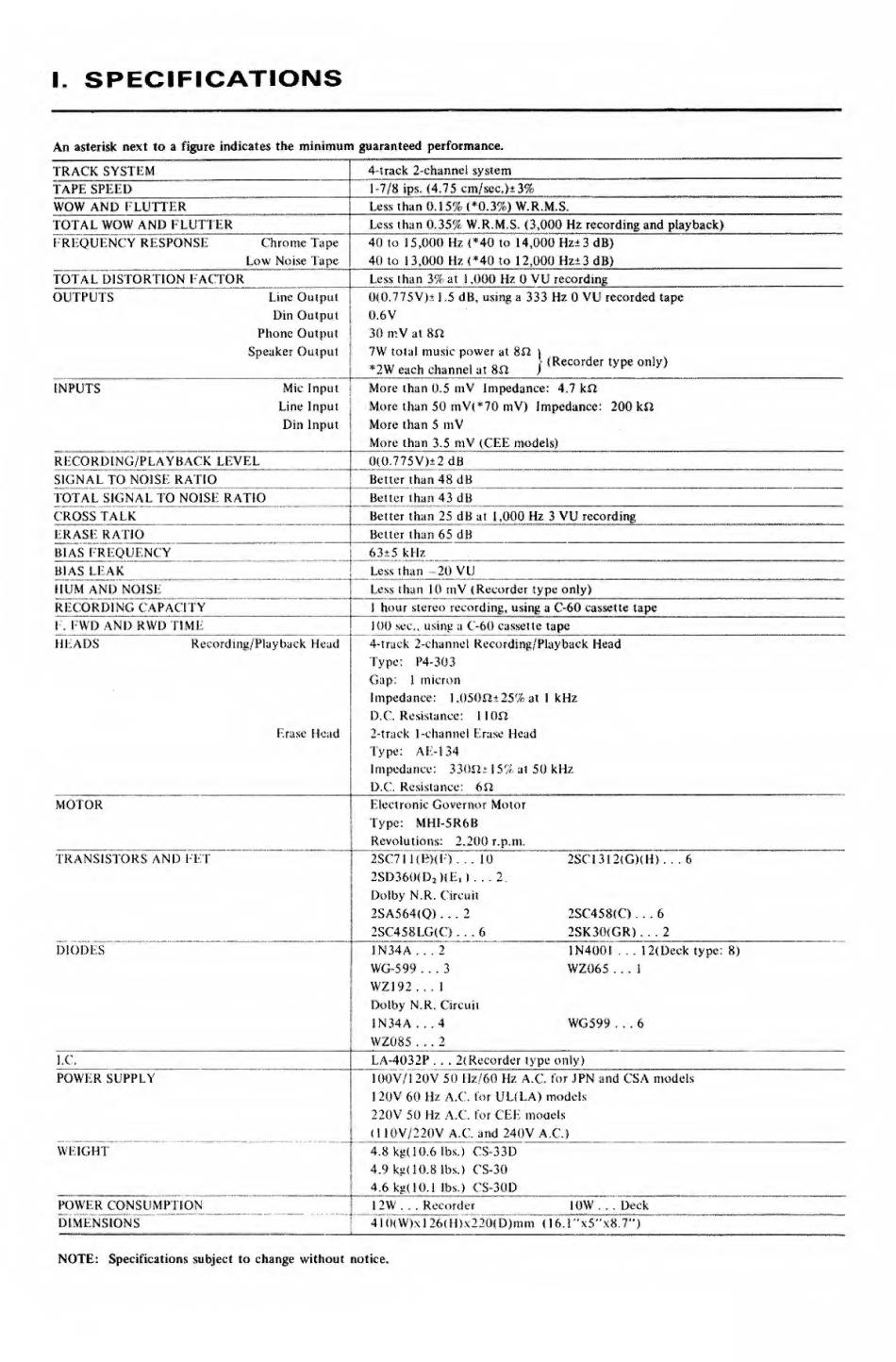

I. SPECIFICATIONS
An asterisk next to a figure indicates the minimum guaranteed performance.
TRACK SYSTEM
4-track 2-channel system
TAPE SPEED
T7/8 ips, (4.75 cm/sec.}± 3%
WOW AND FLUTTER Less than 0.15% (*0.370 W.R.M.S.
TOTAL WOW AND FLUTTER Less than 0.35% W.R.M.S, (3,000 Hz recording and playback)
FREQUENCY RESPONSE Chronic Tape
Low Noise Tape
40 to j5,000 Hz {*40 to 14,000 Hz±3 dB)
40 to 13,000 Hz(*40 to 12,000 Hz±3 dB)
TOTAL DISTORTION FACTOR Less than 3% at 1.000 Hz 0 VU recording
OUTPUTS Line Output
i
Din Outpui
Phone Output
Speaker Output
!
0(0.775 V)± 1.5 dR, using a 333 Hz 0 VU recorded tape
0.6V
30 mV at SO
7W total music power at 80
\
#2W each channel at 80
)
r
INPUTS Mic Input !
Line Input
Din Input
More than 0.5 mV Impedance: 4t7 kO
More than 50 mV(*70 mV) Impedance: 200 kO
More than 5 mV
More than 3.5 mV (CEE models)
RECORDING/PLAYBACK LEVEL 0(0.775V)±2 dB
SIGNAL TO NOISE RATIO
Better than 48 dB
TOTAL SIGNAL TO NOISE RATIO Belter than 43 dB
CROSS TALK Better than 25 dB at 1,000 Hz 3 VU recording
ERASE RATIO Better than 65 dB
BIAS FREQUENCY 63±5 kHz
BIAS LEAK
Less than -20 VU
HUM AND NOISE
Less than 10 mV (Recorder type only)
RECORDING CAPACITY 1 hour stereo recording, using a C-60 cassette tape
F. FWD AND RWD TIME
100 sec., using a C-60 cassette tape
HEADS Recording/Playback Head
Kruse Head
4-track 2-channei Recording/Playback Head
Type: P4-303
Gap; 1 micron
Impedance; L050fl±25% at 1 kHz
D.C. Resistance: HOD
2-track 1-channel Erase Head
Type: AIM 34
Impedance: 330S2-* 15% at 50 kHz
D.C Resistance: 6Si
MOTOR * Electronic Governor Motor
Type: MHI-5R6B
Revolutions: 2.200 r.p.m.
TRANSISTORS AND FIT 2SC7I . 10 2SCI312(G){M}. . . 6
2SD3601D?)tE, T . . 2,
Dolby N.R. Circuit
2SA564(Q),.. 2 2SC458IC)... 6
2SC458LG(C) ... 6 2SK30(GR). , , 2
DIODES IN34A ... 2 1N400I . .. 12(Deek type; 8)
WG-599 ... 3 WZ065 ... 1
WZ192 ... 1
Dolby N.R. Circuit
IN34A ... 4 WG599 ... 6
WZ085 ... 2
I.C.
LA-4032F ., . 2< Recorder type only)
POWER SUPPLY IOOV/1 20V 50 Hz/60 Hz A.C. for JPN and CSA models
1 20V 60 llz A.C. for UL(LA) models
220V 50 Hz A.C. for CEE models
(! IOV/220V A.C. and 240V A.C.)
WEIGHT 4.8 kg( 10.6 lbs.) CS-33D
4.9 kjt( 10.8 lbs.) CS-30
4.6 kpOO.l lbs.) CS-30D
POWER CONSUMPTION 12W . . . Recorder 10W ... Deck
DIMENSIONS 4HKW)x! 26(11 )Jt220(D)mm (16.1"x5"x8.T')
NOTE: Specifications subject to change without notice.
