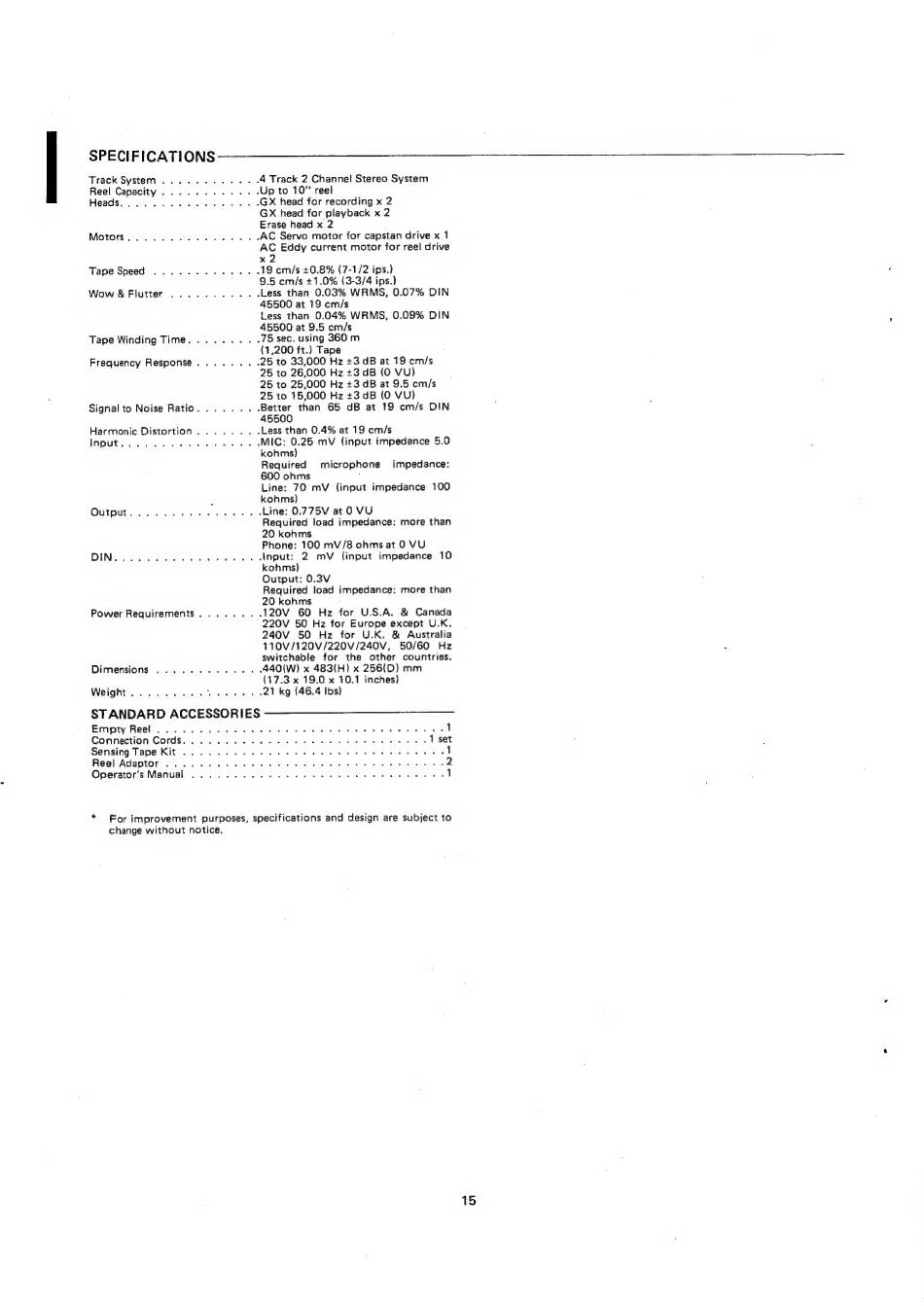

SPECIFICATIONS
Track System... ...--2005% 4 Track 2 Channel Stereo System
Reel Capacity... .......-5- Up to 10" reel
GAS 5250 ee ce Ser ae gae Se GX head for recording x 2
GX head for playback x 2
Erase head x 2
MOtorsiss ¢ seh Gsten, any. 2a Ws AC Servo motor for capstan drive x 1
AC Eddy current motor for reel drive
x2
Tape Speed ..........--- 19 cm/s +0.8% (7-1/2 ips.}
9.5 cm/s +1.0% (3-3/4 ips.)
Wow & Flutter ......-.-6-. Less than 0.03% WRMS, 0.07% DIN
45500 at 19 cm/s
Less than 0.04% WRMS, 0.09% DIN
45500 at 9.5 cm/s
Tape Winding Time. ........ 75 sec. using 360 m
(1,200 ft.) Tape
Frequency Response........ 25 to 33,000 Hz +3 dB at 19 cm/s
25 to 26,000 Hz +3 dB (0 VU)
25 to 25,000 Hz +3 dB at 9.5 cm/s
25 to 15,000 Hz +3 dB (0 VU)
Signal to Noise Ratio. ....... Better than 65 dB at 19 cm/s DIN
45500
Harmonic Distortion. ....... Less than 0.4% at 19 cm/s
INDUTS aos bas soe See ees MIC: 0.25 mV (input impedance 5.0
kohms)
Required microphone impedance:
600 ohms
Line: 70 mV (input impedance 100
7 kohms)
OUTPUTS asc eel Roe eel Line: 0.775V at 0 VU
Required load impedance: more than
20 kohms
Phone: 100 mV/8 ohms at 0 VU
DUN eo ieee ehh koi aw nce ate weed Input: 2 mV (input impedance 10
kohms)
Output: 0.3V
Required load impedance: more than
20 kohms
Power Requirements........ 120V 60 Hz for U.S.A. & Canada
220V 50 Hz for Europe except U.K.
240V 50 Hz for U.K. & Australia
110V/120V/220V/240V, 50/60 Hz
switchable for the other countries.
Dimensions ........-..55% 440(W) x 483(H) x 256(D) mm
(17.3 x 19.0 x 10.1 inches)
Weight. ........ Sedat aick 21 kg (46.4 Ibs)
STANDARD ACCESSORIES
Empty Reel... ee ee te ee ee ee ee we ene 1
Connection Cords... 1. ee ee 1 set
Sensing Tape Kit... 0. ee ee ee ee 1
Real Adaptor os. 2 ee ee ee ER em 2
Operators Manual... ek ow eee PS a Ee eR 1
* For improvement purposes, specifications and design are subject to
change without notice.
