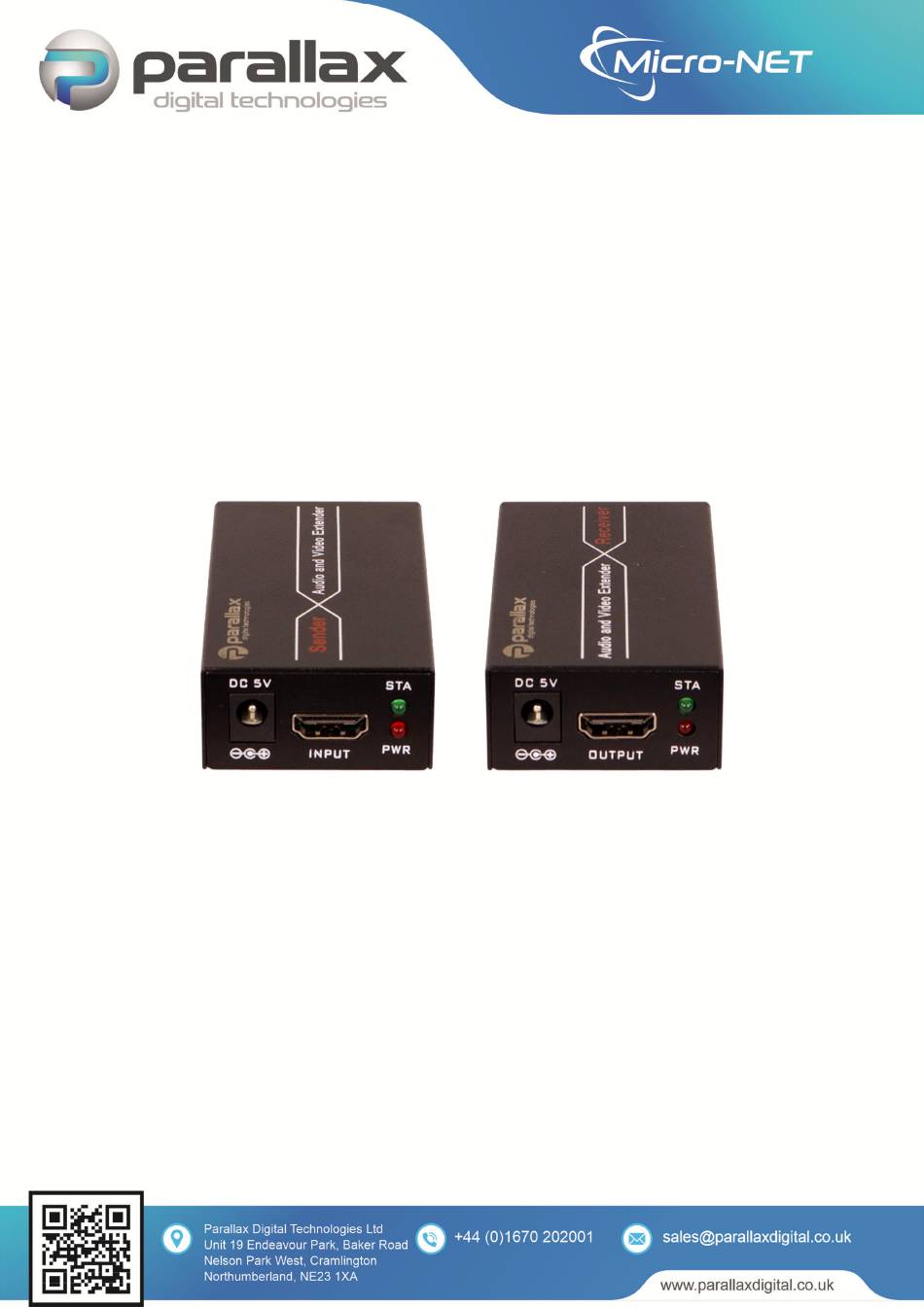

- Page 1 Operations Manual PDT-HDE-0006-TX/RX Kit Revision 1.0 – May 2022...
-
Page 2: Table Of Contents
Table of Contents Revision History ..............................2 Abbreviations ..............................3 Safety Information ............................4 General Safety Information ........................4 DC Mains Adapter ...........................4 Power over Cable and Ethernet ......................4 UTP Cable Selection ..........................4 Packing List ..............................5 Product Overview ............................5 Connectors ..............................6 Operation Overview ............................6 Application Setup ............................7 Hardware Specification ..........................8... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 17/05/2022 Initial Release 17/05/2022 22/09/2022 Updated Range for Power Over Cable 22/09/2022... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Copper Clad Aluminium Direct Current EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Power over Cable Receiver Transmitter Unshielded Twisted Pair... -
Page 5: Safety Information
Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Packing List
4. Packing List The following items are included in the shipping carton: • 1 x PDT-HDE-0006-TX – HDMI Transmitter Unit • 1 x PDT-HDE-0006-RX – HDMI Receiver Unit • 1 x Mains AC-DC Adapter – 5V 1A • Operation & Maintenance Manual •... -
Page 7: Connectors
6. Connectors Transmitter Unit Receiver Unit +5VDC HDMI In HDMI Out Link Cable Link Cable Note – the +5VDC from the Mains Adapter is only required to be connected to the Transmitter Unit – from there it will automatically be relayed to the Receiver Unit. 7. -
Page 8: Application Setup
8. Application Setup The following diagram shows a typical application setup HDMI HDMI Cat 6/6a/7... -
Page 9: Hardware Specification
9. Hardware Specification VIDEO Transmission HDMI 1.3 HDCP 1.3 Maximum Pixel Clock 165 Mhz Maximum Data Rate 6.75Gbps Resolution 3D – 1080p@60Hz 1080i@50/60Hz 720p@50/60Hz 576i@50Hz 576p@50Hz 480i@60Hz 480p@60Hz VIDEO INTERFACE Connector HDMI-A Impedance 100 Ω Max Cable Length <5m @ 1080p@60Hz Data Tx/Rx Connector RJ45...
