Summary of Contents for Parallax PDT-PEX-7004-PP-I

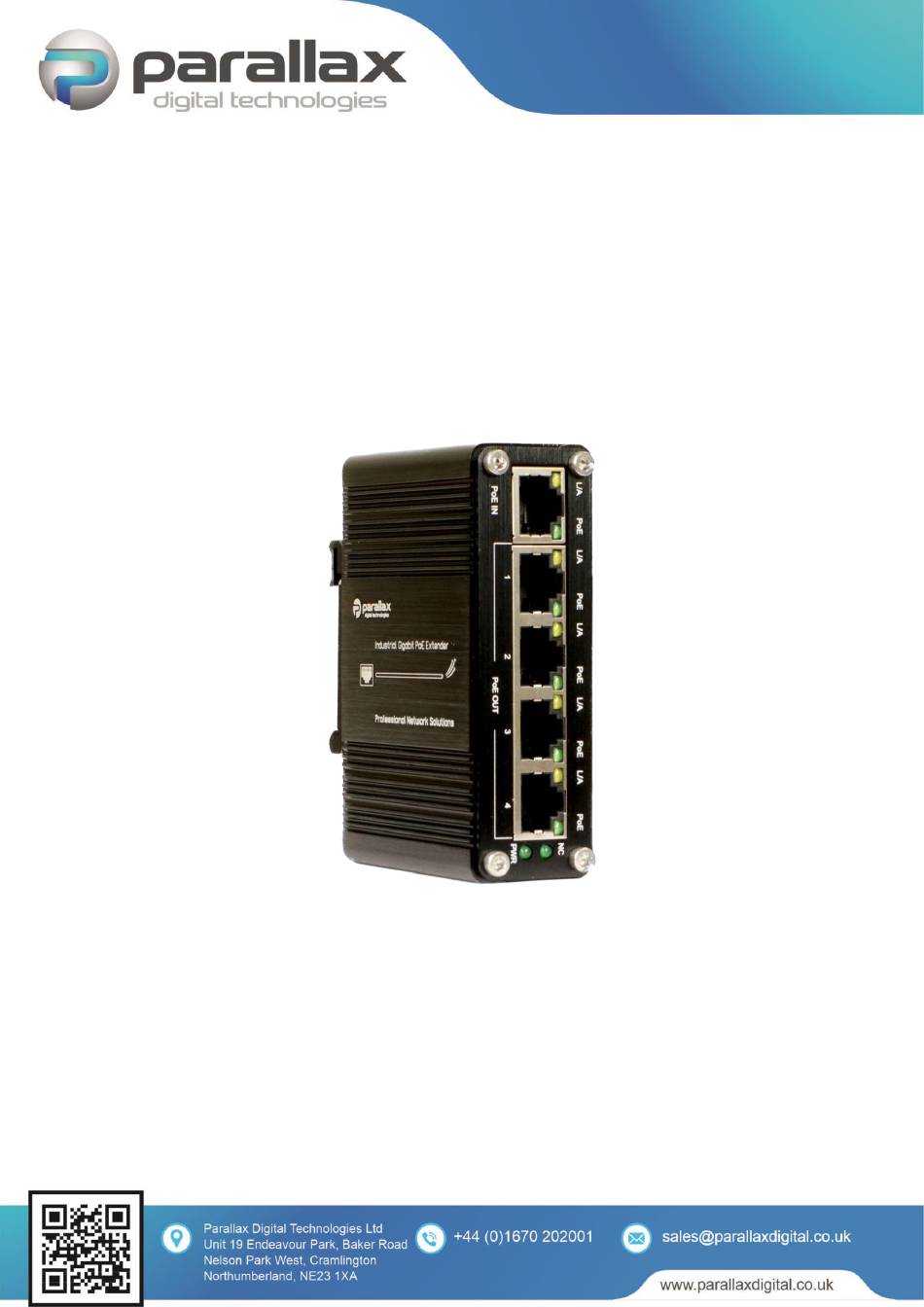

- Page 1 Operations Manual PDT-PEX-7004-PP-I Revision 1.0 – March 2024...
-
Page 2: Table Of Contents
Table of Contents Revision History .............................2 Abbreviations ..............................3 Safety Information ............................4 General Safety Information ........................4 DC Power Supply ...........................4 Packing List ..............................4 Product Overview ............................5 Connectors and Indicators ..........................6 LED Indicators ............................6 RJ45 Ports ..............................6 Installation Procedures ..........................7 DIN Rail Installation ..........................7 Wall Mount Installation ........................7 Connection and Setup ............................8 Inspection Checks ..........................8... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 26/03/2024 Initial Release 26/03/2024... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Access Point Copper-Clad Aluminium Direct Current IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power Supply Unit... -
Page 5: Safety Information
Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Product Overview
5. Product Overview The PDT-PEX-7004-PP-I is a hardened 4 Channel Gigabit Ethernet PoE Extender which facilitates connectivity for IEEE 802.3 af/at devices, such as cameras, access points, and other PoE devices, up to a range of 100m from the device, and in locations where there is no power source available. -
Page 7: Connectors And Indicators
6. Connectors and Indicators Front Panel 6.1 LED Indicators The Front Panel LEDs display the status of the switch and the associated port connections as indicated in the table below: Name Colour State Status Unit Power Off Power Green Unit Power On No Llink Link Activity Yellow... -
Page 8: Installation Procedures
7. Installation Procedures 7.1 DIN Rail Installation Attach the DIN Rail Bracket (if not fitted) to Clip the upper edge of the bracket onto the the switch case using the screws supplied DIN Rail and push to latch the bottom strip 7.2 Wall Mount Installation Attach the Wall Mount Bracket (if not fitted) Mount the switch to the required surface... -
Page 9: Connection And Setup
Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing. -
Page 10: Hardware Specification
10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) Packet Buffer... - Page 11 CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020 Emissions EN 55032:2015+A1:2020 Radiated Immunity EN 55035:2017+A1:2020 Harmonic Emissions EN 61000-3-2:2014 Fluctuations and Flicker EN 61000-3-3:2013 Electro-Static Discharge EN 61000-4-2:2009 Electromagnetic Field Immunity EN 61000-4-3:2010 Electrical Fast-Transients EN 61000-4-4:2012 Surge EN 61000-4-5:2014+A1:2017 Conducted Immunity EN 61000-4-6:2014 Power Frequency Magnetic Field EN 61000-4-8:2010 RoHS...
