INSTRUCTION, USE AND
MAINTENANCE HAND - BOOK

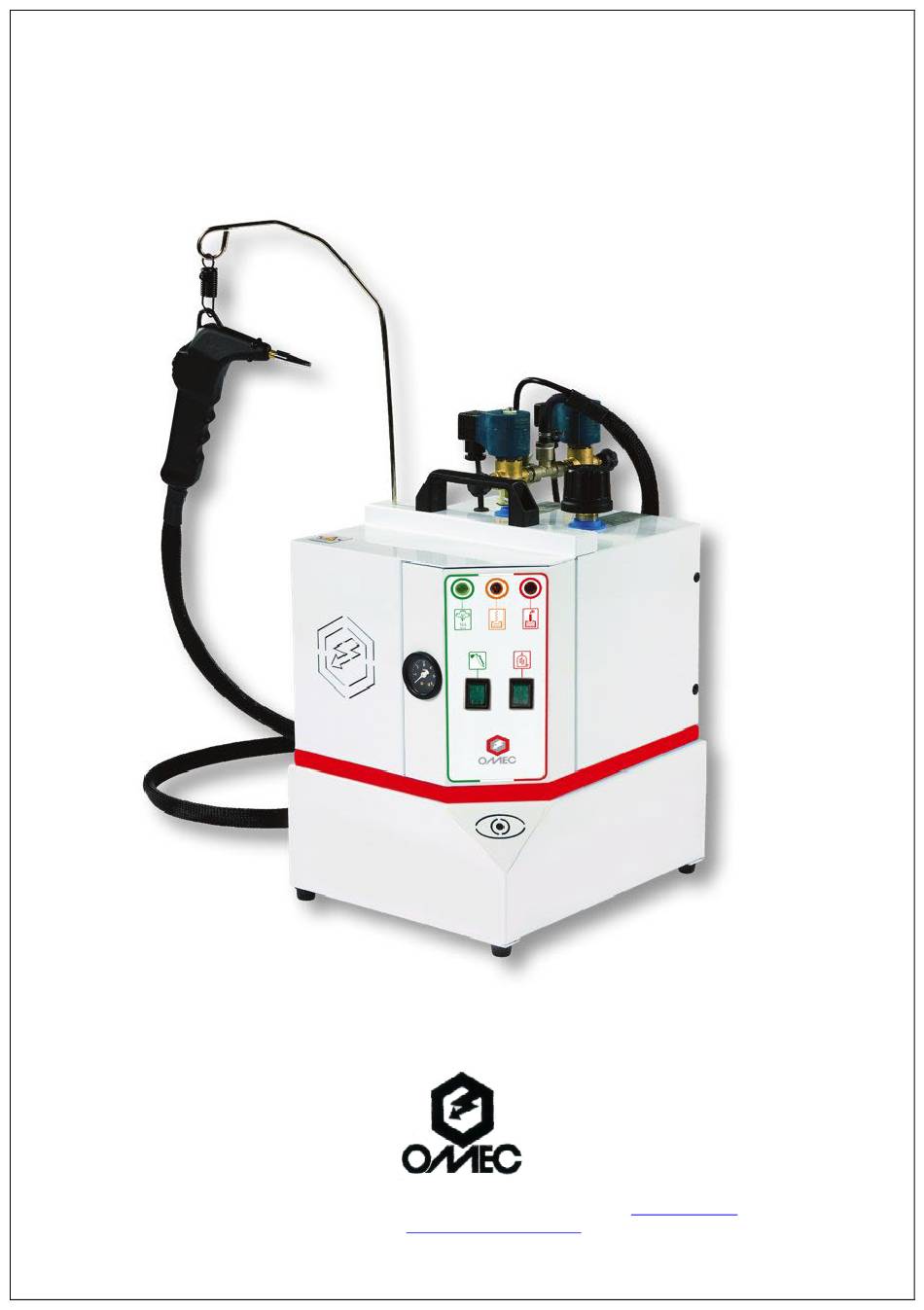

Machine: STEAM CLEANER
Type: GP.21.A.00
O.M.E.C Snc di R. Carnevale & C. - Via dell'Artigianato 3/5/7 - 20835 Muggiò (MB? - Italy
Ph. No. +39-039-793740 - Fax no. +39-039-2780689 - E-mail
export@omec-snc.com
Web site
www.omec-group.com.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP.21.A.00 and is the answer not in the manual?

Questions and answers

Related Manuals for Omec GP.21.A.00

Summary of Contents for Omec GP.21.A.00

  • Page 1 INSTRUCTION, USE AND MAINTENANCE HAND - BOOK Machine: STEAM CLEANER Type: GP.21.A.00 O.M.E.C Snc di R. Carnevale & C. - Via dell’Artigianato 3/5/7 - 20835 Muggiò (MB? - Italy Ph. No. +39-039-793740 - Fax no. +39-039-2780689 - E-mail export@omec-snc.com Web site...

  • Page 2: Product Description

    I N D E X SIDE I WARNINGS, PRECAUTIONS AND GENERAL ADVICES Page No. 1.1.1 Warnings 1/11 1.2.1 Precautions 1/11 SIDE II PRODUCT DESCRIPTION 1.3.1 General advices 1/11  2.1.1 Technical data 1/11 2.2.1 External body description 1/11 2.3.1 Boiler description 1/11 2.4.1 Heating element description...

  • Page 3: General Advices

    (due to bad carrying). b) Follow carefully the instructions for installing the machine. c) The OMEC STEAM CLEANER TYPE GP.21.A must be used only by a skilled worker, and therefore machine ONLY AFTER HAVING...
  • Page 4 2006/115/EC Standards - Low voltage. b) The OMEC STEAM CLEANER TYPE GP.21.A must work with DEMINARALIZED water or with water coming from the hydro plant through a anti-lime / water softener. ABSOLUTELY AVOID...

  • Page 5: Assembling Instructions

    In this event the machine must be immediately switched off and fill the boiler again. OMEC IS NOT GUILTY FOR A WRONG OR IMPROPER US OF ITS STEAM CLEANER TYPE GP.21.A - Page 3/11 –...
  • Page 6 3.5.1 HOW TO FILL THE WATER IN THE TANK - Page 4/11 –...
  • Page 7 3.6.1 PICTURE NO. 1 1 – STEAM OUTGOING ACTUATOR 8 – FUSE 2 – WATER OUTGOING ACTUATOR 9 – ELECTRO-VALVE 3 – SAFETY WATER LOADING PLUG 10 – WATER QUANTITY REGULATING COCK 4 – QUANTITY STEAM REGULATING 11 – STEAM PRESSURE GAUGE COCK 12 –...
  • Page 8 3.7.1 PICTURE NO. 2 - TAV A - Page 6/11 -...
  • Page 9 3.7.2 PICTURE NO. 2 - TAV B 3.8.1 SPARE PAT LIST - Page 7/11 -...

  • Page 10: Maintenance Instructions

    TAV A GP.92.4.01 BASE TAV B GP.92.3.72 UNLOADING PIPE DIAM. 10 X 7 X 300 TAV A GP.92.3.16 RUBBER FOOT 19X13-ART. 730 TAV A GP.92.4.14 SCREW 4x10 TCR TAV B GP.92.3.69 BALL COCK 1/4 “ F/F WITHOCC TAV A GP.92.4.15 SCREW 4x20 TCR TAV B GP.92.4.16...

  • Page 11: Routine Maintenance

    Screw the holder-fuse cover properly. c) Replace the fuse with one of the same value. TROUBLES: The OMEC STEAM CLEANER TYPE GP.21.A does not heat the water and does not reach the pressure. CAUSES: a) The manual reset thermostat (24) has worked due to a too high temperature happened previously.
  • Page 12 SIDE V ELECTRIC DIAGRAM 5.1.1. ELECTRIC DIAGRAM INL1 PISTOL ACTUATOR INL2 STEAM CLEANER ACTUATOR CONNECTOR CONTACTS END WATER WARNING LIGHT MAX. PRESSURE WARNING LIGHT BOILER HEATING ELEMENT WARNING LIGHT BOILER THERMOSTAT MANUAL RESET THERMOSTAT BOILER HEALTING ELEMENT STEAM SOLENOID VALVE AIR PRESSURE SWITCH MICRO-SWITCH FUSE...
  • Page 13 Directive: 2006/42/EC, EC 88/642, 2014/30/UE EMC, 2014/35/UE (Low Voltage), EC 9368, UNI EN 60204- 6.1.2 WASTE 1, UNI EN 60204-1/A1, PED 97/23 - EC 87/404 (Pressure European Directive) The MACHINE life essentially depends on the preservation, using, maintenance and life time of its components.
