Download
Share
Print this page

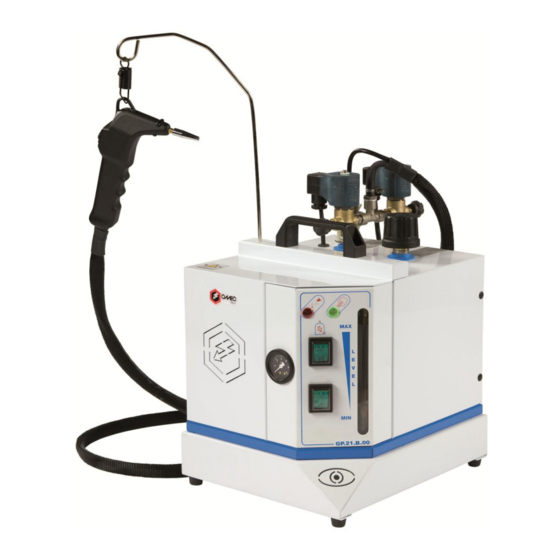

Omec GP.92.5.00 Instruction, Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. Omec Manuals
  4. Steam Cleaner
  5. GP.92.5.00
  6. Instruction, use and maintenance manual

Omec GP.92.5.00 Instruction, Use And Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

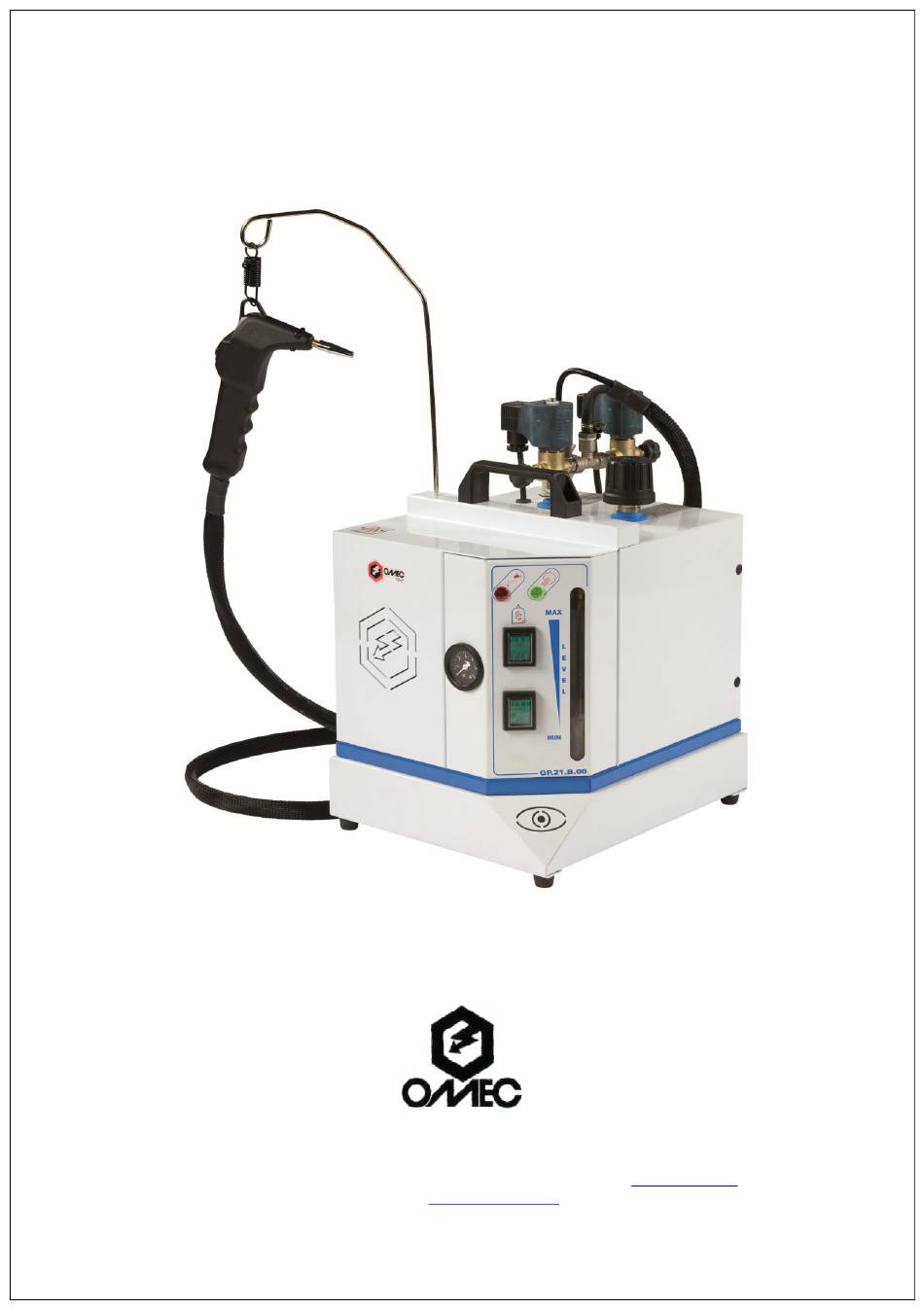

INSTRU C TIO N, U SE A ND
M A INTENA NC E H A ND - BO O K
M achine: STEA M C L EA NER
Type: G P.92.5.00
O.M.E.C Snc di R. Carnevale & C. - Via dell'Artigianato 3/5/7 - 20835 Muggiò (MB? - Italy
Ph. No. +39-039-793740 - Fax no. +39-039-2780689 - E-mail
export@omec-snc.com
Web site
www.omecitalia.com
I N D E X

Advertisement

loading
Need help?

Need help?

Do you have a question about the GP.92.5.00 and is the answer not in the manual?

Questions and answers

Related Manuals for Omec GP.92.5.00

Summary of Contents for Omec GP.92.5.00

  • Page 1 M achine: STEA M C L EA NER Type: G P.92.5.00 O.M.E.C Snc di R. Carnevale & C. - Via dell’Artigianato 3/5/7 - 20835 Muggiò (MB? - Italy Ph. No. +39-039-793740 - Fax no. +39-039-2780689 - E-mail export@omec-snc.com Web site www.omecitalia.com I N D E X...
  • Page 2 SID E I W A RNING S, PREC A U TIO NS A ND G ENERA L A D VIC ES Page No. 1.1.1 Warnings 1/11 1.2.1 Precautions 1/11 1.3.1 General advices 1/11 SID E II PRO D U C T D ESC RIPTIO N ...
  • Page 3 (due to bad carrying). b) Follow carefully the instructions for installing the machine. c) The OMEC STEAM CLEANER TYPE GP.92.5 must be used only by a skilled worker, therefore machine ONLY AFTER HAVING READ CAREFULLY and understood the instruction hand book.
  • Page 4 2006/95/EC Standards - Low voltage. b) The OMEC STEAM CLEANER TYPE GP.92.5 must work with DEMINARALIZED water or with water coming from the hydro plant through a anti-lime / water softener.

  • Page 5: U Sing Instru C Tio Ns

    The supply wire or the steam pipe is damaged. b) The machine has fallen down and is visibly damaged. 3.2.1 A SSEM BL ING INSTRU C TIO NS  Put the OMEC STEAM CLEANER TYPE GP.92.5 on a piece of furniture assuring a good stability to the machine.
  • Page 6 c) Unscrew the water loading plug (3) and fill the tank by water until the level is reached, as shown by the spy hole. d) Screw the water loading plug (3) properly. e) Wait until the machine reaches the optimal pressure of about 4.5- 5 bars which will be indicated by the steam pressure gauge (11), the lighting up of the led (12).
  • Page 7 1 – OUTGOING STEAM ACTUATOR 8 – FUSE 2 – WATER OUTGOING ACTUATOR 9 – ELECTRO-VALVE 3 – SAFETY WATER LOADING PLUG 10 – WATER QUANTITY REGULATING COCK 4 – QUANTITY STEAM REGULATING 11 – STEAM PRESSURE GAUGE COCK 12 – MAX. PRESSURE LED 5 –...
  • Page 8 - Page 6/11 - 3.7.1 PIC TU RE NO . 2 - TA V B...
  • Page 9 - Page 7/11 - 3.8.1 SPA RE PA T L IST TAV A GP.92.4.01 BASE TAV B GP.92.3.72 UNLOADING PIPE DIAM. 10 X 7 X 300 TAV A GP.92.3.16 RUBBER FOOT 19X13-ART. 730 TAV A GP.92.4.14 SCREW 4x10 TCR TAV B GP.92.3.69 BALL COCK 1/4 “...
  • Page 10 TAV B GP.92.4.06 CARBON TERMINAL N.6 PA27 TAV B GP.92.4.07 PIN FOR CARBON TERMINAL PA27-PIN PA197 TAV B GP.92.3.67 MANUAL RESET THERMOSTAT 165'FASTON TAV A GP.92.4.10 BOILER REST TAV B GP.92.3.25 COPPER SPIRAL(FOR MANOMETER)D.3 1/8F-1/M TAV B GP.92.3.22 CORNER (EXTENSION) ¼” M/F X 50 TAV B GP.92.3.27 CORNER UNION M/F ¼”...
  • Page 11 Screw the holder-fuse cover properly. c) Replace the fuse with one of the same value. - Page 9/11 – TROUBLES: The OMEC STEAM CLEANER TYPE GP.92.5 does not heat the water and does not reach the pressure. CAUSES: a) The...

  • Page 12: Electric Diagram

    a) Reset manual reset thermostat (67) by pushing the little red push-button and in the same time check that the pre-fixed pressure of the CLEANER is on rest. b) Clean the boiler and pickle the inner walls before replacing a new heating element (24).
  • Page 13 6.1.2 W A STE The MACHINE life essentially depends on the preservation, using, maintenance and life time of its components. Above all it is important that the MACHINE is preserved under suitable environment and climatic conditions: environment is to be dry, not dusty and without any exhalation caused acid...
  • Page 14 Электрическое питание: Номинальное напряжение, В/Гц: 220/ 50 Номинальный ток, А: 7,2 Максимальная потребляемая мощность, ВА: 1,6 Габариты Д х Ш х В, мм: 350 х 270 х 400 Вес, кг: 14 Срок и условия гарантии Гарантий 1 год. Гарантия не распространяется на быстроизнашивающиеся и расходуемые части: прокладки, лампы, источники...
