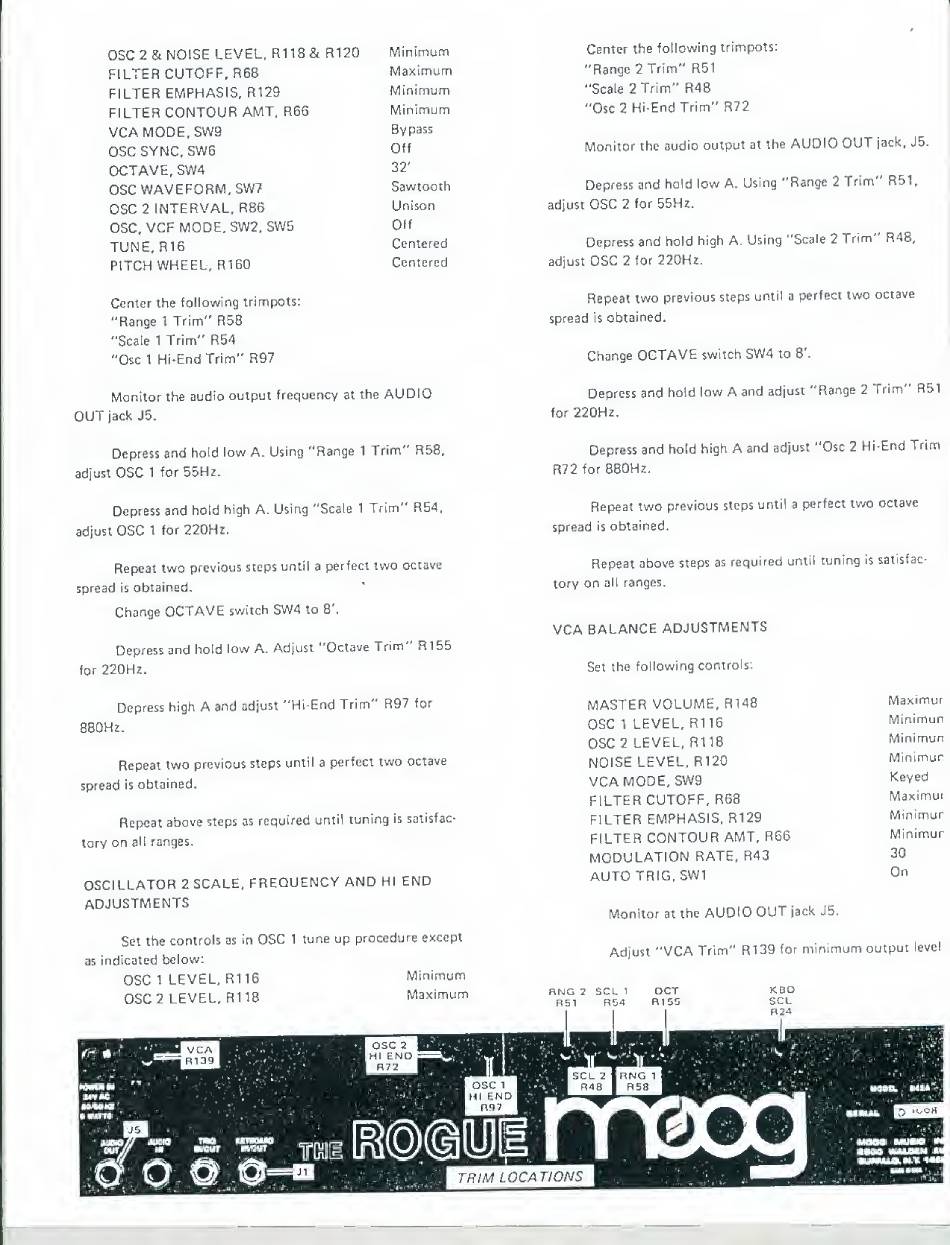

0SC2
&
NOISE LEVEL,
R118&
R120
Minimum
FILTER
CUTOFF,
R68
Maximum
FILTER EMPHASIS, R129
Minimum
FILTER
CONTOUR
AMT,
R6Q
Minimum
VGA MODE,
SW9
Bypass
OSC SYNC, SW6
Off
OCTAVE, SWA
32'
OSC
WAVEFORM,
SW7
Sawtooth
OSC
2
INTERVAL, R86
Unison
OSC,
VCF MODE. SW2,SW5
Off
TUNE,
R16
Centered
PITCH
WHEEL,
R160
Centered
Center
the following trimpots:
"Range
1
Trim" R58
"Scale
1
Trim" R54
"Osc
1
Hi-End
Trim"
R97
Monitor
the
audio output frequency
at
the
AUDIO
OUT
jack J5.
Depress
and
hold
low
A. Using
"Range
1
Trim"
R58,
adjust
OSC
1
for55Hz.
Depress
and
hold
high
A. Using
"Scale
1
Trim"
R54,
adjust
OSC
1
for220Hi.
Repeat
two
previous
steps
until
a
perfect
two
octave
spread
is
obtained.
Change
OCTAVE
switch
SWA
to
8'.
Depress and hold
low
A.
Adjust "Octave
Trim"
R155
for
220H2.
Depress high
A
and
adjust
"Hi-End
Trim" R97
for
8B0HZ.
Repeat
two
previous
steps
until
a
perfect
two
octave
spread
is
obtained.
Repeat above
steps
as
required
until
tuning
is
satisfac-
tory
on
all
ranges.
OSCILLATOR
2
SCALE,
FREQUENCY AND
HI
END
ADJUSTMENTS
Set the controls
as in
OSC
1
tune
up
procedure except
as
indicated
below:
OSC
1
LEVEL,
R1
16
Minimum
OSC
2
LEVEL, R11&
Maximum
Center
the following trimpots:
"Range
2
Trim" R51
"Scale
2
Trim"
R48
"Osc
2
Hi-End
Trim"
R72
Monitor
the
audio output
at
the
AUDIO
OUT
jack, J5.
Depress
and
hold
low
A. Using
"Range
2
Trim"
R51.
adjust
OSC
2
for
55Hz.
Depress
and
hold
high A.
Using
"Scale
2
Trim" R48,
adjust
OSC
2
for
220Hz.
Repeat
two
previous
steps
until
a
perfect
two
octave
spread
is
obtained.
Change
OCTAVE
switch
SW4
to
8'.
Depress and hold
low
A
and
adjust
"Range
2
Trim" R51
for
220Hz.
Depress
and
hold high
A
and
adjust
"Osc
2
Hi-End Trim
R72for
B80HZ.
Repeat
two
previous
steps
until
a
perfect
two
octave
spread
is
obtained.
Repeat above
steps
as
required
until
tuning
is
satisfac-
tory
on
all
ranges,
VGA BALANCE
ADJUSTMENTS
Set the
following
controls;
MASTER VOLUME,
R148
OSC
1
LEVEL, R116
OSC
2
LEVEL, R118
NOISE LEVEL, R120
VGA
MODE, SW9
FILTER
CUTOFF,
R6B
FILTER EMPHASIS, R129
FILTER
CONTOUR
AMT,
R66
MODULATION
RATE, R43
AUTO
TRIG,
SW1
Maximur
Minimur
Minimurr
Minimur
Keyed
Maximui
Minimur
Minimur
30
On
Monitor
at
the
AUDIO
OUT
jack J5.
Adjust
"VGA
Trim"
R139
for
minimum
output
level
RNG
2
SCL
1
R51
R^4
OCT
Rtr-';
