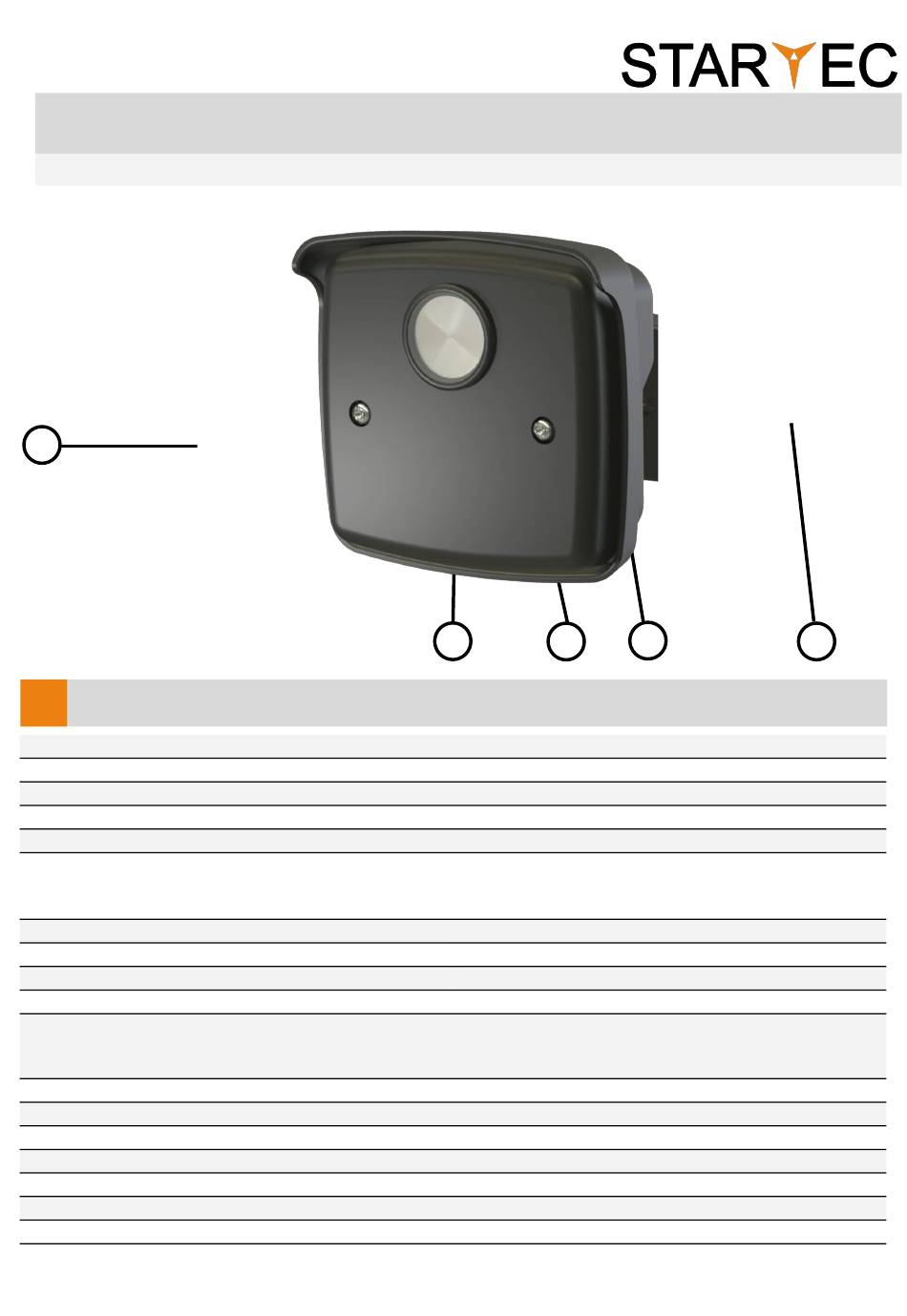

STARTEC SECURITY SYSTEM Quick Start Manual

CAPTURE LOOP
Vehicle detection sensor for barriers and gates - Radar + Ultrasonic
1
1. Front cover
2. Radar module
3. Ultrasound module
4. Dip switch
5. Mounting bracket
TECHNICAL SPECIFICATIONS
1
Technology:
Transmission frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Detection zone:
Minimum detection speed:
Vehicle speed
Supply voltage:
Max power consumption:
Output/Input:
Mounting height:
Protection class:
Temperature range:
Inclination angles:
Materials:
Weight:
Cable length:
Technical data may be changed without prior warning.
* The use of the sensor other than described cannot be guaranteed by the manufacturer.
** Under optimal ambient conditions.
2
3
Microwave doppler radar + Ultrasonic Module
24,150 GHz
< 20 dBm EIRP
2
< 5 mW/cm
Motion + Vehicle presence
Radar: 15 m ; Ultrasonic: 7,65m
Ultrasonic Field of View area: 60 cm² at 7 m. distance
3-4 Km/h
3 to 50 Km/h
12V/24V AC/DC - 50 - 60 Hz i(nsert a 1A fuse on external power supply)
< 2 W
2 outputs: NO/NC configuration (Normally open/closed)
Max. load voltage: 42V peak or DC; Max. load current: 500 mA
1 input: wake/inhibit
1 m to 3 m (recommended 1,5 m)
IP65
-30 °C to +60 °C
+/- 45°
ADA + Polycarbonate
650g with cable
10 m.
1
4
5
v1.0.0
