STARTEC CAPTURE RADAR 1.0.1 Manual

Microwave motion detector for industrial doors
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Art. 50500404 Art. 50500435
Art. 50500436 Art. 50500437
CAPTURE RADAR 1.0.1
Microwave motion detector for industrial doors* (2 m - 10 m)
1

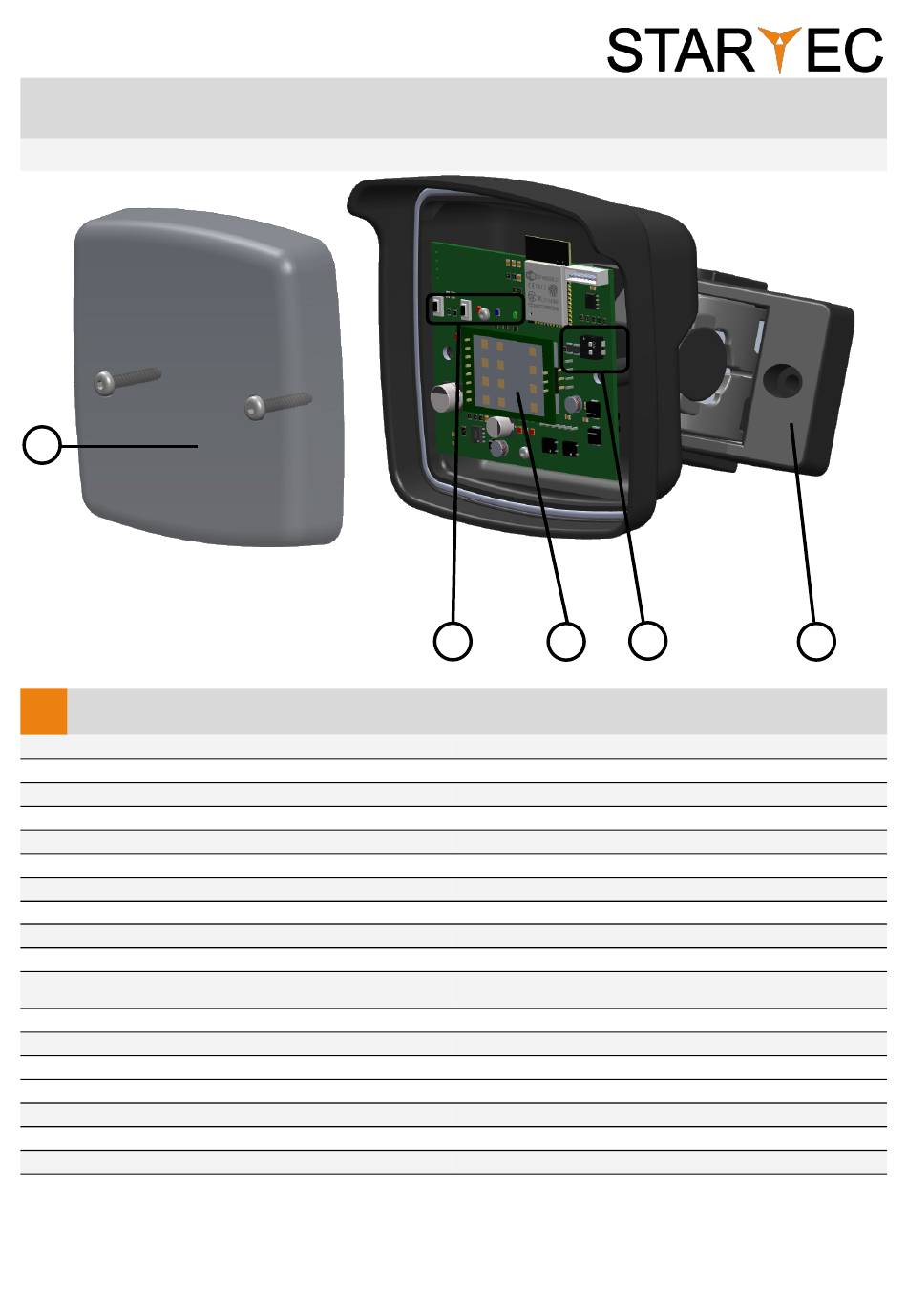

1. Front cover
2. Programming Buttons and LEDs
3. Radar module
4. Dip switch
5. Mounting bracket
TECHNICAL SPECIFICATIONS
1
Technology:
Transmission frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Detection zone:
Minimum detection speed:
Supply voltage:
Mains frequency:
Max power consuption:
Outputs:
Mounting height:
Protection class:
Temperature range:
Inclination angles:
Materials:
Weight:
Cable lenght:
Norm conformity:
Technical data may be changed without prior warning.
* The use of the sensor other than described cannot be guaranteed by the manufacturer.
** Under optimal ambient conditions.
2
3
Microwave doppler radar
24,150 GHz
< 20 dBm EIRP
2
< 5 mW/cm
Motion
34° x 80°
5 cm/s**
12V/24V AC/DC insert a 1A fuse on external power supply
50 - 60 Hz
< 2 W
2 outputs: NO/NC configuration (Normally open/closed)
Max. load voltage: 42V peak or DC; Max. load current: 500 mA
2-10 m
IP65
-30 °C to +60 °C
0° to 45° vertically; +30°, +15°, 0°, -15°, -30° horizontally
ADA + Polycarbonate
240g without cable, 637g with cable
Available in 4 versions: a) 6 m, b) 8 m, c) 10 m, d) 15 m
EN IEC 62311:2020; EN IEC 62368-1:2014/AC:2015/AC:2017/A11:2017;
EN 55032:2015 + A11:2020; EN 55035:2017/A11:2020;
ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-3 V2.1.1;
ETSI EN 301 489-17 V3.2.4; EN 300 328 V2.2.2
1
4
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPTURE RADAR 1.0.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for STARTEC CAPTURE RADAR 1.0.1

  • Page 1 Art. 50500404 Art. 50500435 Art. 50500436 Art. 50500437 CAPTURE RADAR 1.0.1 Microwave motion detector for industrial doors* (2 m - 10 m) 1. Front cover 2. Programming Buttons and LEDs 3. Radar module 4. Dip switch 5. Mounting bracket TECHNICAL SPECIFICATIONS...

  • Page 2: Mounting And Wiring

    MOUNTING ADVICE Avoid unstable surfaces Mount sensor away Objects such as fans, and vibrations. from fluorescent or plants, etc must not HID light sources. protrude into the detection area. MOUNTING AND WIRING Can be mounted on the Tilt completely the sensor on Connect the wires to the door entire lenght of the one side to have access to...
  • Page 3 CONFIGURATION THROUGH PUSH BUTTONS Remove the 2 screws from the front cover to have access to the configuration push buttons. The configuration is done through 2 push buttons and 3 colored LEDs (red, blue, green). To START or STOP A CONFIGURATION SESSION, keep the left button pressed until the 3 configuration LEDs flash 2 times.

  • Page 4: Parameters Configuration

    PARAMETERS CONFIGURATION Field size: Regulate the width of the detection area. Starts from level 1 (minimum width), to level 7 (maximum width). More specific configuration can be set with the smartphone app; -15°,+15° -20°,+20° -25°,+25° -30°,+30° -35°,+35° -40°,+40° -45°,+45° Radar sensitivity: the sensitivity and the interference filter can be regulated from level 1 (lowest sensitivity and filter) to level 7 (strong sensitivity + strong filter);...

  • Page 5: Led Meaning

    DIP SWITCH AND OTA UPDATE Normally DIPs must be set Off. DIP 1: not used. DIP 2: when set On, enables OTA (Over the air) update with the following procedure: • Disconnect power supply and set DIP 2 ON; • Connect power supply and wait until the 3 LEDs flash continuously.

  • Page 6: Smartphone Application

    The radar can also be configured through the free CaptureRadar app, available for Android and iOS. The only way to access the change of advanced parameters is to request the password from the dealer. Search “Capture Radar Startec” on your App Store, or use the QR_Code.
  • Page 7 STARTEC hereby declares that the CAPTURE is in conformity with the basic requirements and the other relevant provisions of the directives 2014/53/UE and 2011/65/UE. Devices with this symbol must be treated separately during disposal. This must be done in accordance with the laws of the respective countries for environmentally sound disposal, processing and recycling of electrical and electronic equipment.

This manual is also suitable for:

50500404505004355050043650500437
