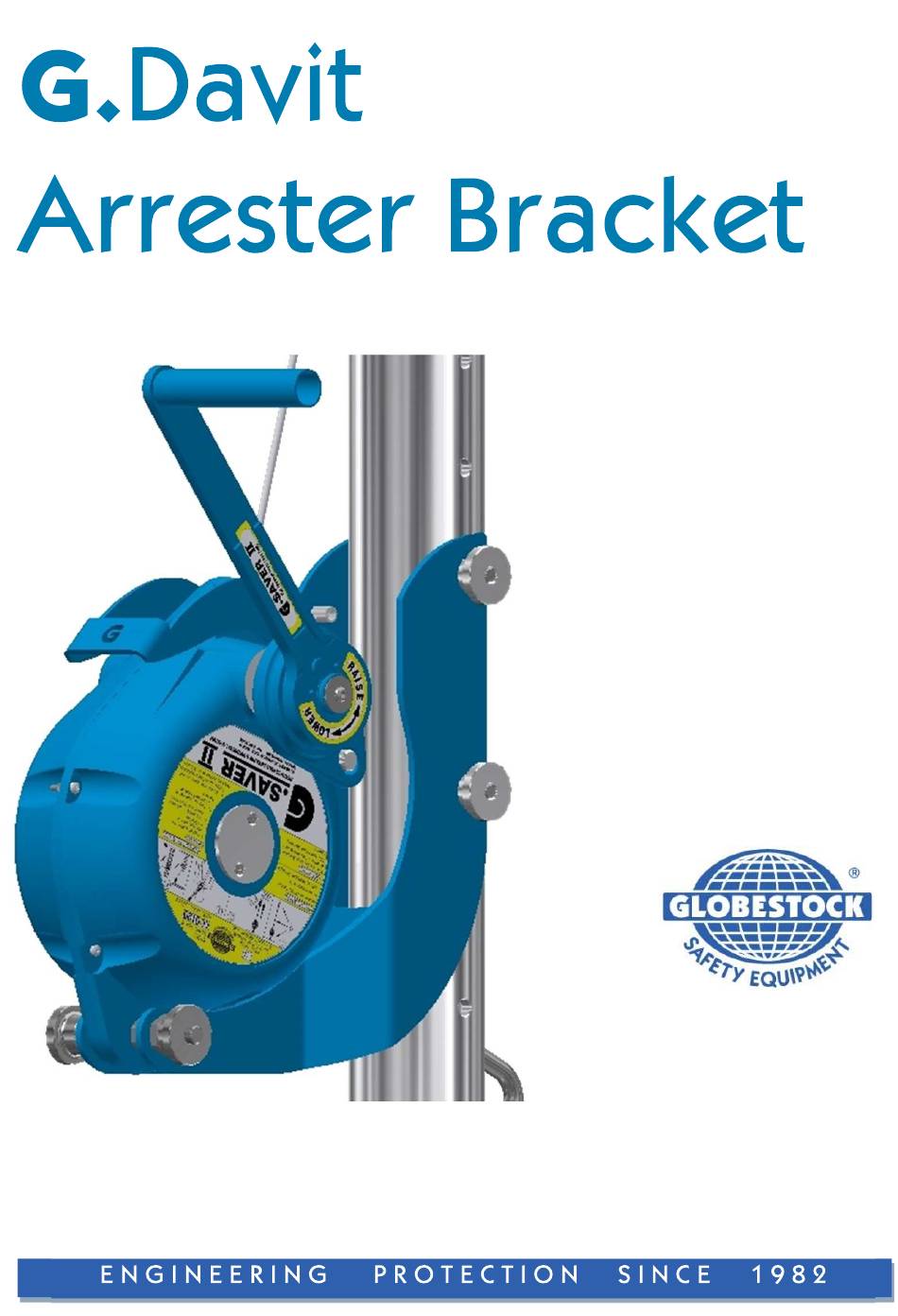

User Instruction Manual
(Original Instructions)
A bracket designed to
fit the G.Davit.
Suitable for G.Saver II
and the G.Stop fall
arresters.
Issue 03
January 2021
T: +44 (0) 1691 654 966
info@globestock.co.uk
www.globestock.co.uk
@Globestock_Ltd
Globestock Limited, Mile Oak Industrial Estate,
Maesbury Road, Oswestry, Shropshire, SY10 8GA UK
Advertisement
Table of Contents
Related Manuals for Globestock G.Davit
Summary of Contents for Globestock G.Davit
- Page 1 A bracket designed to fit the G.Davit. Suitable for G.Saver II and the G.Stop fall arresters. Issue 03 January 2021 T: +44 (0) 1691 654 966 info@globestock.co.uk www.globestock.co.uk @Globestock_Ltd Globestock Limited, Mile Oak Industrial Estate, Maesbury Road, Oswestry, Shropshire, SY10 8GA UK...
-
Page 2: Table Of Contents
Periodic Examination ..................... 10 Service And Test Recertification ..................10 Repairs ........................... 10 Cleaning Storage And Transportation ................10 Examination Record Sheet ....................11 SGS Fimko Ltd. Takomotie 8,00380 Helsinki, Finland Notified Body Number 0598 EU Declaration Of Conformity available at https://www.globestock.co.uk/technical/declarations-of-conformity/... -
Page 3: Important Notice
It may be necessary, due to terrain/location, for 2 persons to set up the G.Davit. It is not advised to fit the G.Davit into its socket with winches or other equipment already attached. Any accessory should be added to the Davit after it is located in the socket. -
Page 4: Arrester Bracket Mounting Instructions
When setting up the accessories on the G.Davit, the operator should stand with the G.Davit between themselves and the entrance. The davit arm can be rotated to gain safe access to the pulley pins on the top of the mast and boom extension. -
Page 5: Attaching The Bracket To The Mast
Attaching the bracket to the mast Once the height of the arrester has been decided the bracket can be attached to the mast. Hold the bracket in one hand and offer the bracket up to the mast ensuring that the holes for the bolts are aligned correctly. With your other hand locate the bolt into the hole at the top of the bracket and push it through the mast until it can’t go any further. -
Page 6: Attaching The Spacers To The Bracket
When attaching the arrester to the arrester bracket the operator should stand in line with the bracket with the G.Davit between themselves and the entrance. The G.Davit arm can be rotated to gain safe access to the pulley pins on the top of the mast and boom extension. - Page 7 Fig.05 Once you have the arrester in place, push the bolt through the aligned bolt holes until it can’t go in any further and tighten the hand nut. Once the bolt is in place and the hand nut has been tightened the top bracket can be attached to secure the arrester in the correct alignment.
-
Page 8: Attaching The Top Bracket
Attaching the top bracket While fitting the top bracket it is important to make sure that you have attached the top bracket to the main bracket using the correct bolt holes. See figure 07. 14mtr G.Saver II Fig.07 20 & 34mtr G.Saver II Make sure the top bracket is in the correct position and is being firmly pressed down onto the arrester while tightening the attachment bolts. -
Page 9: Considerations For Use
Repairs or servicing should never be carried out on site or in the field, other than by Globestock-approved personnel. Do not tamper with or modify the unit. Before Use Inspections The G.Davit and all associated brackets need to be thoroughly inspected before each and every use. ... -
Page 10: Periodic Examination
On passing this detailed inspection the examination record can be completed, signed off and the unit returned for use. Every 12 months the G.Davit and all associated brackets require a full examination by Globestock or a Globestock approved servicing agent.
