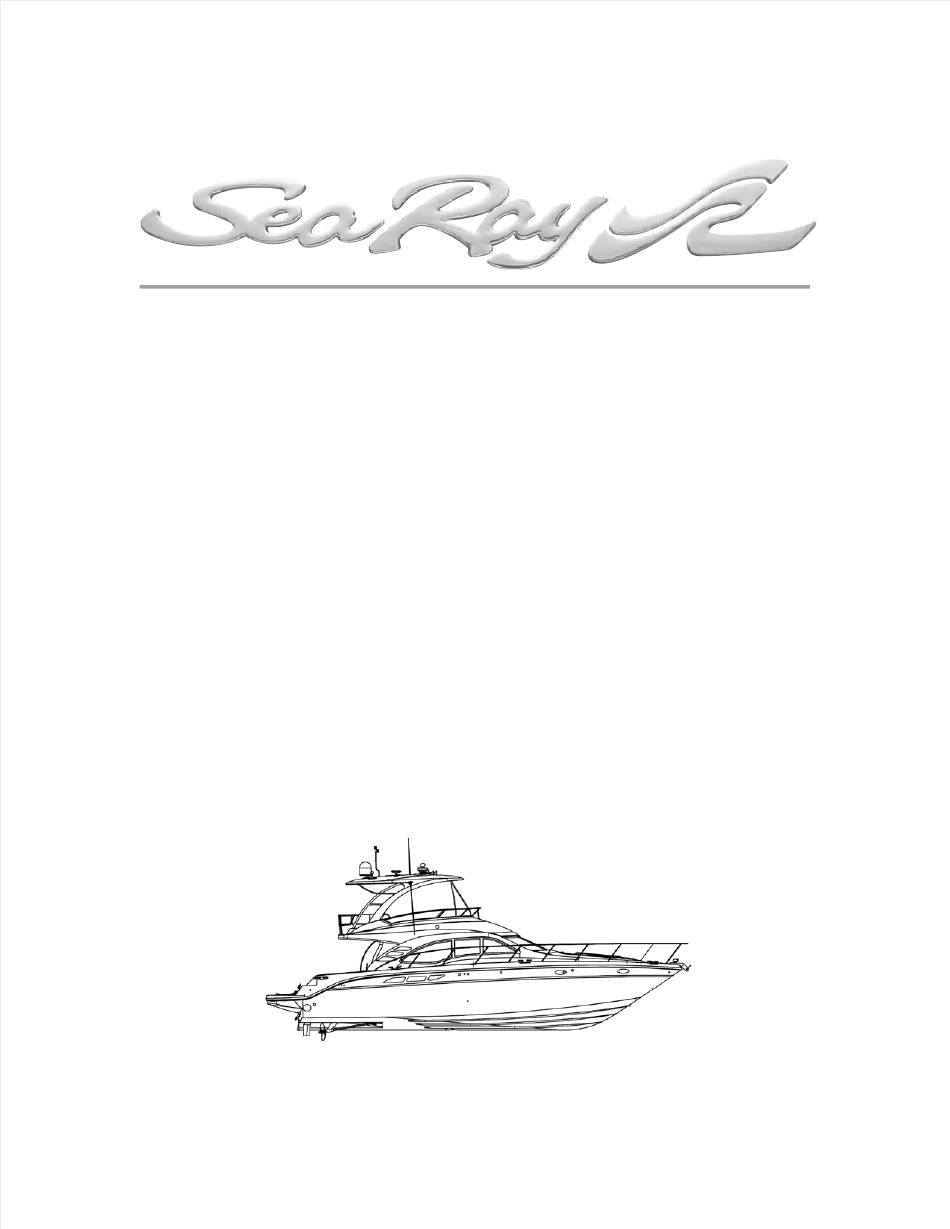

  • Page 1 Owner’s Manual 520 Sedan Bridge Manual Part Number: MRP 2029352...
  • Page 3 Owner’s options please visit www.searay.com. There you Manual. will be able to view all Sea Ray manuals and any items that are not included in this manual. The Owner’s Information Packet contains the...
  • Page 4 Information in this publication is based upon the latest product specifications available at printing. Sea Ray ® Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, specifications, materials and prices of all models, or to discontinue models. Should changes in production models be made, Sea ®...

  • Page 5: Table Of Contents

    15. Entertainment Centers ......... 16 16. Canvas ..............18 17. Electrical Schematics........... 18 ndex This publication does not contain component or accessory manuals. Please visit www.searay.com for a complete library of all Sea Ray Owner’s and Accessory Manuals Sea Ray Boats...

  • Page 7: I Ntroduction

    You must register this boat in the state where it will be used most frequently, many states require additional registration when an out-of-state boat is used within their boundaries. Contact state boating authorities or any marine dealer for registration requirements. Sea Ray Boats...

  • Page 8: Dealer Responsibilities

    These HULL are included with your Owner’s Manual Packet. IDENTIFICATION NUMBER The Sea Ray® Express Limited Warranty is on the warranty information sheet and in this manual. Please locate and read the individual warranties. Sea Ray Boats...

  • Page 9: Manufacturer's Certification

    Sea Ray dealer. To ® the United States Coast Guard who has authority to find a dealer in your area contact Sea Ray ® enforce these laws on boat manufacturers that sell the internet at www.searay.com (international products in the United States.
  • Page 10 The new owner can submit this request, free of charge, via the searay.com website or through a local authorized Sea Ray Dealer where processing fees may be applied. Sea Ray reserves the right to reject any warranty transfer request for a boat that has been damaged, neglected, or otherwise previously excluded from warranty..

  • Page 11: 520 S Edan B Ridge O Wners M Anual

    You can be seriously injured if you slip and fall. WARNING Wear slip resistant footwear secured to your feet and Rear facing transom seats MUST NOT be used while hold on to rails or boat structure. engine is running or boat is moving. 520 Sedan Bridge...

  • Page 12: Safety Label Locations

    520 s edan rIdge Wners anual 3. s afeTY abel ocaTions afeTy abel ocaTIons . 2.1) 520 Sedan Bridge...
  • Page 13 520 s edan rIdge Wners anual afeTY abel ocaTions onTinueD afeTy abel ocaTIons abIn . 3.1) LOCATIONS: • HEAD WINDOWS • SALON MAIN DISTRIBU- TION PANEL 520 Sedan Bridge...
  • Page 14 520 s edan rIdge Wners anual afeTY abel ocaTions onTinueD afeTy abel ocaTIons abIn . 4.1) THIS TAG LOCATED ON BLOCK HEATER, GENERATOR CONVERTER, MAIN BATTERY CHARGER/ CONVERTER, BATTERY EQUALIZERS & ALL A/C JUNCTION BOxES 520 Sedan Bridge...

  • Page 15: Basic Boat Dimensions And Clearances

    AND RUNNING CONDITIONS . 5.1) load WaTerlIne (c) 45" (114 (a) 52' 3" (15.9 520 Sedan bridge SpecificationS HeigHt dimenSionS ® (A) Overall Length (D) Waterline to Top of Mast Light ..21ft. 1.50in. 6.44 m With Swim Platform ....52ft. 3in.

  • Page 16: Function And Location Of Through-Hull Cutouts

    Ilge HrougH uTouTs . 6.3) PORT SHAFT LOG A/C SEACOCK STARBOARD ENGINE SEACOCK TRANSDUCER PORT ENGINE SEACOCK BRIDGE A/C DISCHARGE STARBOARD SHAFT LOG STARBOARD RUDDER POST MACERATOR DISCHARGE (OPTIONAL) BAITWELL SEACOCK (OPTIONAL) GENERATOR SEACOCK PORT RUDDER POST 520 Sedan Bridge...

  • Page 17: Control Station Layout

    TaTIon . 7.1) SEA RAY NAVIGATOR II SPOTLIGHT CONTROL MAGNETIC COMPASS THROTTLE CONTROLS RADAR (OPTIONAL SEA RAY NAVIGATOR SEA RAY NAVIGATOR MOUSE (OPTIONAL) II W/INTEGRATED OPEN ARRAY RADAR BOW THRUSTER CONTROL (OPTIONAL) SHOWN) TRIM TAB SWITCHES SWITH PANEL GEAR SHIFT CONTROLS...
  • Page 18 STARBOARD ENGINE TACHOMETER PORT ENGINE TACHOMETER PORT ENGINE MULTIGAUGE ardToP . 8.2) DIGITAL SATELLITE (OPTIONAL) MAST LIGHT STEREO SATELLITE (OPTIONAL) STEREO SATELLITE (OPTIONAL) SEA RAY NAVIGATOR ANTENNA (OPTIONAL) HAILER (OPTIONAL) RADAR HORN HATCH TV (GLOMEx) ANTENNA VHF ANTENNA GPS (OPTIONAL)

  • Page 19: Deck Layout

    DECK HATCH (EMERGENCY ExIT) BRIDGE DINETTE TABLE CONTROL STATION (SEE FIGURE 2.8.1) BRIDGE AFT SEATING DAVIT SWIM PLATFORM SWIM LADDER TRANSOM STORAGE BRIDGE STEPS BRIDGE WET BAR PORT BOW LOCKER WINDLASS FOOT PEDALS SPOTLIGHT HARDTOP (SEE FIGURE 2.7.1) 520 Sedan Bridge...
  • Page 20 REFRIGERATOR TWO BURNER STOVE FREEZER GALLEY SINK COFFEE MAKER STARBOARD SALON SOFA (W/PULLOUT BED OPTIONAL) SALON ENTERTAINMENT CENTER PRIVACY CURTAIN MAIN DISTRIBUTION PANELS PORT SALON SEATING SALON TABLE DINETTE SEATING DINETTE TABLE WASHER/DRYER (OPTIONAL) CENTRAL VACUUM SYSTEM 520 Sedan Bridge...

  • Page 21: Cleats

    360 degrees. Read the “Federal Requirements and Safety Tips for Recreational Boats” provided in your kit. ALL-ROUND & STERN LIGHT, FORWARD LIGHT, WHITE LIGHT WHITE LIGHT (VISIBLE 2 (VISIBLE 3 NAUTICAL MILES) NAUTICAL MILES) 520 Sedan Bridge...

  • Page 22: Bilge Layout

    MAN ENGINE CONTROL BOx (OPTIONAL) POWER STEERING RESERVOIR SHORE POWER ISOLATION TRANSFORMER HIGH WATER FLOAT SWITCH STARBOARD FUEL FILTERS GENERATOR MUFFLER MAN ENGINE EOC TERMINAL BOx HORN ACCUMULATOR TANK WATER TANK (OPTIONAL) HORN COMPRESSOR STARBOARD ENGINE SEACOCK 520 Sedan Bridge...

  • Page 23: Fuel System, Gasoline

    *COLD CRANKING AMPS cockpit wetbar. RECOMMENDED BATTERY: DOUGLAS BATTERY TYPE: 31DCM, ITEM NUMBER: 989 OR EQUIVALENT DIMENSIONS: 13” x 6 ” x 10 ” nleTs . 13.2) STARBOARD PORT STARBOARD FUEL VENT FUEL FILL FUEL FILL PORT FUEL VENT 520 Sedan Bridge...

  • Page 24: Fire Extinguishing System

    • Before lowering the davit be sure that the davit is in forward facing orientation i.e. that the rotation bar is in line with its lowering slot. 520 Sedan Bridge...
  • Page 25 This will make system as 90% of all hydraulic system failures are rotation much easier and will provide better leverage due to oil contamination. if the vessel should heel over slightly. DO NOT push on the boom. 520 Sedan Bridge...

  • Page 26: Entertainment Centers

    26” television with DVD/CD. The 120 volt AC STBD SYSTEMS breaker must be ON to operate the system. Note: The television and DVD/CD units are plugged into a surge suppression power strip located behind the entertainment center. 520 Sedan Bridge...
  • Page 27 DVD into the system. To operate, turn ON the 120VAC STBD SYSTEMS breaker on the AC Main Distribution Panel. An optional 17” flat screen LCD/DVD TV combo is available for the starboard guest stateroom. 520 Sedan Bridge...

  • Page 28: Canvas

    ® on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your authorized Sea Ray dealer for service. Sea Ray ® ® reserves the right to change or update the electrical system on any model at any time without notice to the consumer and is NOT obligated to make any updates to units built prior to changes.
  • Page 29 520 s edan rIdge Wners anual dc W IrIng cHemaTIcs . 09-601 draWIng no . 19.1) 520 Sedan Bridge...
  • Page 30 520 s edan rIdge Wners anual dc W IrIng cHemaTIcs . 09-601 draWIng no . 20.1) 520 Sedan Bridge...
  • Page 31 520 s edan rIdge Wners anual dc W IrIng cHemaTIcs . 09-601 draWIng no . 21.1) 520 Sedan Bridge...
  • Page 32 520 s edan rIdge Wners anual dc W IrIng cHemaTIcs . 09-601 draWIng no . 22.1) 520 Sedan Bridge...
  • Page 33 520 s edan rIdge Wners anual dc W IrIng cHemaTIc . 09-601 draWIng no . 23.1) 520 Sedan Bridge...
  • Page 34 520 s edan rIdge Wners anual dc W abIn IrIng cHemaTIc . 09-602 draWIng no . 24.1) 520 Sedan Bridge...
  • Page 35 520 s edan rIdge Wners anual dc W abIn IrIng cHemaTIc . 09-602 draWIng no . 25.1) 520 Sedan Bridge...
  • Page 36 520 s edan rIdge Wners anual egaTIve roundIng and ondIng cHemaTIc . 09-603 draWIng no . 26.1) 520 Sedan Bridge...
  • Page 37 520 s edan rIdge Wners anual ysTem onITor cHemaTIc . 09-605 draWIng no . 27.1) 520 Sedan Bridge...
  • Page 38 520 s edan rIdge Wners anual Qsm-II W/s ngIne arness cHemnaTIc ummIns marTcrafT . 09-606 draWIng no . 28.1) 520 Sedan Bridge...
  • Page 39 520 s edan rIdge Wners anual ablemasTer emoTe . 09-608 draWIng no . 29.1) 520 Sedan Bridge...
  • Page 40 520 s edan rIdge Wners anual HrusTer cHemaTIc oWer . 09-609 draWIng no . 30.1) 520 Sedan Bridge...
  • Page 41 520 s edan rIdge Wners anual Indlass cHemaTIc . 09-614 draWIng no . 31.1) 520 Sedan Bridge...
  • Page 42 520 s edan rIdge Wners anual eneraTor cHemaTIc Iesel . 09-617 draWIng no . 32.1) 520 Sedan Bridge...
  • Page 43 520 s edan rIdge Wners anual olTage IrIng Iagram . 09-618 draWIng no . 33.1) 520 Sedan Bridge...
  • Page 44 520 s edan rIdge Wners anual ac W (240vac) IrIng cHemaTIc . 09-630 draWIng no . 34.1) 520 Sedan Bridge...
  • Page 45 520 s edan rIdge Wners anual ac W (240vac) IrIng cHemaTIc . 09-630 draWIng no . 35.1) 520 Sedan Bridge...
  • Page 46 520 s edan rIdge Wners anual ac W (220/50) IrIng cHemaTIc . 09-632 draWIng no . 36.1) 520 Sedan Bridge...
  • Page 47 520 s edan rIdge Wners anual ac s (220/50) ysTem IrIng cHemaTIc . 09-632 draWIng no . 37.1) 520 Sedan Bridge...
  • Page 48 520 s edan rIdge Wners anual ac s Qsm-II) ysTem IrIng Iagram ummIns . 09-635 draWIng no . 38.1) 520 Sedan Bridge...
  • Page 49 520 s edan rIdge Wners anual ac s ysTem IrIng Iagram nTernaTIonal PTIon . 09-635 draWIng no . 39.1) 520 Sedan Bridge...
  • Page 50 520 s edan rIdge Wners anual gfcI (rcd) c omPonenTs IrIng Iagram . 09-637 draWIng no . 40.1) 520 Sedan Bridge...
