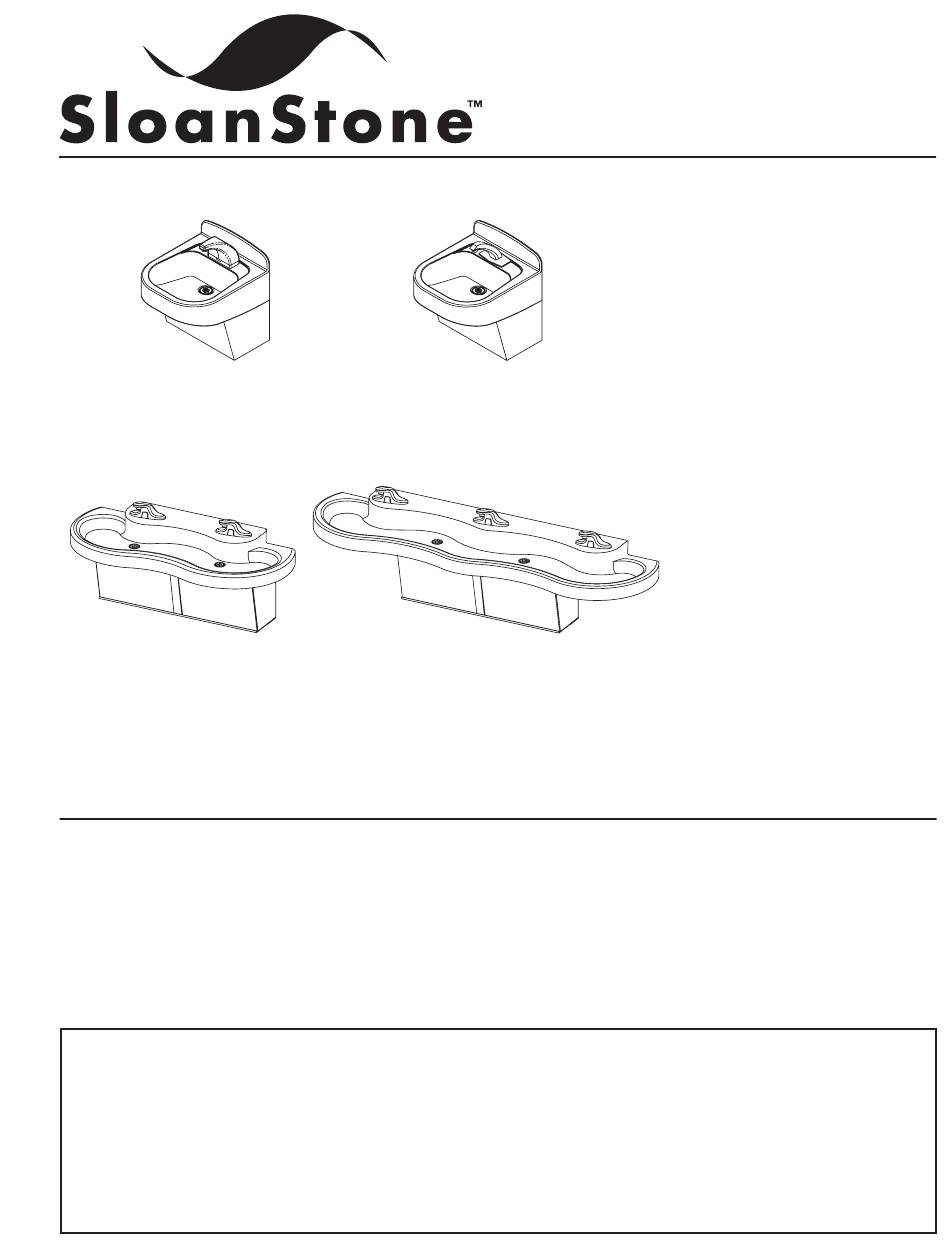

ELS-41000-A
Single Station
Solid Surface Lavatory System
With SloanStone Faucet
ELS-42000
Double Station
Solid Surface Lavatory System
Installation of SloanStone ELS-40000 Series Solid Surface, sensor operated
lavatory systems make wash-up totally "hands-free," providing the ultimate in
sanitary protection and automatic operation. The lavatory systems use infrared
technology to sense the user's presence and turn on a water supply that has been
pre-mixed to the desired water temperature. When the user's hands are removed
from the invisible beam of light, the water supply automatically turns off.
SloanStone ELS-40000 Series Lavatory Systems can be hardwire or battery
powered.
SloanStone ELS-40000 Series Lavatory Systems are designed for easy
installation and maintenance. All system components are pre-plumbed and
Sloan Valve Company warrants its SloanStone ELS-40000 Series Lavatory Systems to be made of first class materials, free from defects of material or workmanship
under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a
period of three years (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or
parts which prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No
claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve
Company's products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries (for battery powered lavatory
systems).
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
SINGLE, DOUBLE AND TRIPLE STATION
SOLID SURFACE LAVATORY SYSTEMS
ELS-41000-B
Single Station
Solid Surface Lavatory System
ELS-43000
Triple Station
Solid Surface Lavatory System
assembled at the factory. SloanStone ELS-40000 Series Lavatory Systems come
complete with Optima sensors (including 24 VAC solenoid valves and
transformer or batteries), spray heads, and can be supplied with juvenile height
cabinet, thermostatic mixing valve and soap dispenser.
The following instructions will serve as a guide when installing the SloanStone
Lavatory System. As always, good safety practices and care are recommended
when installing your new Lavatory System. If further assistance is required,
contact your nearest Sloan Representative office or the Sloan Installation
Engineering Department.
LIMITED WARRANTY
ELS-40000 Series I.I. — Rev. 0 (02/03)
INSTALLATION INSTRUCTIONS
SENSOR OPERATED
ELS-41000
Single Station
Sensor Operated
Solid Surface Lavatory System
ELS-42000
Double Station
Sensor Operated
Solid Surface Lavatory System
ELS-43000
Triple Station
Sensor Operated
Solid Surface Lavatory System
Made in the U.S.A.
Code No. 0816546
Advertisement
Table of Contents
Related Manuals for SloanStone ELS-40000 Series
Summary of Contents for SloanStone ELS-40000 Series
- Page 1 LIMITED WARRANTY Sloan Valve Company warrants its SloanStone ELS-40000 Series Lavatory Systems to be made of first class materials, free from defects of material or workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year for special finishes) from date of purchase.
- Page 2 LAVATORY SYSTEM ROUGH-IN Single Station Lavatory System MODEL ELS-41000 — 0.5 gpm (1.9 Lpm) Max. — Aerator LAVATORY SYSTEM WEIGHT (Empty) — 60 Lbs. (27 Kg) Side View Single Basin Side View Standard Height Cabinet Double Station Lavatory System Double and Triple Basin MODEL ELS-42000 —...
-
Page 3: Prior To Installation
CONTROL MODULE WILL RESULT IF 24 VAC WIRES TOUCH EACH OTHER OR SHORT WHEN POWER SUPPLY IS ACTIVE. Prior to installing the SloanStone ELS-40000 Series Lavatory System, install the items listed below. Also, refer to the appropriate rough-in diagram on pages 2 and 3. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Step 1 — Cabinet or Mounting Bracket Installation LEFT BACK PANEL RIGHT BACK PANEL Remove plastic protective coating from all stainless parts before installation. Measure and mark vertical centerline of lavatory system on wall. Determine desired Cabinet height. Using rough-in diagrams on Pages 2 and 3, identify the type of Cabinet or Mounting Bracket being installed. -
Page 5: Operation
Step 7 — Supply Power to Lavatory System TERMINAL BLOCK For hardwire installations, make sure that power is off to the transformer prior to MOUNTING making connections. Run power wires from Transformer to Terminal Block as BRACKET illustrated. Use wire ties to secure wiring. Once all wiring within the system is connected, supply power to the Transformer. -
Page 6: Hardware Kit
PARTS LIST Hardware Kit 4” WIRE TIE WRAP ¼-20 x 7/8” ¼-20 x 4” THREADED ROD COUPLING NUT ¼-20 x 1½” ¼-20 TINNERMAN FASTENER 4 WAY WIRE TIE BASE ¼-20 x 1” FASTENER ¼-20 WING NUT ¼-20 x 1” AERATOR KEY TT30 PINNED TORX FASTENER (FLAT HEAD)
