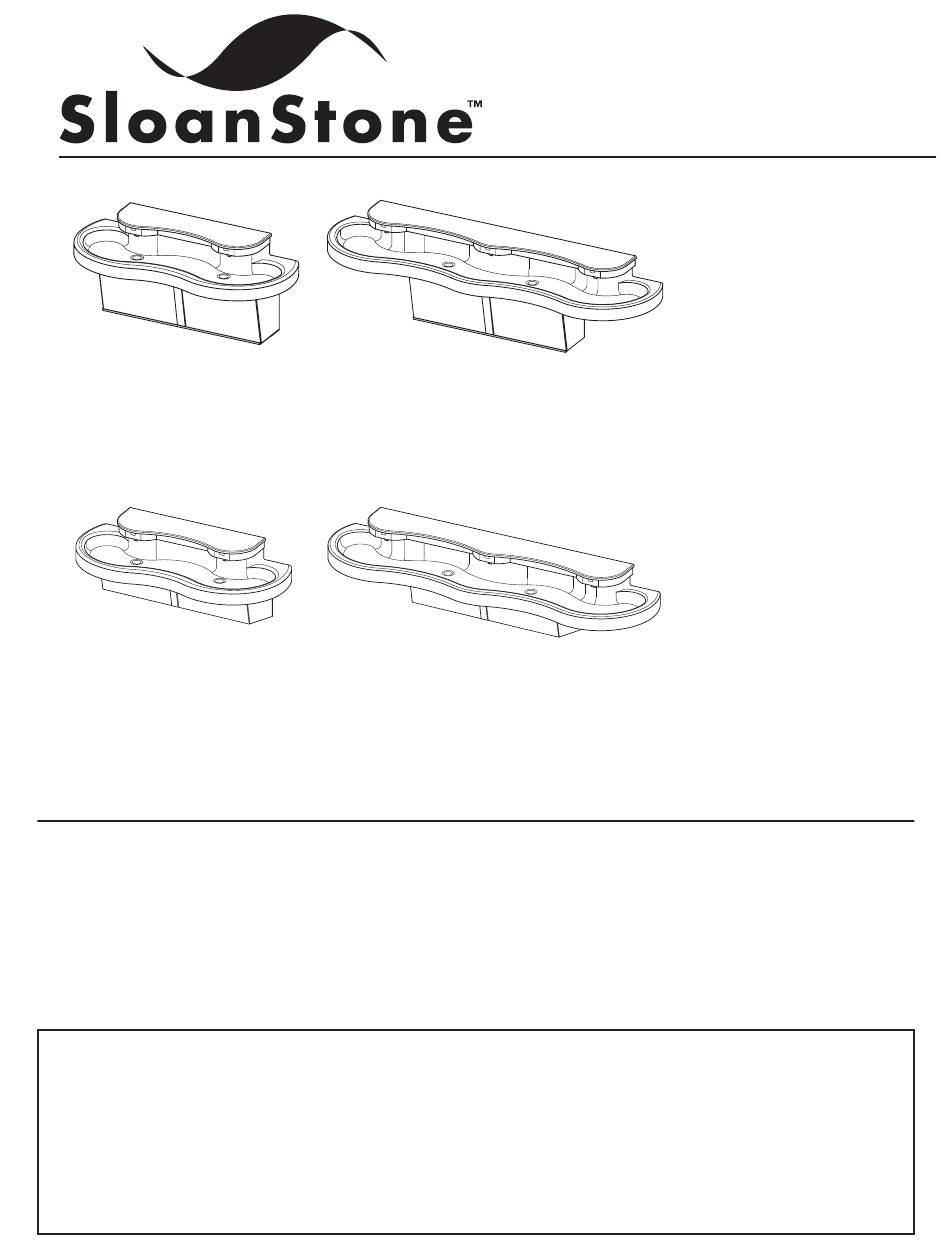

EW-42000
Double Station
Solid Surface Lavatory System
EW-42000
Double Station
Solid Surface Lavatory System
(with Juvenile Height Cabinet)
Installation of Sloan Optima EW-40000 Series Solid Surface, sensor operated
lavatory systems make wash-up totally "hands-free," providing the ultimate in
sanitary protection and automatic operation. The lavatory systems use infrared
technology to sense the user's presence and turn on a water supply that has been
pre-mixed to the desired water temperature. When the user's hands are removed
from the invisible beam of light, the water supply automatically turns off.
Optima EW-40000 Series Lavatory Systems are designed for easy installation
and maintenance. All system components are pre-plumbed and assembled at the
factory. Optima EW-40000 Series Lavatory Systems come complete with Optima
Sloan Valve Company warrants its Optima EW-40000 Series Lavatory Systems to be made of first class materials, free from defects of material or workmanship
under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a
period of three years (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or
parts which prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No
claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve
Company's products directly from Sloan Valve Company for purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
SOLID SURFACE LAVATORY SYSTEMS
EW-43000
Triple Station
Solid Surface Lavatory System
EW-43000
Triple Station
Solid Surface Lavatory System
(with Juvenile Height Cabinet)
sensors (including 24 VAC solenoid valves and transformer), spray heads, and
can be supplied with juvenile height cabinet, thermostatic mixing valve and soap
dispenser.
The following instructions will serve as a guide when installing the Sloan Optima
Lavatory System. As always, good safety practices and care are recommended
when installing your new Lavatory System. If further assistance is required,
contact your nearest Sloan Representative office or the Sloan Installation
Engineering Department.
LIMITED WARRANTY
EW-40000 Series I.I. — Rev. 0 (02/03)
DOUBLE AND TRIPLE STATION
SENSOR OPERATED
EW-42000
Double Station
Sensor Operated
Solid Surface Lavatory System
EW-43000
Triple Station
Sensor Operated
Solid Surface Lavatory System
Made in the U.S.A.
Advertisement
Table of Contents
Related Manuals for SloanStone EW-42000
Summary of Contents for SloanStone EW-42000
- Page 1 EW-40000 Series I.I. — Rev. 0 (02/03) INSTALLATION INSTRUCTIONS DOUBLE AND TRIPLE STATION SENSOR OPERATED SOLID SURFACE LAVATORY SYSTEMS EW-42000 Double Station Sensor Operated Solid Surface Lavatory System EW-43000 EW-43000 EW-42000 Triple Station Double Station Triple Station Solid Surface Lavatory System...
- Page 2 LAVATORY SYSTEM ROUGH-IN Double Station Lavatory System MODEL EW-42000 — 0.5 gpm (1.9 Lpm) Max. — Aerator LAVATORY SYSTEM WEIGHT (Empty) — 190 Lbs. (86 Kg) Juvenile Height Cabinet Standard Height Cabinet Triple Station Lavatory System MODEL EW-43000 — 0.5 gpm (1.9 Lpm) Max. — Aerator LAVATORY SYSTEM WEIGHT (Empty) —...
- Page 3 PRIOR TO INSTALLATION • DO NOT PLUG TRANSFORMER INTO POWER SOURCE (RECEPTACLE) UNTIL ALL WIRING IS COMPLETED. PERMANENT DAMAGE TO THE Prior to installing the Sloan Optima EW-40000 Series Lavatory System, install the TRANSFORMER AND CIRCUIT CONTROL MODULE WILL RESULT IF 24 items listed below.
- Page 4 Step 3 — Basin and Actuator Housing Assembly ACTUATOR ASSEMBLY Slide two ¼”-20 Tinnerman nuts into two center slots on top flange of Cabinet. Note: nuts should be approximately in center of slots. With the help of an assistant, carefully lift Basin onto Cabinet aligning mounting holes in Basin with Tinnerman nuts of Cabinet.
- Page 5 Step 7 — Start-Up Turn on water supply to lavatory system. Check for leaks at water supply and drain lines. Repair any leaks. With Aerator removed, activate Spray Head for 30 seconds by standing in front of the Spray Head. The Solenoid Valve should "click," Sensor LED indicator should blink and water should flow from the Spray Head.
- Page 6 PARTS LIST Hardware Kit ¼-20 x 4” ¼-20 x 7/8” 4” WIRE TIE WRAP THREADED ROD COUPLING NUT ¼-20 x 1½” FASTENER ¼-20 TINNERMAN 4 WAY WIRE TIE ¼-20 x 1” BASE FASTENER ¼-20 x 1” FASTENER ¼-20 WING NUT (FLAT HEAD) TT30 PINNED TORX AERATOR KEY...
