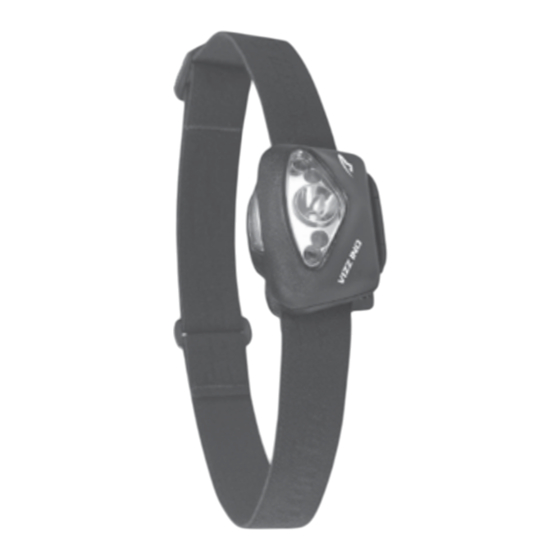

Princeton Tec VIZZ INDUSTRIAL Operating And Maintenance Instructions

ENGLISH:
Battery Installation – See Figure 1
3AAA
• Alkaline (LR03)
• Lithium (L92)
• Rechargeable NiCad or NiMH
Princeton Tec cares about the environment
and recommends recycling batteries. For more
information about battery recycling, please go to
www.batteryrecycling.com.
Observe proper battery polarity. Improper
installation of the batteries will damage the light
and void the warranty.
!
WARNING
• Never mix fresh and used batteries.
• Never mix different battery brands or chemistry
types.
• Always remove drained batteries immediately.
• Remove batteries during long periods of
storage.
Note: Lithium batteries offer extended constant
brightness time, extreme
performance, and lighter weight. Rechargeable
NiCad or NiMH batteries may result in reduced
brightness due to lower nominal voltage.
The Vizz batter compartment has a waterproof
seal. It is important to keep this seal free from
dirt and away from harsh chemicals in order
to preserve waterproof integrity. Inspect the
seal every time batteries are changed. If dirt is
present, wipe gently with a damp cotton swap
and mild soap until dirt is removed.
FOR CALIFORNIA RESIDENTS:
WARNING: This product contains Bisphenol
A (BpA) a chemical known to the State of
California to cause birth defects or other
reproductive harm.
Switch Operation – See Figure 2
A single press turns on Maxbright (spot) mode.
Ultrabright (flood) mode is selected by holding
button. Ultrabright mode starts at the highest
intensity level; intensity decreases until button
is released. If button is held down continuously,
light intensity will scroll down and back up until
button is released. If another brightness level is
desired after button has been released, holding
button will resume scrolling though Ultrabright
LED (flood) intensity levels.
A single press occurring more than two
seconds after the previous button press will
turn the light off.
Figure 1 – Battery Replacement
1
Figure 2 – Switch Operation
SINGLE PRESS
MAXBRIGHT LED
SINGLE PRESS
TURNS LIGHT OFF
• Princeton Tec calculates total burn time as the time it takes for the light source to produce a minimum of
0.25 lux at 2 meters. 0.25 lux is about the equivalent of a full moon on a clear night.
• Princeton Tec berechnet die Gesamtbrenndauer bezogen auf eine von der Stirnlampe erzeugte
minimale Beleuchtungsstärke von 0,25 Lux in 2 Meter Abstand. 0,25 Lux entsprechen in etwa der
Beleuchtungsstärke des Vollmonds in einer klaren Nacht.
• Princeton Tec définit la durée totale d'éclairage comme le temps nécessaire à la source lumineuse pour
produire un minimum de 0,25 lux à 2 mètres. 0,25 lux équivaut à peu près à la luminosité d'une pleine
lune dans un ciel nocturne dégagé.
Troubleshooting
If the Vizz fails to light:
• Check the batteries for proper installation.
• Replace batteries if proper installation is
cold weather
confirmed.
• Check circuit board for water (the seal may
have been compromised by improper rear
cover installation or dirty seal). The light will
resume normal operation once the water is
shaken or blown out and the light is left open
until completely dry. If the light has been
contaminated with salt water, flush the unit
with fresh water and dry as described above.
USA Limited Lifetime Warranty –
International 10 Year Warranty
Due to International regulations, Princeton
Tec's lifetime warranty can only be offered to
customers in the USA. Princeton Tec offers a
10-year warranty to our customers outside the
USA.
FULL WARRANTY - Princeton Tec warrants
this product to be free from defects in
workmanship and materials under normal
use for as long as you own this product. This
warranty covers all of the component parts of
the product except batteries. This warranty does
not cover deterioration due to normal wear or
damage due to misuse, alteration, negligence,
accidents, or unauthorized repair. Princeton Tec
will repair or replace parts which are defective
in workmanship or materials. Your authorized
Princeton Tec Dealer and Princeton Tec are the
only facilities authorized to repair the product.
After (3) unsuccessful attempts to repair the
product, you have the right to elect replacement
of the product or a refund of the purchase price
Remplacement des piles
2 3
Modes de fonctionnement
HOLD
WHITE ULTRABRIGHT
(HIGH)
2 MODES
S P O T Total 95 H, Regulated 1H
FLOOD BRIGHT T. 104 H, R. 6 H
FLOOD DIM
T. 108 H, R. 14 H
DISTANCE
0 10
(METERS)
*Output distances and burn times are approximate
*Todos los tiempos de iluminación y las distancias son aproximados
*Todos los tiempos de iluminación y las distancias son aproximados
less allowance for use of the product. NO
INCIDENTAL OR CONSEQUENTIAL DAMAGES
ARE INCLUDED INTHIS WARRANTY. (Some
states do not allow the exclusion or limitation
of incidental or consequential damages, so the
above limitations or exclusions may not apply
to you.) This warranty gives you specific legal
rights, and you may also have other rights which
vary from state to state.
Princeton Tec reserves the right to change
product specifications without notice.
Return Policy
If your light fails to operate, follow these
simple steps:
1. Check batteries. Replace if necessary.
2. To send your light in for repair or replacement,
first contact Princeton Tec customer service
on 1-800-257-9080 to request an RMA
number. Please have your light model, date
of purchase and a brief description of the fault
you are experiencing. No warranty repairs
will be accepted without an RMA number.
3. Return the light without batteries to:
Princeton Tec, PO Box 8057 Trenton NJ
08650. Postage due and freight collect items
will not be accepted.
4. Upon receipt your light will be processed in
about two weeks. Please allow additional
time for return transportation from NJ.
Princeton Tec
PO Box 8057
Trenton, NJ 08650
Phone: 609-298-9331
Fax: 609-298-9601
www.princetontec.com
© 2016 Princeton Tec
Batteriewechsel
4
Schalterbetätigung
(LOW)
BEAM DISTANCE
78 m 78 m 17 m
36 m 36 m 14 m
10 m 10 m 10 m
39
78 0 H 0.5 H 10 H
Time
