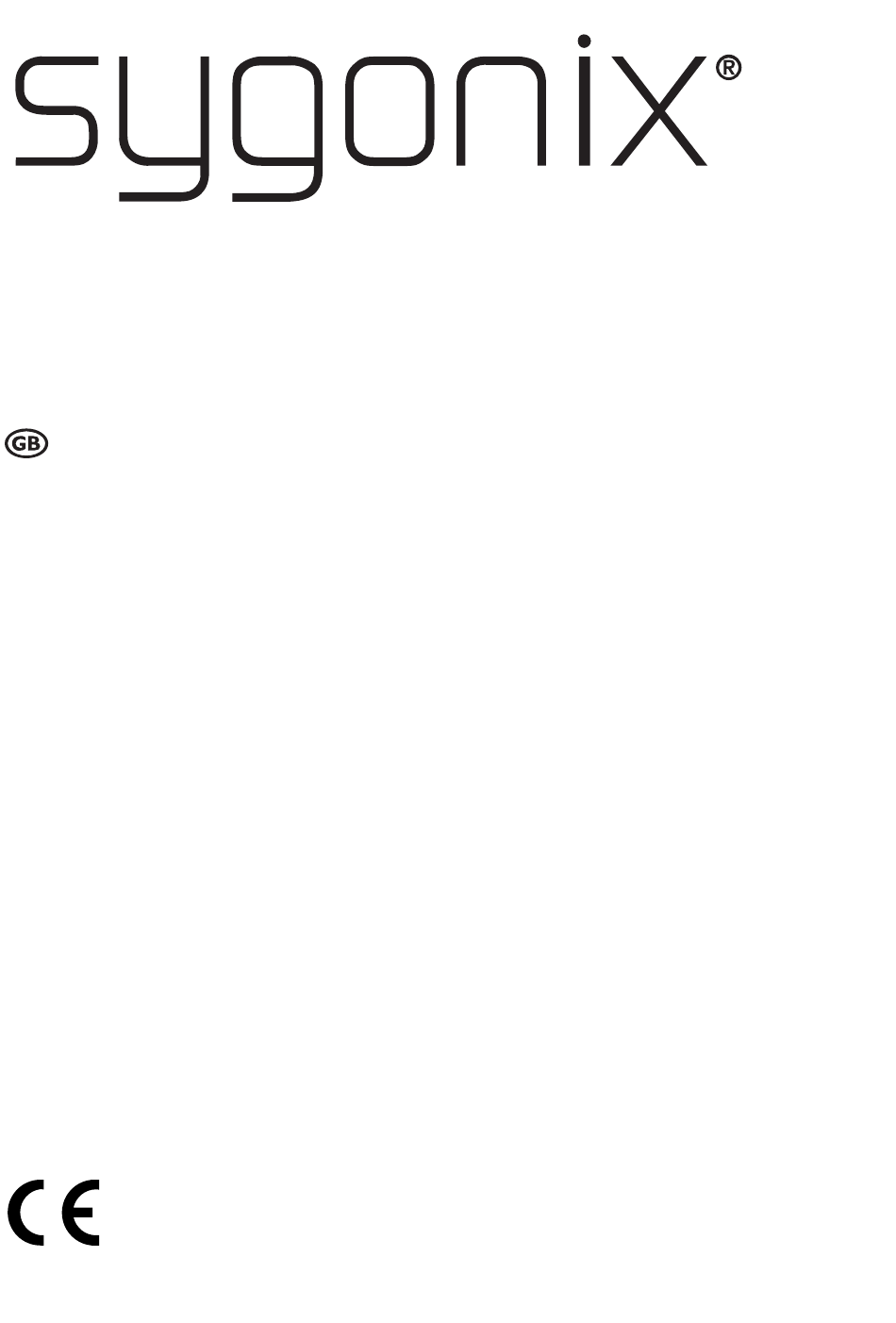

- Page 1 Installation Instructions Smart Bluetooth Door Lock Item no: 3060830...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................Product documentation................Intended use..................... Delivery contents ..................Description of symbols................Safety instructions ..................General..................Handling ..................Operating environment..............Operation..................Battery..................Installation ..................Product overview ..................Door lock ..................Installation....................Product dimensions..............Installing the door lock..............Declaration of Conformity (DOC).............. -
Page 3: Introduction
1 Introduction Thank you for purchasing this product. If there are any technical questions, please contact: www.conrad.com/contact 2 Product documentation The product is documented by different sets of instructions: ■ Installation instructions ■ Operating instructions (for download only) Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the instructions (or new/current versions if available). -
Page 4: Delivery Contents
The product is dust-protected according to IP5X. The product is intended for indoor use only. Do not use it outdoors. Contact with moisture must be avoided under all circumstances. If you use the product for purposes other than those described, the product may be damaged. -
Page 5: Safety Instructions
The symbol warns of hazards that can lead to personal injury. 6 Safety instructions Read the installation instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling, we assume no liability for any resulting personal injury or damage to property. -
Page 6: Battery
■ If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. DO NOT attempt to repair the product yourself. Safe operation can no longer be guaranteed if the product: –... -
Page 7: Product Overview
7 Product overview 7.1 Door lock Component Description/Notes/Action Outer door handle Password confirmation key After you enter a password/PIN, press the key to confirm your entry and unlock the door. Keypad Enter passwords/PINs. RFID smart card reader Place smart key cards onto the reader to unlock the door. - Page 8 Component Description/Notes/Action Indicator light The indicator flashes red if an incorrect password/PIN is used. Cylinder Inner door handle ■ USB-C® port If the battery is depleted, supply emer- gency power via a 5 V/DC USB-C® power supply. ■ The USB-C® port is not a charging port. Key hole Insert the mechanical key and turn the key clockwise to unlock.
-
Page 9: Installation
8 Installation 8.1 Product dimensions Dimension 30 mm 30 mm 60 mm... -
Page 10: Installing The Door Lock
8.2 Installing the door lock Note: Many door lock configuration settings rely on an internet connection. If the door lock installation location does not provide internet connectivity, add the door lock to the mobile app and configure the door lock before you install it. Step 1: Remove the inner door handle 1. - Page 11 1. Adjust the width of the cylinder to the thickness of the door. 2. Secure the cylinder in the door.
- Page 12 Step 3: Secure the inner door handle 1. Slide the inner door handle [A] onto the cylinder [B]. 2. Secure the inner door handle with the grub screw [C] that you removed in step Step 4: Install the battery 1. Prepare a CR123A battery. 2.
-
Page 13: Declaration Of Conformity (Doc)
Step 5: Configure the door lock Configure the door lock by referring to the operating instructions. 9 Declaration of Conformity (DOC) Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU directive. ■ Click on the following link to read the full text of the EU declaration of conform- ity: www.conrad.com/downloads Enter the product item number in the search box. -
Page 14: Rechargeable) Batteries
End users are responsible for deleting personal data from the WEEE to be dis- posed of. It should be noted that different obligations about the return or recycling of WEEE may apply in countries outside of Germany. 10.2 (Rechargeable) batteries Remove batteries/rechargeable batteries, if any, and dispose of them separately from the product. - Page 15 Installation Suitable door thickness .... 35 - 60 mm Cloud connectivity Mobile app........ Tuya Smart Life/Smart Living Password authentication (PIN) Default password...... 123456 Supported password type..Numeric (PIN) Password length....... 6 - 10 digits Max. registered passwords..100 Smart card authentication Smart card technology....
- Page 16 Operating temperature .... -20 to +50 °C Operating humidity ....10 – 90 % RH (non-condensing) Storage temperature ....-20 to +50 °C Storage humidity ...... 10 – 90 % RH (non-condensing) Dimensions (W x H x D) (ap- prox.) ........42 x 42 x 140 mm Weight (approx.) ......
- Page 20 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
