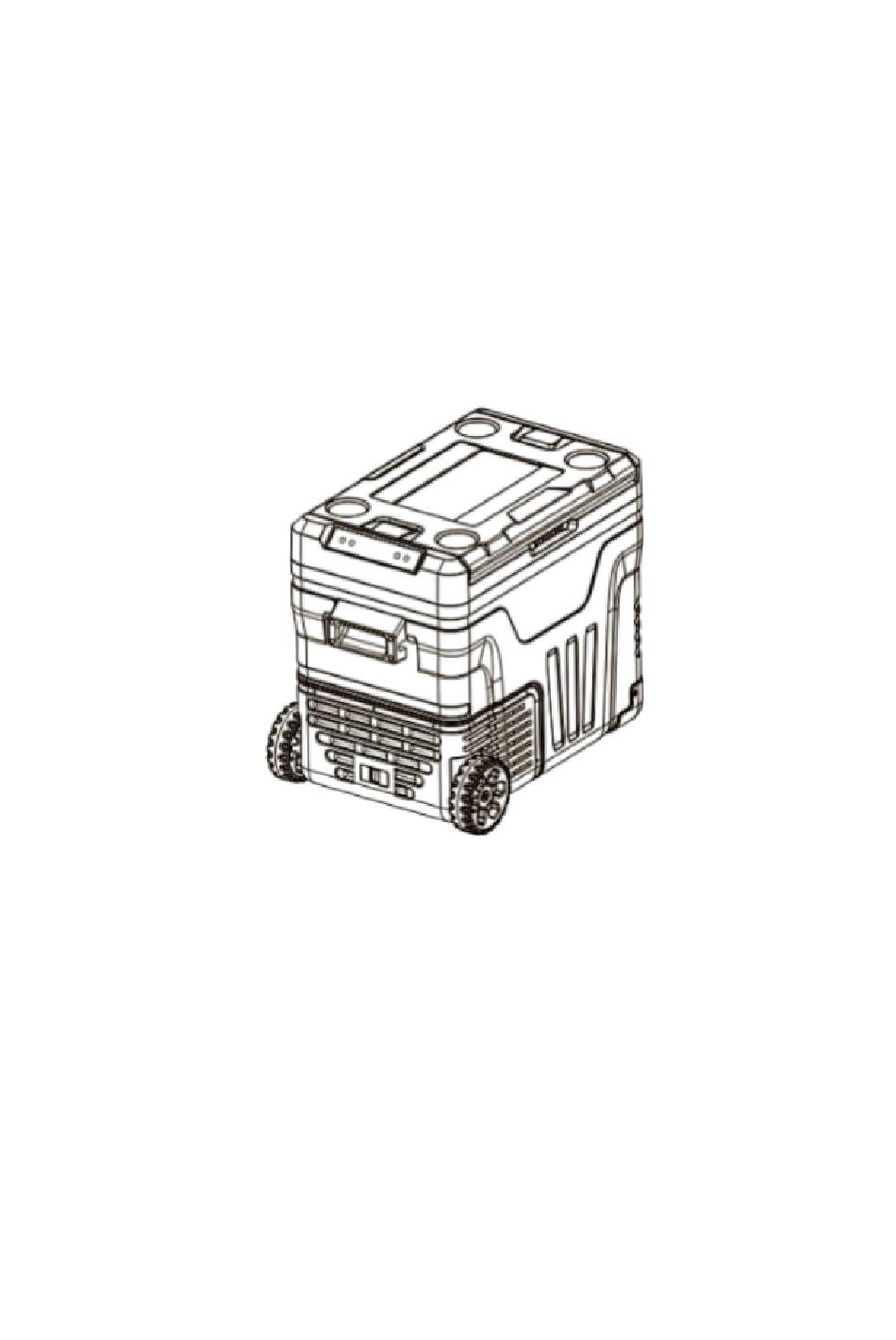

- Page 1 Adexa CATERING EQUIPMENT DIRECT Vehicle refrigerator and freezer INSTRUCTION MANUAL Model: ZBD-50 To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance. NINGBO HICON INDUSTRY TECHNOLOGY CO., LTD...
-
Page 2: Table Of Contents
Content Product Feature................Tips for energy savings..............Important Safety instruction..................Disposal of your unit ..................Name of the parts ...................... Specification ......................How to run the unit..................Warning..................... Starting to run the unit................Operation panel function............... How to operate the unit................Start the unit.................. -
Page 3: Product Feature
PRODUCT FEATURE Cooled by High efficiency DC compressor, high reliability, high life, high energy efficiency, and quick cooling speed. Fresh mode and freeze mode can be convertible, foaming door, camping environmental looking, elegant design, easy operating. Pull-rod and big size wheel design, suit for outdoor floor moving. ... - Page 4 Do not use an extension cord as this can negatively affect the performanc of the unit. If you mustuseanextensioncord, use 18AWG minimumsizeand rated no lessthan 1875watts. When transporting the refrigerator, keep the unit in the upright position. Do not tilt the ...
-
Page 5: Name Of The Parts
–Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. –Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. –One-, two-and three-star compartments are not suitable for the freezing of fresh food. -
Page 6: Specification
SPECIFICATIONS ZBD-50 Model No. Capacity Climate Type SN/ N/ST Star Rating 2-star Electrical Safety Class 220-240V ~ DC12V DC24V Power Supply 50/60Hz (by Car (by Car Cigarette lighter) Cigarette lighter) Electrical Rating 6.0A 3.5A 0.8A Refrigerant R600a Cyclopentane Foaming agent Net Weight 16.4㎏... -
Page 7: How To Run The Unit
HOW TO RUN THE UNIT WARNING! Do not operate the cooling device if it is visibly damaged. If the power cord of cigarette lighter or AC/DC adapter is damaged, it must be replaced by the customer service in order to prevent safety hazards. Never pull the power cord to disconnect the unit from an outlet. -
Page 8: Operation Panel Function
Remove the packaging material. Clean the unit thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist cloth. Check that the voltage specification on the rating label corresponds to that of the power supply. Connect the your unit as follows: --- Connect the DC cigarette lighter (Fig. -
Page 9: How To Operate The Unit
RUN LED ligh t: This is two colors light, when the unit is off-state with DC power on, it will be RED color lighting, and when the uni is turned on and compressor is running, it will be GREEN color lighting. ℃... - Page 10 In “H3” level, the battery monitor responds faster than at the level “H1” and “H2” . Monitor Level H1 (LOW) H2 (MIDDEL) H3 (HIGH) Switch-off voltage 9.6V 10.2V 11.2V Restart voltage 10.9V 11.4V 12.4V Switch-off voltage 21.3V 22.3V 24. 1V Restart voltage 22.7V 23.7V...
-
Page 11: Error Code Display
return to the actual temperature display. Then the selected mode will be remembered. （3）Temperature unit centigrade and Fahrenheit change During compressor running mode “ HH” or “ ECO” flashing in the display window, again short SET ” ℉ press the “ button ，the temperature unit “℃”... -
Page 12: Defrost Your Unit
Defrost your unit If you set the unit at freezing mode with lower temperature, the ice will accumulate on the inner wall of the storage compartment with unit running for a long period. When the ice is over about 2” thickness, need to perform the defrosting operation to improve the cooling efficiency. Follow below steps to melt the ice: 1. -
Page 13: Troubleshooting
Troubleshooting Fault Possible cause Suggested remedy No voltage was detected in the DC In most vehicles the cigarette power supply. ignition port must be turned on before power supplied to the DC The unit does not function, LED power outlet. light does not glow. -
Page 14: Warranty
Warranty The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year, starting from the date on which the appliance is sold to the end user. The warranty only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre.
